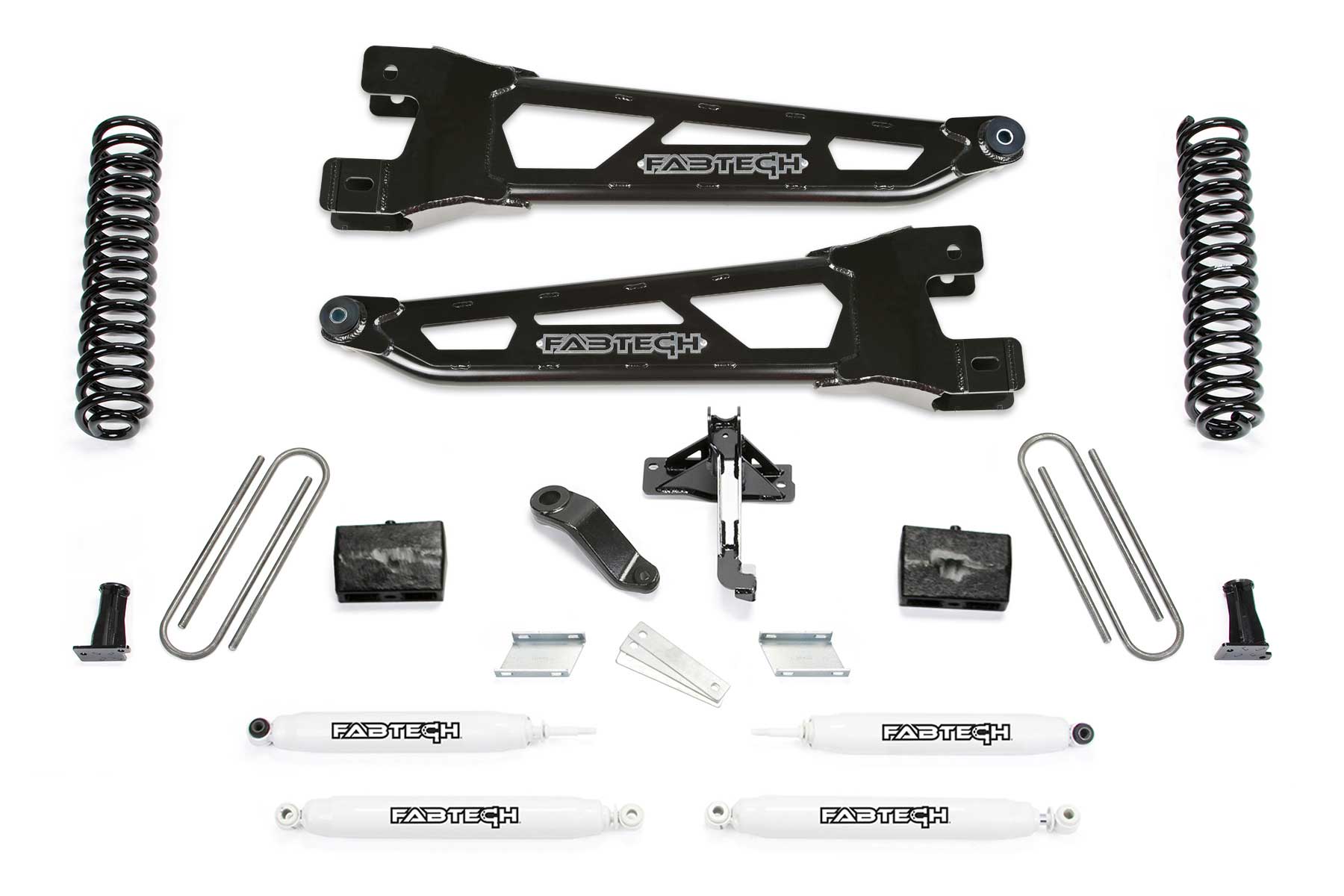

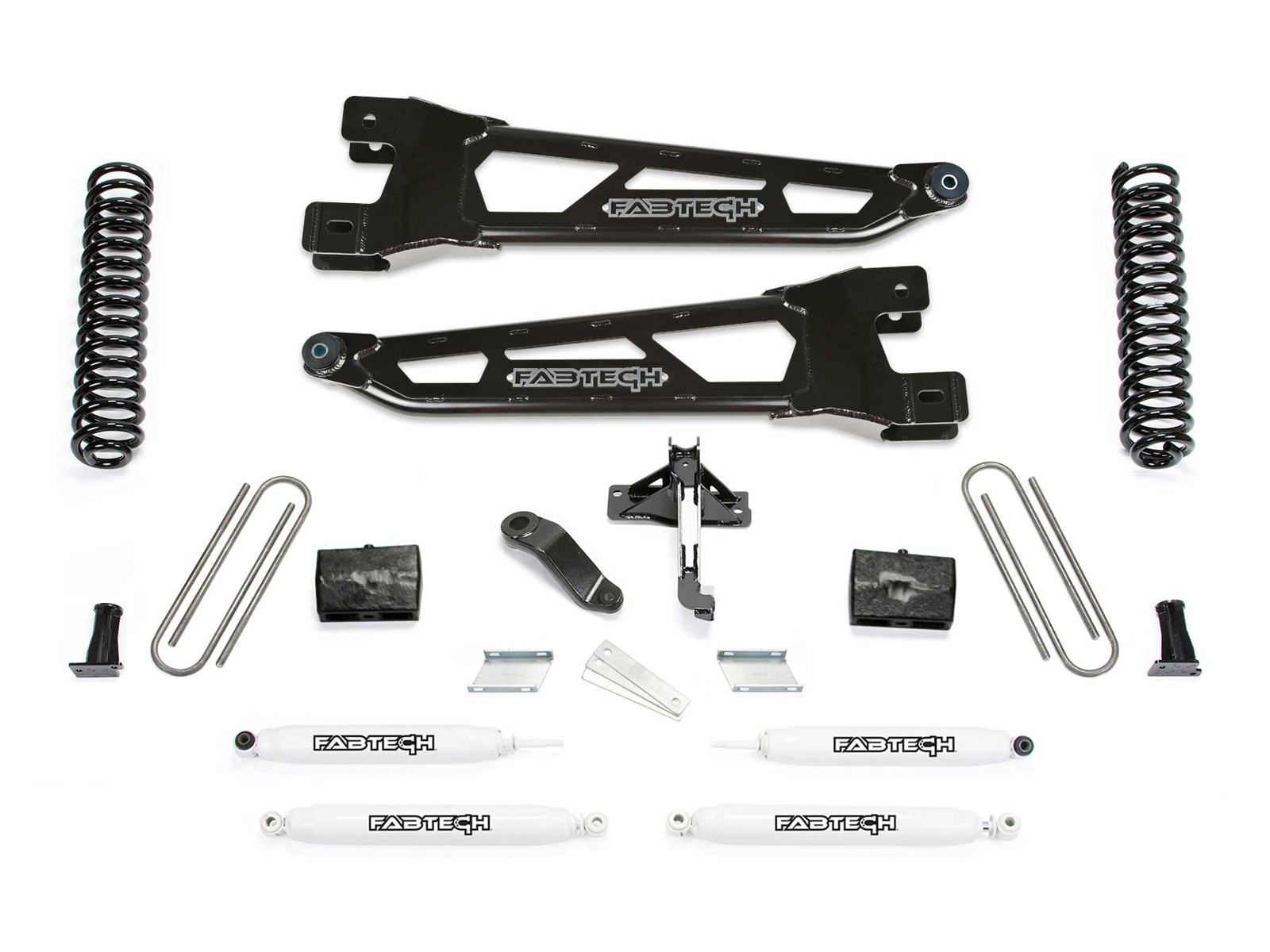

Fabtech K2429 6-Inch Radius Arm Lift System with Coils and Performance Shocks

Manufacturer

Part Number

K2429
Black Friday Price

$2,630.77

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Fabtech's 6-inch Radius Arm lift kit has been engineered specifically for the 2023-2025 Ford F450/F550 Super Duty 4WD diesel trucks to handle demanding on-road and off-road applications. This system delivers a heavy-duty upgrade to the factory suspension with additional strength and capability.

Tubular Radius Arms:

The heart of this lift kit is Fabtech's legendary tubular radius arms, featuring a tubular structure design that combines extensive off-road racing heritage with smooth, compliant driving characteristics for superior strength on rugged terrain and everyday drivability. The arms are offset for full turning radius with 12.50-inch wide tires on 5-inch backspace wheels, and include adjustable alignment cams that allow for an additional 1.5 degrees of caster adjustment.

Key Components Include:

  • Hot-wound replacement coil springs designed for compliant ride quality on and off-road, preset during manufacturing to prevent ride height settling, allowing 2 inches of increased wheel travel over stock when used with Fabtech shocks
  • Heavy-duty 1/4-inch thick steel track bar relocation bracket that repositions the factory track bar to center the axle, with box-style construction to eliminate deflection
  • Forged steel pitman arm with high-strength material exceeding factory specifications, designed to work with the factory drag link and track bar bracket
  • Heavy-duty 1/4-inch thick bump stop extension brackets to prevent over-cycling of the suspension
  • Front sway bar drop brackets for proper link end cycling throughout extended travel range
  • Brake line relocation brackets that reposition factory brake lines without opening the brake system
  • Steering stabilizer bracket with support brace to retain stock Ford stabilizer and reduce tire shimmy

Performance Shocks:

This kit includes Fabtech Performance Shocks engineered specifically for this suspension system, featuring high-velocity 9-stage valving for excellent dampening capabilities and a closed-cell insert to reduce shock fade at high speeds. Shocks feature twin-tube hydraulic construction, 9/16-inch hardened chrome piston rod, 1-3/8-inch OD piston, and high-flow 9-stage valving.

The heavy-duty track bar relocation bracket and new pitman arm center the front axle under the vehicle, allowing full lock steering of 12.50-inch wide tires on 5-inch backspacing wheels. Upgraded suspension components install in place of factory parts without drilling or modifying the factory suspension.
