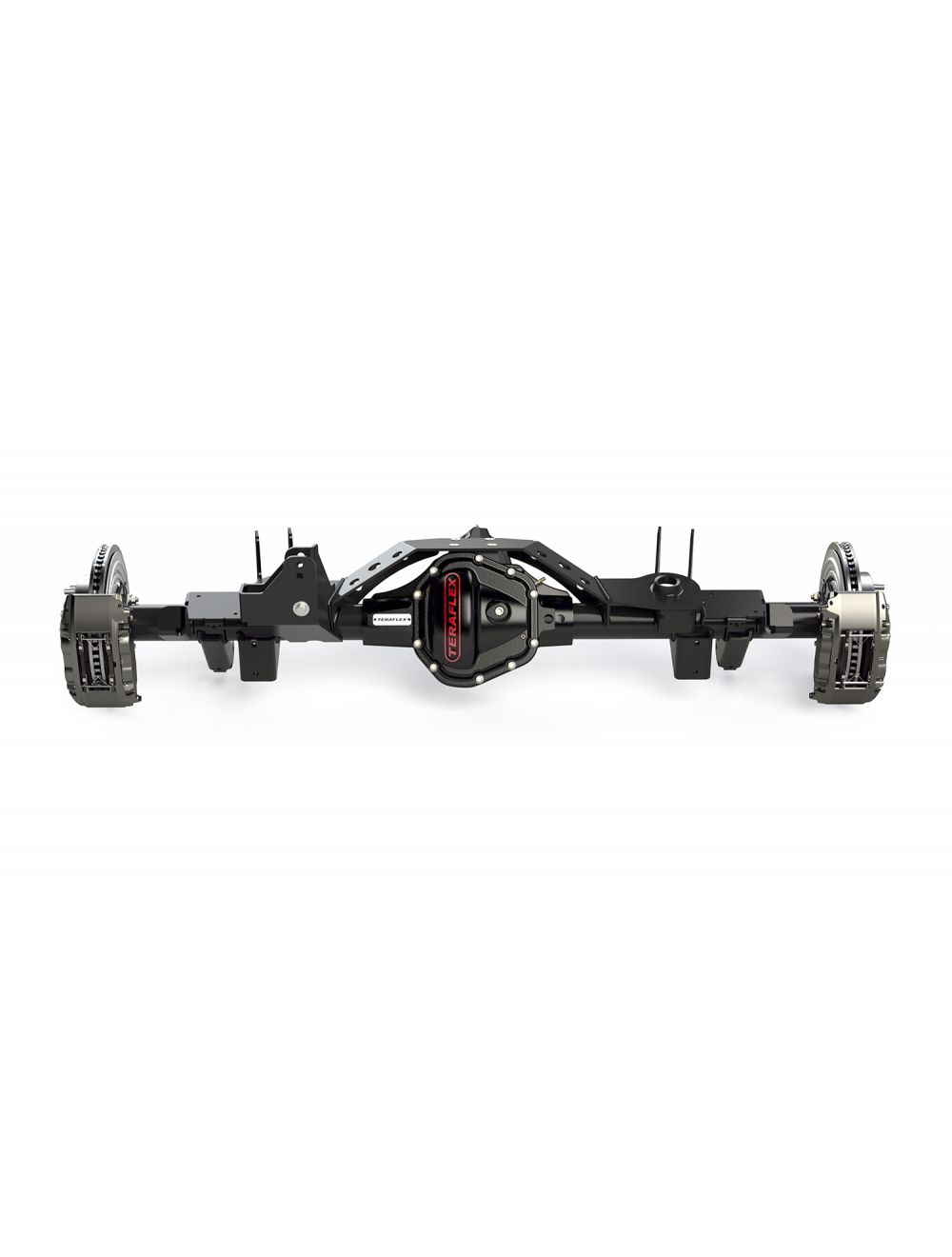

TeraFlex 4171488 TeraCRD60 HD Semi-Float Rear Axle Assembly 68 Inch 4.88 R&P ARB Locker 0-6 Inch Lift

(2020-2025 Jeep Gladiator)

Manufacturer

Part Number

4171488
Black Friday Price

$6,462.99

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TeraFlex TeraCRD60 HD Rear Axle Assembly (MPN: 4171488) is a complete, loaded rear axle solution for the Jeep Gladiator JT, featuring a pre-installed 4.88 Spicer Super 60 ring & pinion, an ARB Air Locker, and a semi-float axle shaft configuration. Built on TeraFlex's proven heavy-duty platform, this axle is engineered to handle the demands of serious off-road use and lifted suspension setups from 0 to 6 inches.

Constant Radius Design (CRD) Technology:

TeraFlex's exclusive Constant Radius Design maintains maximum ground clearance regardless of pinion angle adjustments — a critical advantage when running a lifted suspension. The housing is compatible with the full range of Spicer Super 60 gear ratios, making it equally capable in extreme-duty trail builds and high-load towing applications.

What's Included:

  • ARB Air Locker (pre-installed)
  • 4.88 Spicer Super 60 ring & pinion (pre-installed)
  • Spicer Super 60 bearings
  • Semi-float rear axle shafts
  • All necessary sensors
  • Heavy-duty axle housing with smooth profile surfaces
  • All required mount brackets and control arm bushings

Key Specifications:

  • Lift Height Compatibility: 0–6 Inch
  • WMS-WMS Width: 68 Inch
  • Axle Tube: 3.25 Inch O.D. x 0.375 Inch wall
  • Axle Splines: 40
  • Gear Ratio: 4.88
  • Locker: ARB Air Locker
  • Float Type: Semi-Float

This axle assembly is an ideal direct bolt-on replacement for bent, broken, or damaged stock rear axles in Gladiator JT models including Rubicon trims. It is also an excellent upgrade for owners looking to address the known weak points of the factory axle while gaining the locking capability and gear ratio needed for larger tires and tougher terrain.

Products specifications

Fits

2020-2025 Jeep Gladiator

Country of Origin

USA

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

NAFTA

B

Harmonized Tariff Code

8708.50

Gear Ratio

4.88 Ratio

Sold As

Each

UNIVERSAL

No

Axle

TeraCRD60

Location

Rear
