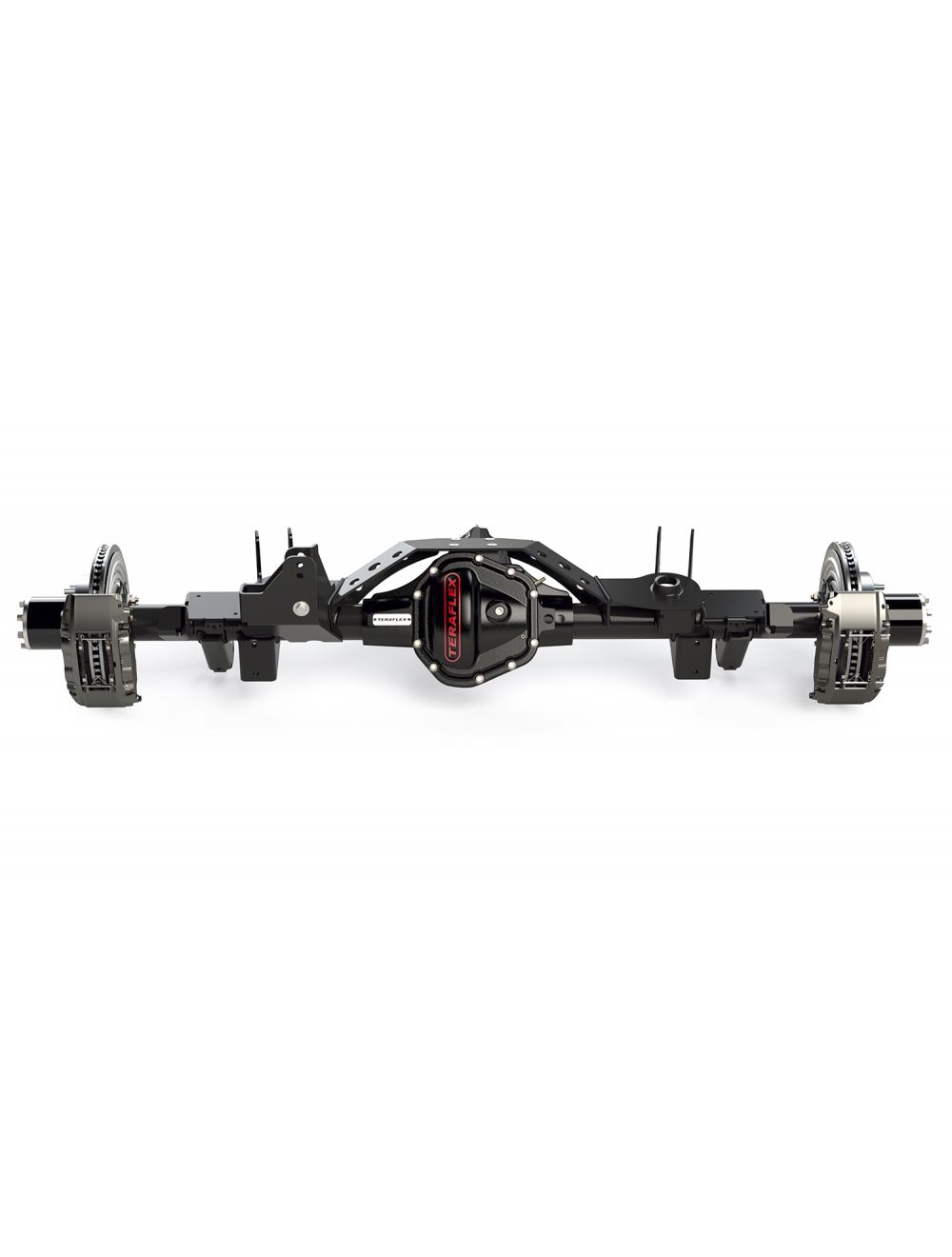

TeraFlex 4070000 70" TeraCRD60 HD Full-Float Rear Axle Assembly for Jeep Gladiator JT (0-6" Lift, No R&P/Locker/Carrier)

The TeraFlex 4070000 Tera CRD60 HD Rear Axle Assembly is an unloaded, full-float 70-inch rear axle housing engineered for the Jeep Gladiator JT with 0–6 inches of lift. This heavy-duty assembly ships ready to accept your choice of ring & pinion gear ratio, locker, and carrier, giving you the flexibility to build the drivetrain exactly the way you want it.

TeraFlex's exclusive Constant Radius Design (CRD) maintains consistent, high ground clearance regardless of pinion angle adjustments—a critical advantage during suspension travel on the trail. The housing is compatible with all Super 60 gear ratios, making it equally at home in extreme-duty rock crawling applications as it is on daily-driven rigs.

The CRD60 HD axle housing is an ideal solution for replacing bent, broken, or damaged factory axles on JT Gladiator models including Rubicon editions, and serves as a direct bolt-on upgrade for owners who want to eliminate the weak points of the stock rear axle.

What's Included:

• Spicer Super 60 bearings and install kits
• 35-spline full-float outer stub shafts
• 35-spline inner axle shafts
• 1350 series pinion yoke
• Delta Brake Kit – Rear
• Dana 60 / Tera CRD60 Differential Cover Kit (Part #3990660)
• All necessary mount brackets, control arm bushings, and sensors

Key Specifications:

• Wheel-to-Wheel Width (WMS-WMS): 70 inches
• Axle Tube: 3.25-inch O.D. x 0.375-inch wall
• Wheel Bolt Pattern: 8 x 6.5 inches
• Gear Ratio: Not included (sold separately)
• Lift Compatibility: 0–6 inches

The heavy-duty axle housing features smooth profile surfaces, heavy-gauge axle tubes, and all required mounting hardware, making it a turnkey housing solution for serious off-road builds.
