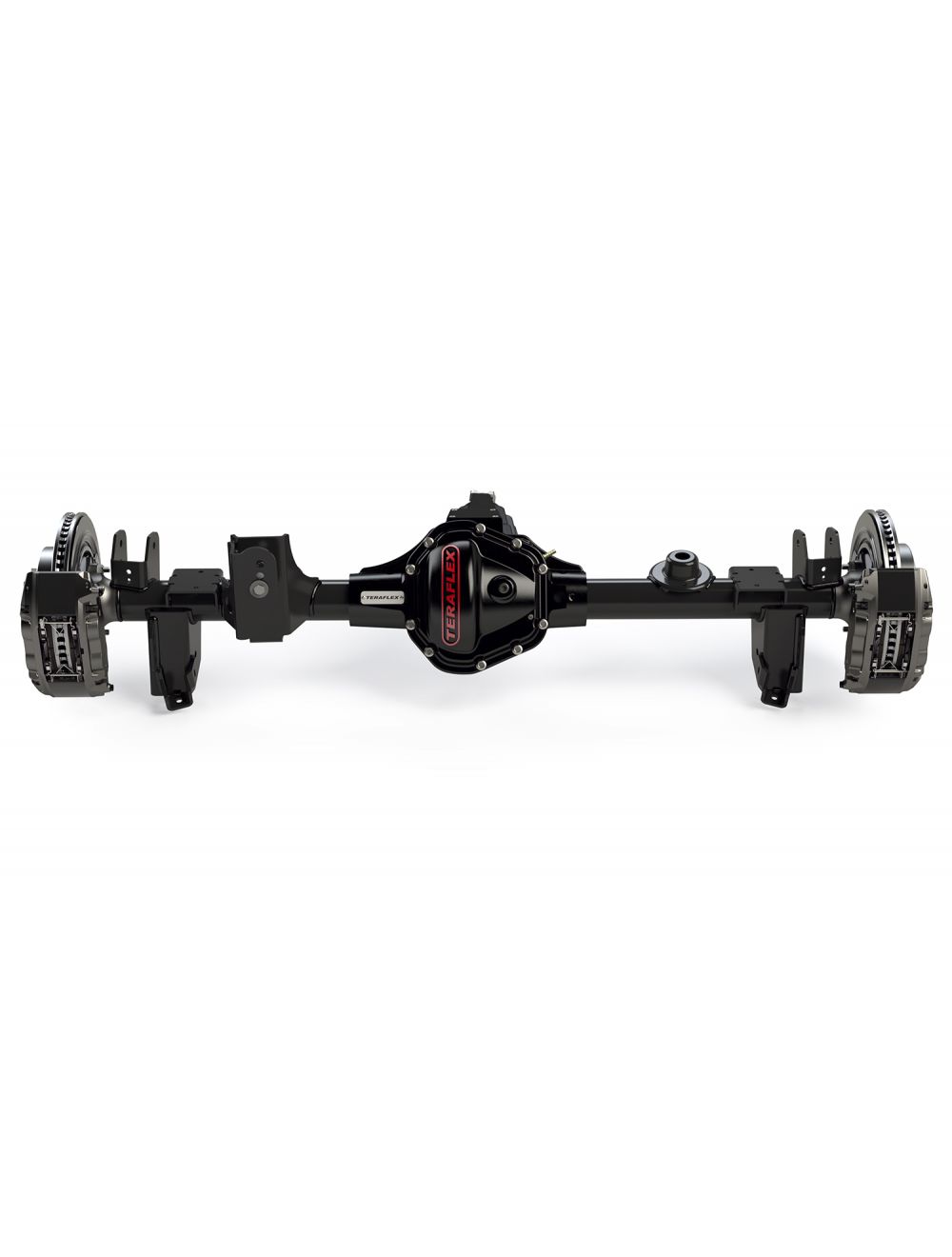

The TeraFlex TeraCRD60 HD Rear Axle Assembly is a premium replacement and upgrade axle engineered specifically for 2018 and newer Jeep Wrangler JL and JL Unlimited (including Rubicon) models. Built around Spicer Super 60 bearings and paired with semi-float rear axle shafts and integrated sensors, this axle delivers the heavy-duty strength needed for serious off-road use without compromising daily drivability.
TeraFlex's exclusive Constant Radius Design (CRD) is the cornerstone of this axle housing. Unlike conventional designs, the CRD geometry maintains consistent high ground clearance regardless of pinion angle adjustments — a critical advantage when running lift heights between 0 and 6 inches. Full compatibility with all Super 60 gear ratios makes this axle ready for the most extreme duty applications that demand superior ring and pinion strength.
This axle assembly serves dual purposes: it is an ideal direct replacement for bent, broken, or damaged stock axles, and it functions as a bolt-on upgrade for owners looking to address the known weak points of the factory Wrangler JL rear axle. The heavy-duty housing features a smooth exterior profile, reinforced axle tubes, all necessary mount brackets, and pre-installed control arm bushings for a clean, straightforward installation.
Key Features:
- Spicer Super 60 bearings for maximum load capacity and durability
- Semi-float rear axle shafts included with sensors
- Exclusive Constant Radius Design (CRD) for consistent ground clearance at any pinion angle
- Compatible with all Super 60 ring & pinion gear ratios
- Direct bolt-on fitment for JL Wrangler 2-door and Unlimited 4-door
- Heavy-duty housing with smooth profile surfaces and reinforced axle tubes
- All necessary mount brackets and control arm bushings included
- Dual bolt pattern supports 5x5 inch and 5x5.5 inch wheel configurations
Specifications:
- Lift Height Compatibility: 0–6 Inch
- WMS-WMS Width: 70 Inch
- Axle Tube O.D.: 3.25 Inch
- Axle Tube Wall Thickness: 0.375 Inch
- Axle Splines: 40
- Wheel Bolt Pattern: Dual 5x5 Inch and 5x5.5 Inch
- Gear Ratio: 5.38
Add your choice of ring & pinion gear set, locker, and carrier to complete the build. The TeraFlex TeraCRD60 HD Rear Axle is the definitive upgrade for JL Wrangler owners who demand more from their drivetrain on and off the trail.
