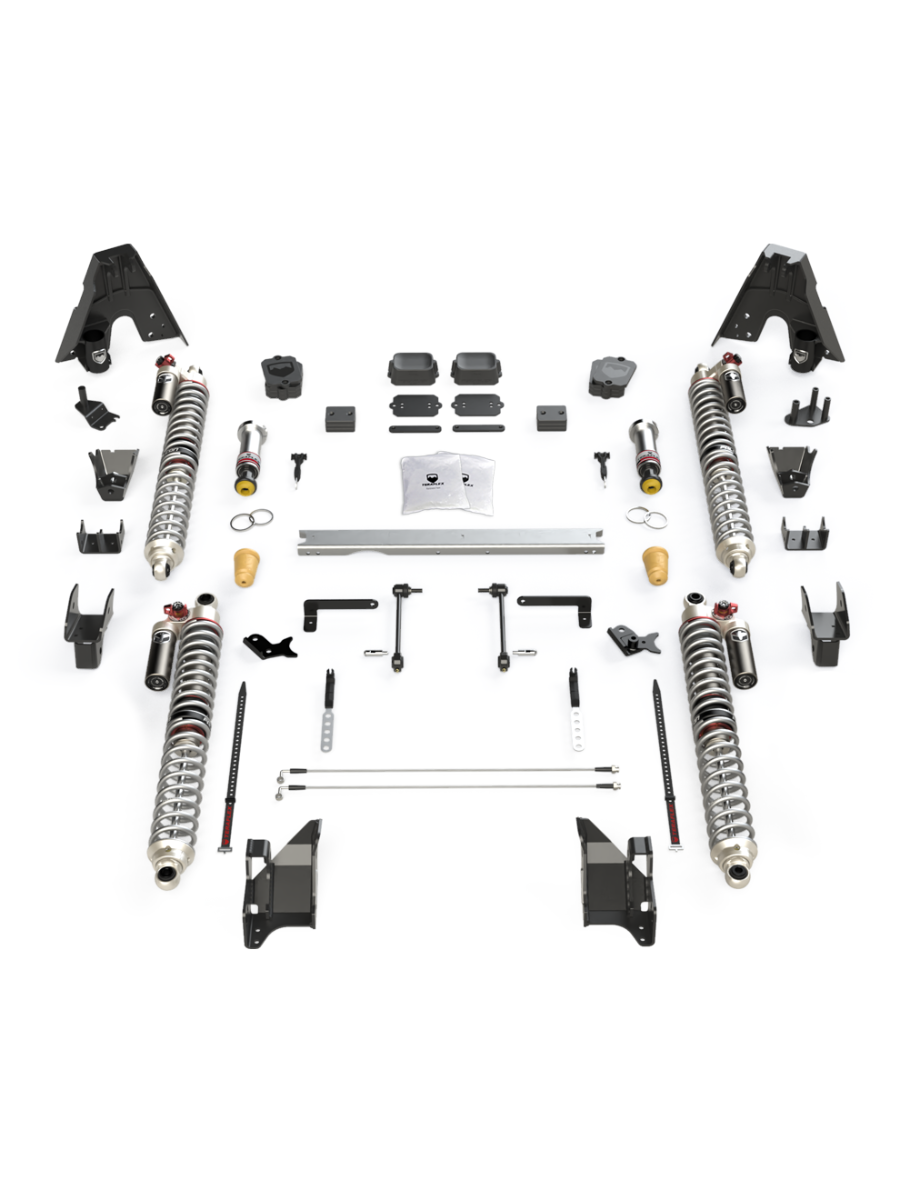

TeraFlex Suspension 1367005 Alpine RT Coilover Upgrade Kit JL - 4-Door 4XE F44/R44

(2018-2025 Jeep Wrangler)

Manufacturer

Part Number

1367005
Black Friday Price

$7,899.99

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TeraFlex 1367005 Alpine RT Coilover Upgrade Kit is a precision-engineered Falcon Shock coilover upgrade designed to work with an existing TeraFlex Long Arm Suspension System on the 4-door JL Wrangler. Purpose-built for the JL Rubicon platform, this kit accommodates each available powertrain option with vehicle-specific spring rates and shock tuning — including the 4XE plug-in hybrid drivetrain. This variant (1367005) is tuned specifically for the 4XE powertrain using Falcon 44-series front and rear coilovers (F44/R44).

The Falcon Coilover Shocks at the heart of this system have been developed to address the most common shortcomings found in the coilover market today — namely, noise. Common suspension noises such as "Spring Twang," "Zipping," "Slider Slap," and shock mount bushing squeak are all eliminated through engineering. Sealed Gimbal Bearing shock mounts provide solid, noiseless control when paired with TeraFlex coilover mounts, allowing full suspension cycling without any component contact. The hard-anodized shock body serves as a precision bearing surface for sealed, lubricated spring sliders featuring roller-bearing spring seats for quiet, smooth movement under compression and extension.

Key Features:

  • Race-inspired performance for increased vehicle stability and improved dynamic roll control
  • Advanced low-speed damping technology for improved on-road comfort and off-road performance
  • 13-inch stroke front and rear for maximum suspension travel and articulation
  • True Dual-Rate adjustable crossover for a customizable ride experience
  • 4.5-inch lift height with ±1.25-inch adjustability via quick-adjust snap rings
  • Sealed Gimbal Bearing shock mounts for utterly silent, noise-free operation
  • Hard-anodized shock body with sealed, lubricated spring sliders and roller-bearing spring seats
  • Compatible with JL Rubicon factory-width axles and Tera60 or HD axles with 3.25-inch axle tube diameter
  • 4XE powertrain-specific spring rates and tuning (F44 front / R44 rear Falcon coilovers)

Related SKUs by Powertrain — Front JL Rubicon / Rear JL Rubicon Axle:

  • 1367004 — 2.0L / 3.6L
  • 1367003 — 3.6L e-Torque
  • 1367002 — 2.0L e-Torque
  • 1367005 — 4XE (this part)
  • 1367001 — 3.0L Diesel
  • 1367006 — 392

Related SKUs by Powertrain — Front JL Rubicon / Rear HD 3.25-Inch Axle:

  • 1367014 — 2.0L / 3.6L
  • 1367013 — 3.6L e-Torque
  • 1367012 — 2.0L e-Torque
  • 1367015 — 4XE
  • 1367011 — 3.0L Diesel
  • 1367016 — 392

Related SKUs by Powertrain — Front HD 3.25-Inch / Rear HD 3.25-Inch Axle:

  • 1367024 — 2.0L / 3.6L
  • 1367023 — 3.6L e-Torque
  • 1367022 — 2.0L e-Torque
  • 1367025 — 4XE
  • 1367021 — 3.0L Diesel
  • 1367026 — 392

Important Notes: This kit requires an existing TeraFlex Long Arm Suspension System. Aftermarket wheels with 4.75-inch backspacing or less are required, or a Wheel Offset Adapter Pair (JL/JT 1.75": #1057000) for stock wheels. Front driveline "double cardan" upgrade is required. On models with plastic bumpers, removal of the bumper-to-fender wind deflector/splash guards is necessary when running 35-inch or larger tires. Not compatible with 2-door models.

Products specifications

Fits

2018-2025 Jeep Wrangler

Country of Origin

USA

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

NAFTA

B

Series

Alpine

Harmonized Tariff Code

8708.80

Sold As

Kit

UNIVERSAL

No

Doors

4 Door
