Snow Performance SNF-52700X GM Half Ton Truck Xtreme Triple Pump Fuel Hat 3-295

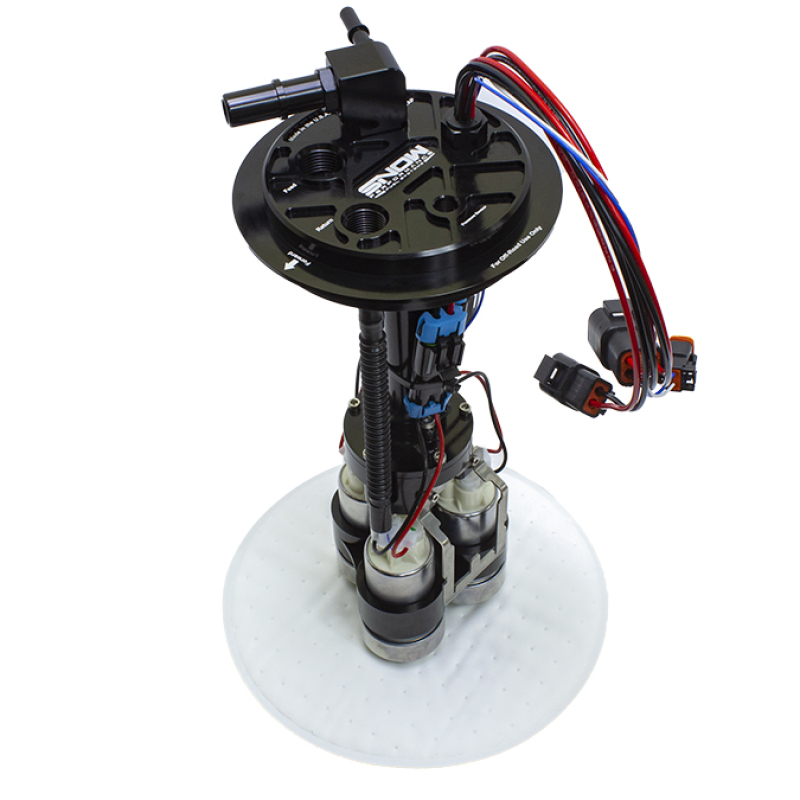

The Snow Performance SNF-52700X is an Xtreme version multi-pump fuel hat designed for 2005-2019 GM half-ton trucks requiring maximum fuel delivery capacity. This CNC machined billet aluminum fuel hat is engineered and built in the USA from 6061 aluminum, featuring three high-output 295 LPH genuine TI Automotive (Walbro) fuel pumps for extreme horsepower applications.

Key Features:

• Completely replaces factory fuel hat/bucket while retaining OE fuel level sending unit, EVAP system, filler neck, and fuel transfer pump functionality
• Features billet aluminum manifold with CNC machined passages for superior flow and reliability
• Three 295 LPH genuine TI Automotive (Walbro) fuel pumps for maximum output capability
• Black anodized finish provides ultimate durability and corrosion resistance, compatible with E85 and harsh fuels
• Female 10AN ORB feed and 8AN ORB return ports (swivel adapters sold separately)
• Viton chemical-resistant O-rings ensure leak-free operation
• Compatible with gasoline, E85, E98, and ethanol blends (not compatible with methanol)
• Designed for return-style fuel system installations only

This Xtreme configuration with three 295 LPH pumps is engineered for extreme performance applications requiring maximum fuel flow. The CNC machined design eliminates unreliable hose clamps and plastic lines that can deteriorate, providing a professional-grade fuel system upgrade for high-horsepower GM truck builds.
