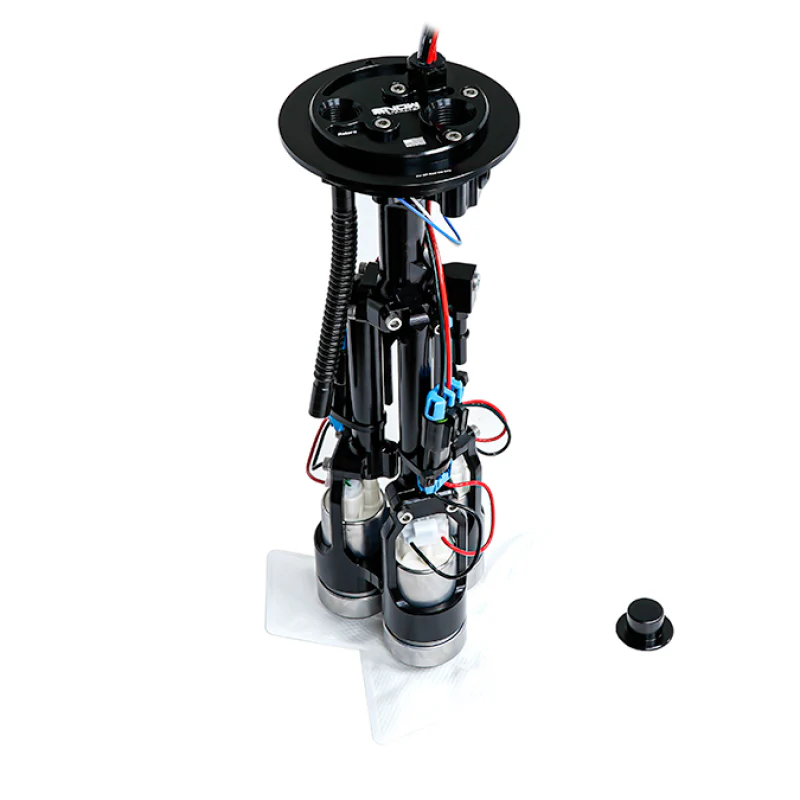

Snow Performance SNF-52100R Corvette C5/C6 Billet Fuel Hat Race Version 3-Pump

The Snow Performance SNF-52100R is a high-performance fuel hat assembly engineered for serious Corvette race builds demanding maximum fuel flow. This Race configuration features three 470lph pumps capable of supporting 1600+ rear-wheel horsepower on E85 and up to 2100 rwhp on gasoline, designed for max effort and maximum flow applications.

Premium Construction:

• Engineered, CNC machined, and built in the USA from 6061 billet aluminum
• Black anodized finish for ultimate durability and corrosion resistance, making it compatible with E85 and other harsh fuels
• Features a billet aluminum manifold with CNC machined passages, eliminating unreliable T-fittings and hose clamps
• CNC machined bodies hold fuel pumps securely with Viton chemical-resistant O-rings for a perfect leak-free fit

Advanced Fuel System Features:

• Pump sock merges all 3 pumps into 1 feed, preventing fuel starvation during performance driving when one pump's sock is in fluid but others are not
• 10-micron pre-filter feeds all 3 pumps without needing to be fully submerged and mounts directly to the pumps, eliminating bulkheads and unnecessary hardware
• Female 10AN ORB feed and 8AN ORB return ports (fittings sold separately)
• Genuine TI Automotive (Walbro) fuel pumps for OE reliability

Important Information:

• Fuel pumps are designed for return-style installation only - do not attempt to run these pumps in a returnless application
• Compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98), but NOT compatible with methanol
• Includes wiring harness for pumps and fuel level sending unit
• Does not include fuel line fittings
• Fits C5 Corvettes manufactured in 2003.5 and later with VIN # 114931 and up, which use the same style of tanks and fuel pumps as the C6 Corvette

This is the ultimate fuel delivery solution for max-effort race builds requiring uncompromising fuel flow and reliability at extreme horsepower levels.
