TeraFlex Suspension 1357026 Alpine RT Coilover System Lift JL Wrangler - 4.5 392 4-Door

(2018-2025 Jeep Wrangler)

Manufacturer

Part Number

1357026
Black Friday Price

$10,999.99

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

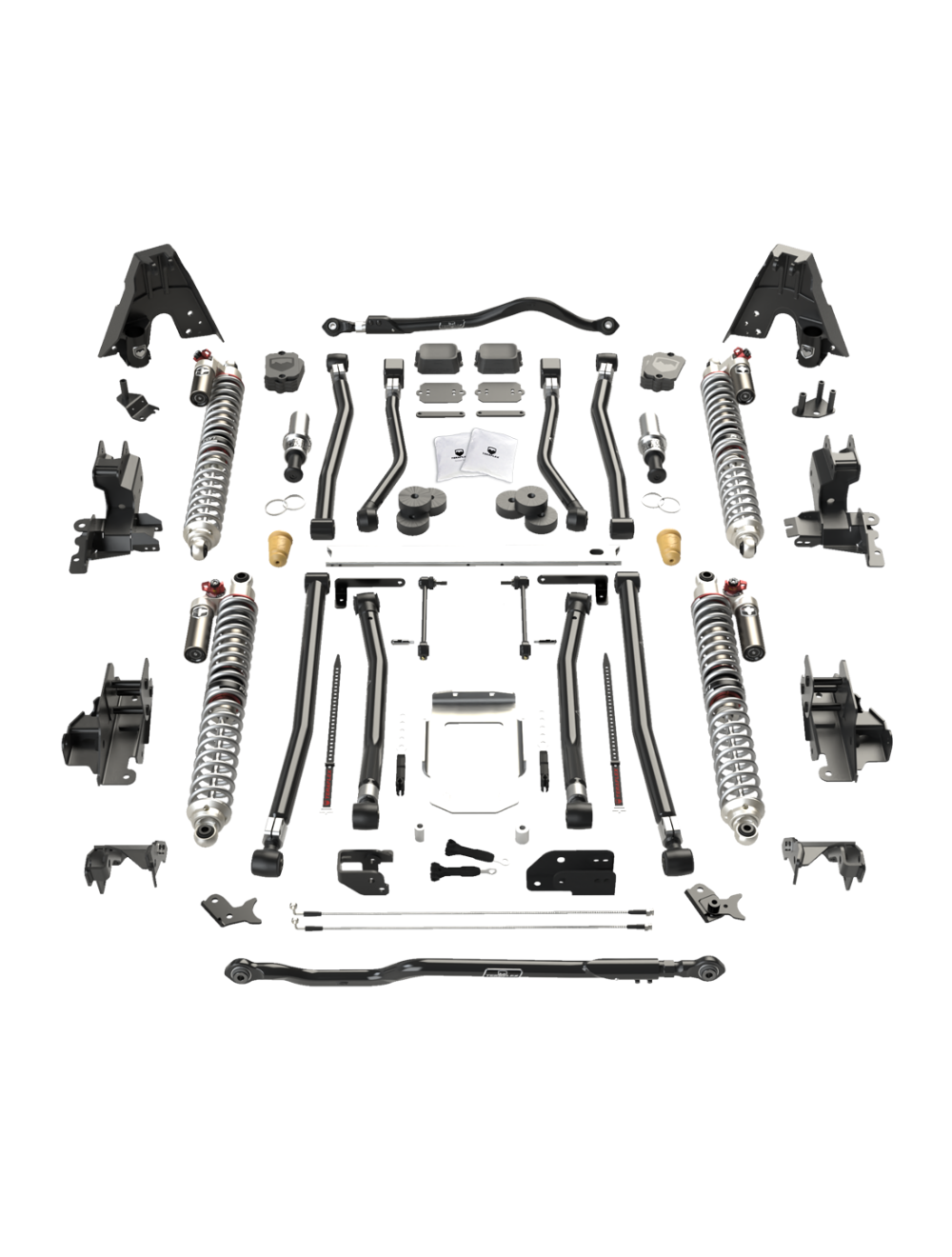

The TeraFlex Alpine RT Coilover Suspension System delivers race-inspired performance specifically engineered for 2018-up Jeep Wrangler JL Rubicon 4-door models equipped with the 392 engine. This comprehensive system features Falcon 3.3 series coilover shocks with 13-inch stroke front and rear, providing 4.5 inches of lift with adjustable height capability of +/- 1.25 inches using quick-adjust snap rings.

Silent Operation Design:

Unlike traditional coilover systems that suffer from spring twang, zipping, slider slap, and bushing squeak, the Alpine RT system is meticulously engineered for completely silent operation. Sealed gimbal bearing shock mounts combined with TeraFlex's unique coilover mount design ensure solid, noiseless control throughout full suspension cycling. The hard-anodized shock body serves as the perfect bearing surface for sealed and lubricated spring sliders with roller-bearing spring seats, guaranteeing quiet spring movement during compression, extension, and twisting.

Key Performance Features:

  • Falcon 3.3 series coilover shocks with Quick Adjust tuning specifically calibrated for the 392 powertrain
  • 13-inch stroke front and rear for maximum articulation and travel
  • Adjustable crossover for true dual-rate spring system
  • 4.5-inch lift with +/- 1.25-inch adjustability via quick-adjust snap rings
  • Improved dynamic roll control and low-speed damping for enhanced stability
  • Refreshed Speed Bumps silently provide 4X the bottoming resistance
  • RT4 Long Arm Suspension for superior control, flex, and stability
  • Coated, booted, and sealed oversized gimbal lock bearings maintain proper shock orientation
  • Designed for standard 3.0-inch diameter springs
  • Bolt-on 1/4-inch laser-cut reinforced coilover brackets

Axle Configuration:

This MPN 1357026 is specifically designed for JL Wrangler 4-door models with HD 3.25-inch diameter axles front and rear (Tera60 or equivalent), paired with the 392 engine. TeraFlex offers different SKUs for various powertrain and axle combinations to ensure optimal performance for your specific configuration.

Installation Requirements:

  • Requires wheels with 4.75-inch backspacing or less, or TeraFlex 1.75-inch Wheel Offset Adapter Pair (1057000 x 2) for stock wheels - not included
  • Front driveline double cardan upgrade required due to increased travel
  • Requires cutting and removal of factory control arm brackets and spring buckets
  • Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards
  • Some light inner fender liner trimming required
  • Professional alignment required after installation
  • Not compatible with 2-door JL models

Designed and manufactured by TeraFlex to deliver dramatic improvements in both on-road comfort and off-road performance while maintaining the quiet, refined ride quality expected in a modern Jeep Wrangler.

Products specifications

Fits

2018-2025 Jeep Wrangler

Country of Origin

USA

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

NAFTA

B

Series

Alpine

Harmonized Tariff Code

8708.80

Sold As

Each

UNIVERSAL

No

Doors

4 Door
