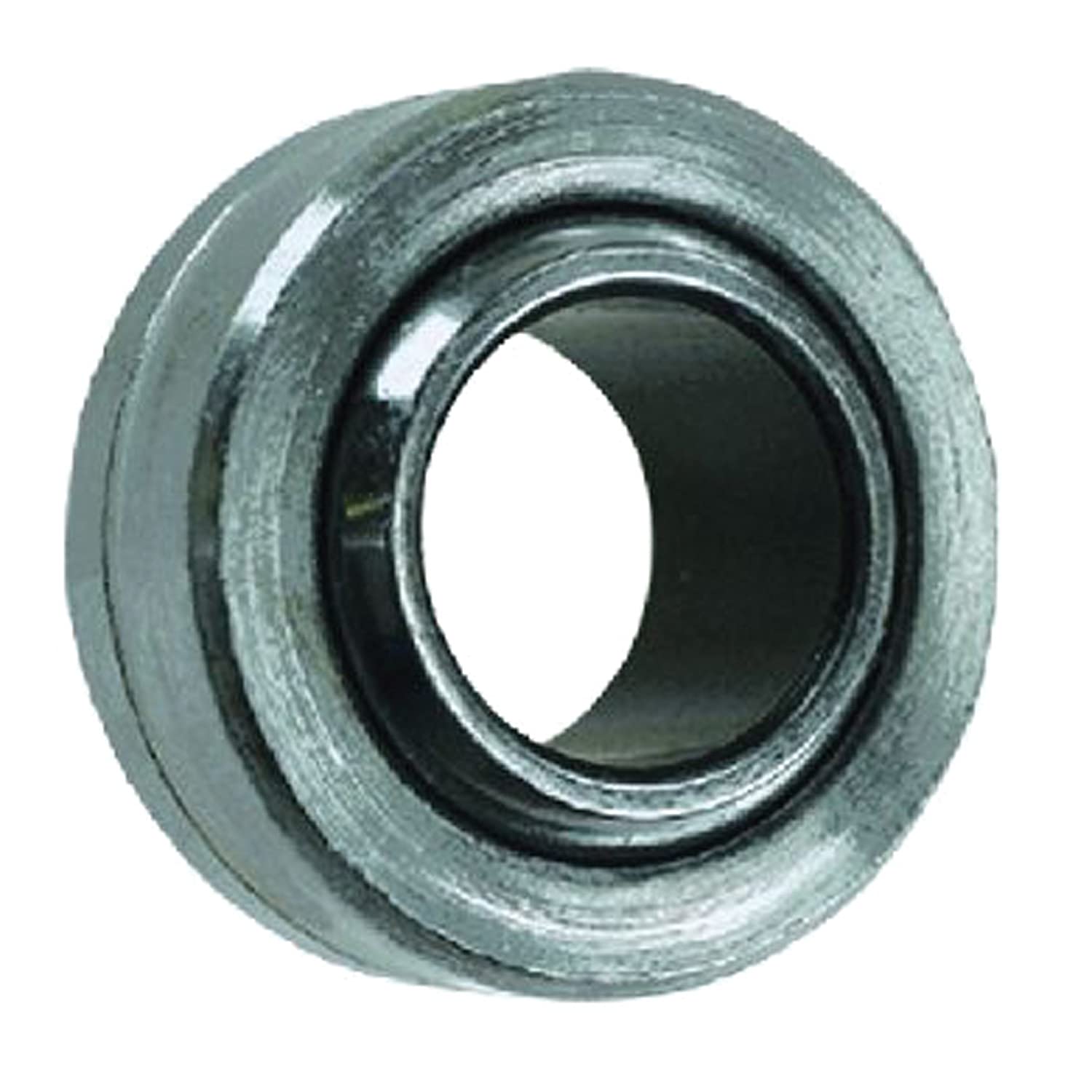

QA1 AIB16T AIB-T Series Spherical Bearing 1 in. Bore PTFE Lined Alloy Steel

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

AIB16T
9 reviews
Sale Price

$32.97

Estimated ship date Sunday, November 22

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 AIB16T is a commercial-grade AIB-T Series spherical bearing featuring a 1-inch inner bore diameter and a self-lubricating PTFE liner. Designed for performance suspension applications, this bearing delivers superior durability and smooth operation in demanding environments.

Key Features:

  • Ball: 52100 bearing steel, heat treated, precision ground, and hard chrome plated for smooth rolling and long service life
  • Race: Heat-treated alloy/chromoly steel with protective corrosion-resistant coating and oil coating for extended durability
  • Liner: Self-lubricating PTFE — eliminates the need for regular re-greasing
  • Inner Bore Diameter: 1 inch
  • Commercial grade sizing available in dimensions different from standard COM Series bearings
  • Chromoly steel construction offers better wear characteristics than traditional carbon steel counterparts

The AIB16T spherical bearing is an ideal upgrade or replacement for suspension linkages, control arms, and other high-load pivot points where low maintenance and reliable performance are critical.

Products specifications

Approx Bearing Weight

0.79

B (+0.0015/-0.005)

1

Ball Dia Ref

1.875

Chamfer Reference

0.060 in.

D (+0.0000/-0.0007)

2.125

Inner Ball Diameter (in.)

1.0000 in.

Inner Ball Width (in.)

1.375 in.

M Cham Ref

0.06

Misalign Angle

15

Notes

Alloy steel.

O Flat Dia Ref

1.275

Quantity

Sold individually.

Race Width (in.)

1.000 in.

Receiver Race Diameter (in.)

2.1250 in.

Rod End Ball Diameter (in.)

1.875 in.

Rod End Bearing Material

Steel

Rod End Misalign Angle (degrees)

15 degrees

T (+/-0.005)

1

ULT. Static Radial Load (lbs.)

90,000 lbs.

UTL Radical Static

90000

W (+0.000/-0.005)

1.375

Title

QA1 Suspension Bearing AIB16T
