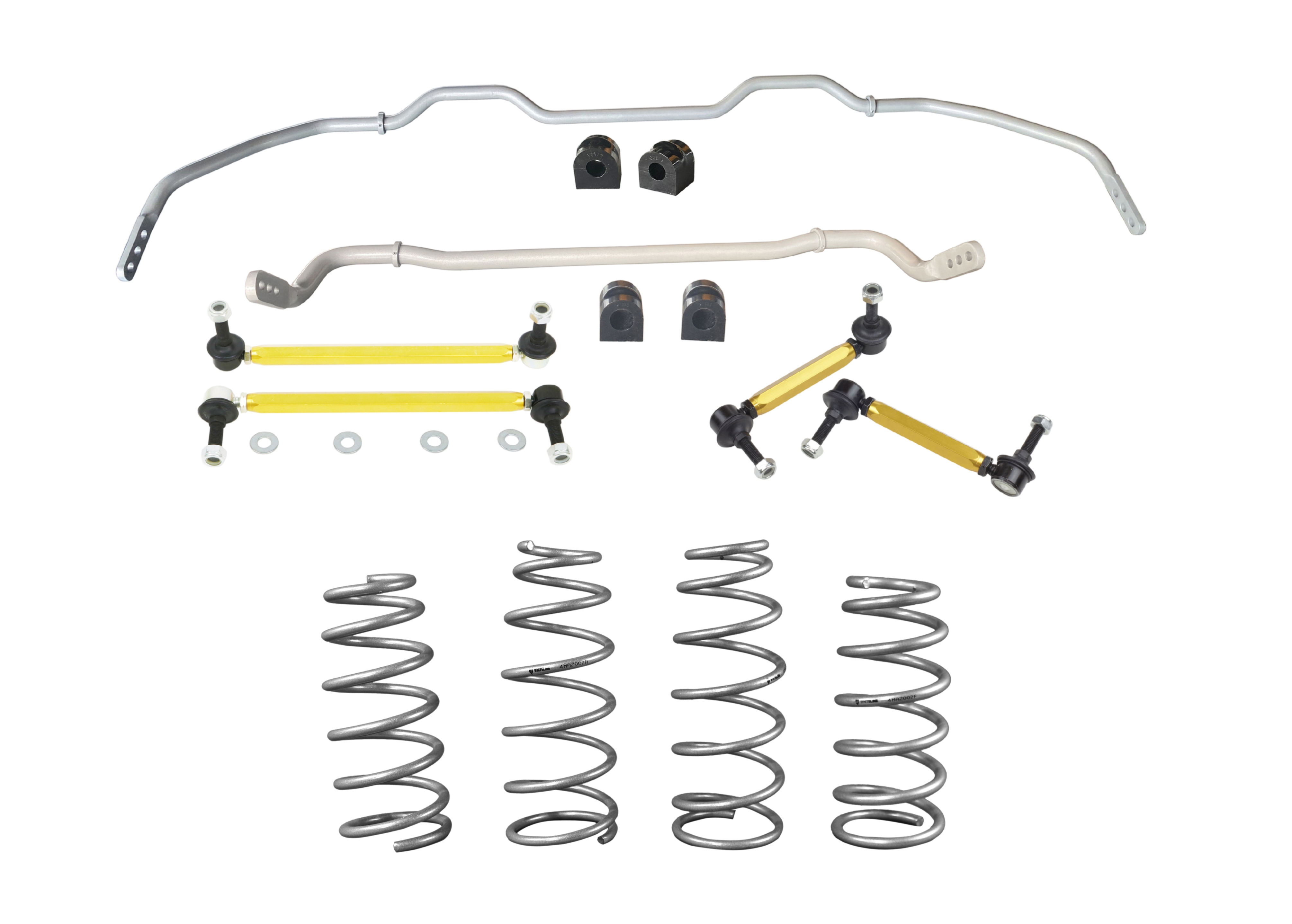

The Whiteline GS1-TES001 Grip Series Stage 1 Kit is a comprehensive performance suspension upgrade combining adjustable sway bars, performance lowering springs, and drop links into one complete package. Engineered specifically for the Tesla Model 3 AWD platform, this kit delivers improved handling, reduced body roll, and a more responsive driving experience without sacrificing everyday ride quality.
At the core of this kit are two sets of performance lowering springs. The 4.8 kg/mm (269 lb/in) front springs deliver a 20mm drop, while the 8.0 kg/mm (450 lb/in) rear springs provide a matching 20mm lowering stance — improving the vehicle's center of gravity and cornering dynamics. Both front and rear springs are engineered to work optimally with OEM shock absorbers, requiring no damper upgrades for installation.
The kit also includes a 30mm 3-point adjustable front sway bar and a 20mm 3-point adjustable rear sway bar, giving drivers the flexibility to fine-tune roll stiffness balance to suit their driving style. Whiteline sway bar mounts use an advanced synthetic elastomer formulation that resists oil, grease, ozone, and weathering for long-lasting performance.
Kit Highlights:
- Performance lowering springs: 20mm front and rear drop
- Front spring rate: 4.8 kg/mm (269 lb/in)
- Rear spring rate: 8.0 kg/mm (450 lb/in)
- 30mm 3-point adjustable front anti-roll / sway bar
- 20mm 3-point adjustable rear anti-roll / sway bar
- Adjustable drop links with on-car length adjustment up to 25mm center-to-center
- Heavy-duty ball joint ends adjust and rotate to any angular combination for precise fitment
- Advanced synthetic elastomer sway bar mounts with internal bore knurling and grease retention lips
- All metal components feature protective plating for corrosion resistance
- Engineered for use with OEM shocks — no additional damper upgrades required
- Installation guide included
Whiteline backs this kit with a 3-year warranty against factory defects in materials and workmanship under normal use and operating conditions. Compatible with AWD models only.
