Carrillo M5016 High-Performance Forged Piston Kit 88ci 3.780 Bore 10.75:1 Harley Twin Cam

Manufacturer

Part Number

M5016
Sale Price

$461.51

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

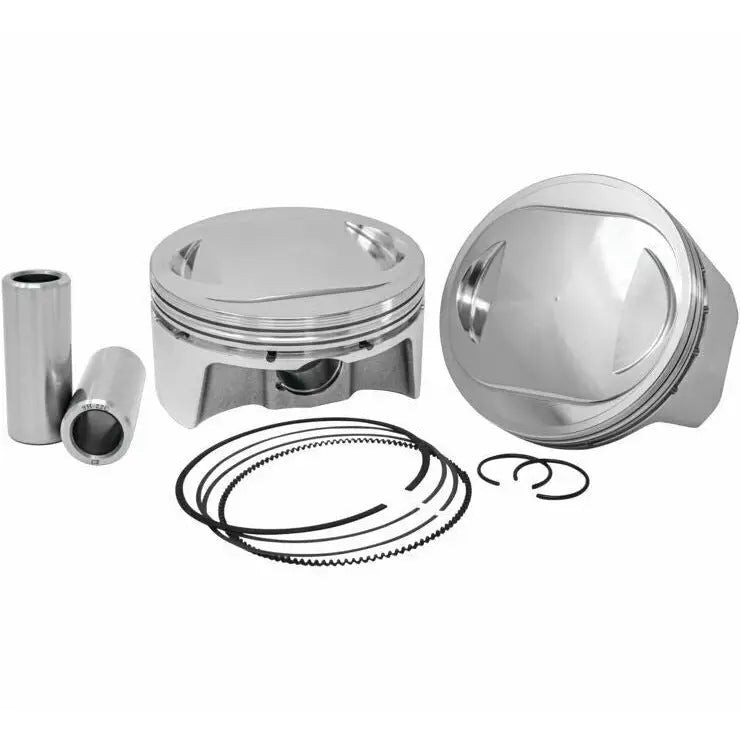

The CP-Carrillo M5016 is a high-performance forged piston kit engineered for Harley-Davidson Twin Cam engines displacing 88 cubic inches. Featuring a 3.780" bore, 4.000" stroke, and a high-compression 10.75:1 compression ratio, this piston set is purpose-built for riders demanding more power and durability from their Twin Cam build.

Manufactured at CP-Carrillo's Irvine, California facility, these pistons are CNC-machined from 2618 forged and heat-treated aluminum alloy — a material renowned for its superior strength-to-weight ratio and resistance to detonation and elevated cylinder pressures. Advanced 5-axis machining techniques and 3-D modeling software ensure each piston meets the tightest dimensional tolerances available.

Key Specifications:

  • Displacement: 88 cu in
  • Bore: 3.780"
  • Stroke: 4.000"
  • Compression Ratio: 10.75:1
  • Compression Height: 1.270"
  • Dome Volume: 17.8 cc
  • Typical Bore Clearance: 0.0025" – 0.0030"

Kit Contents & Features:

  • Includes RS111A-3780-5 ring set for optimal sealing and performance
  • Forced pin oiling for superior lubrication under high-load conditions
  • Advanced cam and barrel skirt profiles for reduced friction and improved ring seal
  • Flattest ring grooves available for maximum ring stability
  • Compatible with stock connecting rods; performance conrods such as the PSR6161 recommended for high-performance applications

CP-Carrillo pistons undergo a rigorous multi-level inspection process — including magnaflux testing and computerized dimensional verification — to ensure each unit meets the exacting standards demanded by performance engine builders. The M5016 is an ideal choice for Twin Cam engine rebuilds targeting increased compression and power output.
