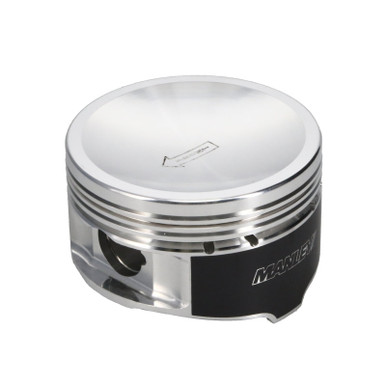

Manley 594230C-1 Ford 4.6L 5.4L Modular Platinum Series Spherical Dish Piston 3.582 Bore

The Manley 594230C-1 is a high-performance single forged piston designed for Ford 4.6L and 5.4L SOHC/DOHC modular V8 engines. Part of Manley's acclaimed Platinum Series, this piston delivers the strength and reliability demanded by serious engine builders and tuners.

Key Specifications:

• Bore Size: 3.582 inches (0.030 inch oversize)
• Compression Height: 1.220 inches
• Dish Configuration: 18cc spherical dish design
• Piston Material: Forged 2618 aluminum alloy
• Wrist Pin: Premium chrome moly, 0.866 inch diameter, included
• Ring Grooves: 1.50mm x 1.50mm x 3.00mm
• Skirt Coating: Moly coated for reduced friction
• Compatible Stroke: 3.543 inches (stock)
• Rod Length: 5.933 inches

Platinum Series Features:

• Domestic 2618 alloy forgings provide maximum high-temperature strength and fatigue resistance
• Cam and barrel skirt profiles optimize power while protecting cylinder walls
• Unique fixturing allows ring groove and skirt machining in a single operation for superior squareness
• No grain-interrupting internal milling maintains forging integrity
• Precision-machined ring lands and grooves for enhanced ring seal

The 2618 alloy construction makes this piston ideal for power-adder applications including superchargers, turbochargers, and nitrous oxide systems. The moly-coated skirt reduces friction and wear during break-in and high-performance operation. Wrist pin retainers are included for hassle-free installation.

Sold individually as a single piston with wrist pin. Piston rings sold separately.
