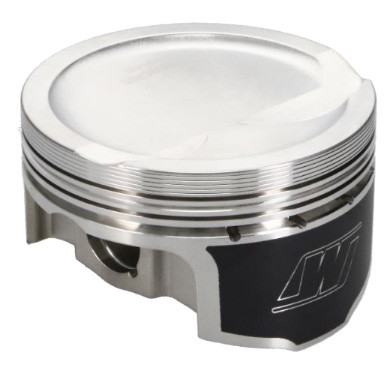

Wiseco RED0082X75 RED Series Chevy LS Forged Piston Set Bore Dish - 4.075 10cc

Manufacturer

Part Number

RED0082X75
Black Friday Price

$949.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED Series piston set (RED0082X75) is purpose-built for high-performance Chevrolet LS engine builds demanding serious power. Appropriately named RED — Race Engineered Design™ — these forged pistons deliver the strength, durability, and precision machining that performance and power-adder applications require. With a 4.075 in. bore, 1.105 in. compression height, 0.927 in. pin diameter, and a -10cc dish, this set is engineered for stroker LS builds targeting optimized compression ratios with forced induction or naturally aspirated setups.

Key Features:

  • Forged 2618 aluminum construction — engineered, forged, and machined in the USA for the tensile strength required in performance racing and power-adder applications
  • Dedicated engine-specific forgings — optimized strutted design maximizes strength-to-weight characteristics for each platform
  • ArmorGlide® skirt coating — reduces operating friction and noise while minimizing skirt and cylinder wall wear for extended service life
  • Horizontal slot oiling in pin bores — maintains optimal wrist pin and small-end lubrication, critical for long-term reliability under high load
  • Accumulator groove — helps maintain consistent ring seal and power output
  • Premium rings included — complete kit requires no additional ring sourcing
  • 12° multi-fit valve pocket combo — compatible with a wide range of LS cylinder head configurations

Specifications:

  • Bore: 4.075 in.
  • Compression Height (CH): 1.105 in.
  • Pin Diameter: 0.927 in.
  • Dome/Dish Volume: -10cc Dish
  • Material: 2618 forged aluminum

RED Series piston kits are available for a range of popular domestic V8 platforms and are equally at home on the drag strip, circle track, or street/strip build. Each set is manufactured at Wiseco's facility in Mentor, Ohio, combining decades of forging expertise with modern CNC precision.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Rod Length

6.125

Second Ring Material

Ductile iron

Stroke

4.000

Top Ring Material

Steel

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.075

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.105

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-10.00

EBAY Category ID

33623

Engine - Web

LS

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Title

RED Series - Chevrolet, LS, 4.075 in. Bore, Piston Set of 8

Ring Quantity

8

Make - Web

Chevy

Ring Set Part Number

4072GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Wrist Pin Retainer Material

Chrome Silicone

Wrist Pin Retainer Thickness

0.0720

Title - Web

RED Series Chevy LS Piston Set of 8 - 4.075 in. Bore - 1.105 in. CH, -10.00 CC
