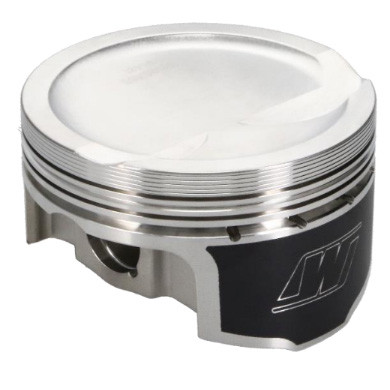

Wiseco RED0082X7 RED Series LS Stroker Forged Piston Set Bore Dish - 4.070 10cc

Manufacturer

Part Number

RED0082X7
Black Friday Price

$949.99

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0082X7 is part of the RED Series (Race Engineered Design) forged piston kit lineup, purpose-built for Chevrolet LS stroker applications. Featuring a 4.070-inch bore, 4.000-inch stroke, and a -10cc dish, this set is engineered to deliver the strength and precision demanded by high-performance street, strip, and power-adder builds.

Key Features:

  • 4.070 in. Bore with a -10cc dish dome for optimized compression tuning
  • 1.105 in. compression height engineered for 4.000-inch stroker combinations
  • Forged from 2618 aluminum alloy for superior tensile strength in racing and power-adder applications
  • Dedicated strutted forging design maximizes engine-specific strength-to-weight characteristics
  • ArmorGlide skirt coating reduces operating friction, noise, and cylinder wear for extended service life
  • Horizontal slot oiling in pin bores ensures optimal wrist pin and small-end lubrication
  • Accumulator groove maintains consistent ring seal and power output
  • 12° multi-fit valve pocket combo for broad LS head compatibility
  • Engineered, forged, and machined in the USA
  • Includes premium rings — complete piston kit, no additional ring sourcing required

The Wiseco RED Series delivers the ultimate balance of performance and value for serious LS engine builders. Whether building a naturally aspirated stroker or a boosted power-adder combination, the RED0082X7 piston set provides the durability, precision, and reliability needed to support high-horsepower output.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Rod Length

6.125

Second Ring Material

Ductile iron

Stroke

4.000

Top Ring Material

Steel

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.070

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.105

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-10.00

EBAY Category ID

33623

Engine - Web

LS

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Title

RED Series - Chevrolet, LS, 4.070 in. Bore, Piston Set of 8

Ring Quantity

8

Make - Web

Chevy

Ring Set Part Number

4072GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Wrist Pin Retainer Material

Chrome Silicone

Wrist Pin Retainer Thickness

0.0720

Title - Web

RED Series Chevy LS Piston Set of 8 - 4.070 in. Bore - 1.105 in. CH, -10.00 CC
