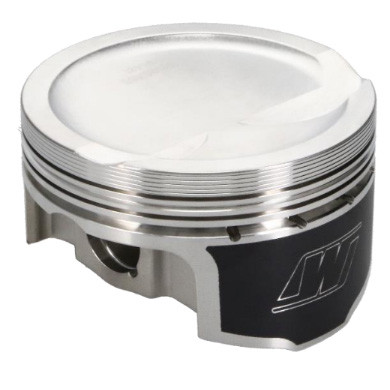

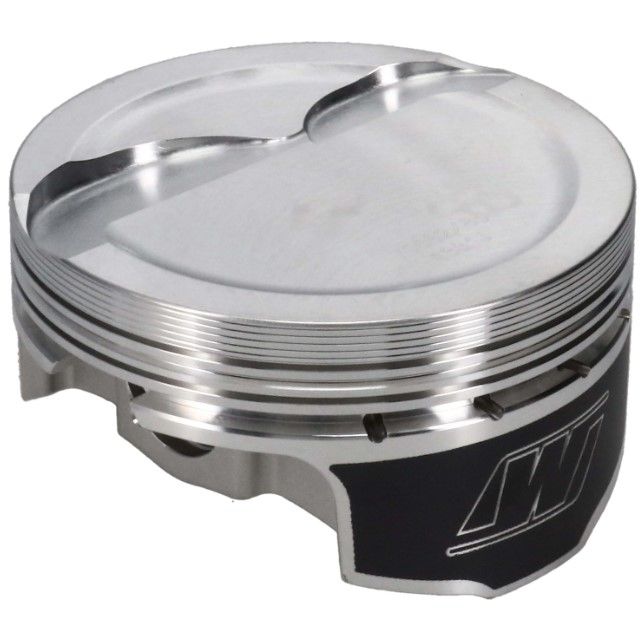

Wiseco RED0082X15 RED Series Chevy LS Forged Piston Set 4.015 in. Bore -10cc Dish

Manufacturer

Part Number

RED0082X15
Black Friday Price

$949.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0082X15 is a RED Series forged piston set designed for Chevrolet LS stroker engine builds. The 12° multi-fit valve pocket combo makes these pistons a versatile choice for a wide range of LS cylinder head configurations.

Key Features:

  • Engineered, forged, and machined in the USA from 2618 aluminum for the tensile strength demanded by performance racing and power adder applications
  • Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics
  • ArmorGlide® skirt coating reduces operating friction and noise while minimizing skirt and cylinder wear
  • Horizontal slot oiling in pin bores maintains optimal wrist pin and small-end lubrication for long service life
  • Accumulator groove helps maintain consistent ring seal and power output
  • 12° multi-fit valve pocket combo for broad LS cylinder head compatibility
  • Kit includes premium rings — no additional sourcing required

Specifications:

  • Bore: 4.015 in.
  • Stroke: 4.000 in.
  • Rod Length: 6.125 in.
  • Compression Height: 1.105 in.
  • Wrist Pin Diameter: 0.927 in.
  • Dome: -10.0cc Dish

The RED™ Series (Race Engineered Design™) piston line delivers the ultimate balance of performance and value for serious LS engine builders, from drag racing to circle track applications.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Rod Length

6.125

Second Ring Material

Ductile iron

Stroke

4.000

Top Ring Material

Steel

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.105

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-10.00

EBAY Category ID

33623

Engine - Web

LS

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Bore Diameter

4.015

Title

RED Series - Chevrolet, LS, 4.015 in. Bore, Piston Set of 8

Ring Quantity

8

Make - Web

Chevy

Ring Set Part Number

4014GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Wrist Pin Retainer Material

Chrome Silicone

Wrist Pin Retainer Thickness

0.0720

Title - Web

RED Series Chevy LS Piston Set of 8 - 4.015 in. Bore - 1.105 in. CH, -10.00 CC
