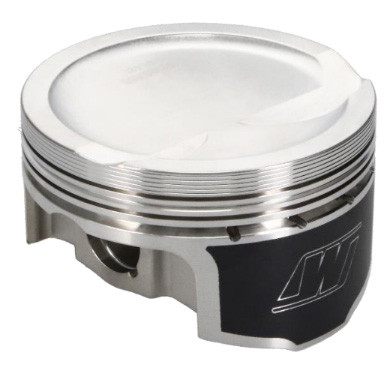

Wiseco RED0081X170 RED Series LS -15cc Dish Forged Piston Set 4.170 in. Bore

Manufacturer

Part Number

RED0081X170
Black Friday Price

$949.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0081X170 is a RED Series forged piston set designed for Chevrolet LS engines, featuring a 4.170 in. bore, 3.622 in. stroke, and a -15cc dish with a compression height of 1.294 in. These pistons are engineered specifically for boosted and high-performance LS applications, offering the ideal combination of reduced compression ratio and strength needed for forced induction and power adder builds.

Key Features:

  • -15cc dish dome – purpose-built for boosted LS applications including turbo, supercharger, and nitrous
  • Forged from 2618 aluminum – delivers the tensile strength required in performance racing and power adder environments
  • Dedicated strutted forging – engine-specific design optimizes strength-to-weight characteristics
  • ArmorGlide skirt coating – reduces operating friction and noise while minimizing skirt and cylinder wall wear
  • Horizontal slot oiling in pin bores – maintains optimal wrist pin and small-end lubrication for extended service life
  • Accumulator groove – helps maintain consistent ring seal and power output
  • Premium rings included – complete kit requires no additional ring sourcing
  • Engineered, forged, and machined in the USA
  • Multi-fit valve pocket combo – compatible with a range of LS cylinder head configurations

The RED Series piston line is available for both stock stroke and stroker LS builds, with dish options of -10cc, -20cc, and this -15cc variant to suit a variety of target compression ratios. Whether building for the strip, the street, or the dyno, the RED0081X170 delivers race-proven durability and precision at a performance-oriented value.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Rod Length

6.125

Second Ring Material

Ductile iron

Stroke

3.622

Top Ring Material

Steel

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.294

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-15.00

EBAY Category ID

33623

Engine - Web

LS

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Ring Quantity

8

Make - Web

Chevy

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Bore Diameter

4.170

Title

RED Series - Chevrolet, LS, 4.170 in. Bore, Piston Set of 8

Ring Set Part Number

4168GFX

Wrist Pin Retainer Material

Chrome Silicone

Wrist Pin Retainer Thickness

0.0720

Title - Web

RED Series Chevy LS Piston Set of 8 - 4.170 in. Bore - 1.294 in. CH, -15.00 CC
