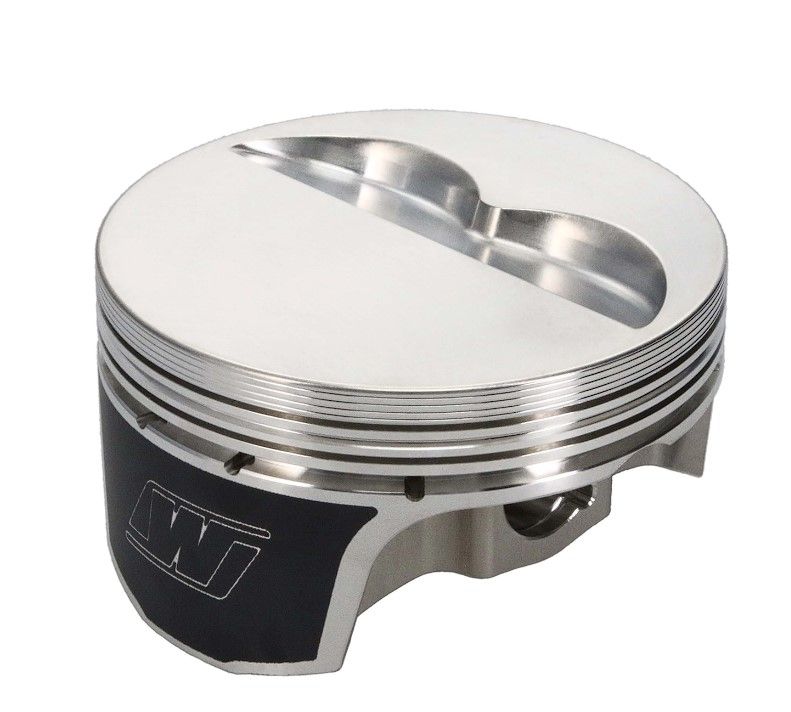

Wiseco RED0010X1 RED Series Small Block Chevy 350/383 Forged Piston Set -9cc Dish 1.425 CH 4.010 Bore

Manufacturer

Part Number

RED0010X1
Black Friday Price

$949.99

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Featuring a 4.010-inch bore, 1.425-inch compression height, and a -9cc dish crown, this piston is engineered for builders seeking reliable street/strip performance with precise compression tuning capability.

Aptly named for its Race Engineered Design, the RED Series delivers the strength and durability demanded by high-performance and power-adder applications. Each piston is engineered, forged, and machined in the USA from 2618 aluminum alloy, providing the tensile strength required for racing and boost applications.

Key Features:

  • 4.010 in. bore diameter — ideal for standard overbore SBC 350/383 applications
  • 1.425 in. compression height — supports stock and stroker rod combinations
  • -9cc dish crown — allows fine-tuning of compression ratio with various head chamber volumes
  • 0.927 in. wrist pin diameter — robust pin sizing for high-load applications
  • 2618 forged aluminum alloy construction — superior tensile strength for racing and forced induction use
  • Dedicated engine-specific forgings — strutted design optimizes strength-to-weight characteristics
  • ArmorGlide® skirt coating — reduces friction and noise while minimizing skirt and cylinder wall wear
  • Horizontal slot oiling in pin bores — maintains optimal wrist pin lubrication for long service life
  • Engineered and manufactured in the USA

The Wiseco RED Series is a trusted choice for Small Block Chevy builds ranging from drag racing to circle track competition. The -9cc dish profile pairs well with a wide range of combustion chamber volumes, making it a versatile option for both 350 cubic inch and 383 stroker configurations.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

8

Second Ring Material

Ductile iron

Stroke

3.750

Top Ring Material

Steel

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.010

Oil Ring Thickness

3.00

Third Ring Material

Stainless Steel

Compression Height

1.425

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-9.00

EBAY Category ID

33623

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Rod Length

5.700

Engine

Small Block 350

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Ring Quantity

8

Make - Web

Chevy

Ring Set Part Number

4007GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Cylinder Head

23 Degree

Title

RED Series - Chevrolet, Small Block 350, 4.010 in. Bore, Piston Set of 8

Wrist Pin Retainer Material

Chrome Silicone

Engine - Web

Small Block 350

Wrist Pin Retainer Thickness

0.0720

Title - Web

RED Series Chevy Small Block 350 Piston Set of 8 - 4.010 in. Bore - 1.425 in. CH, -9.00 CC
