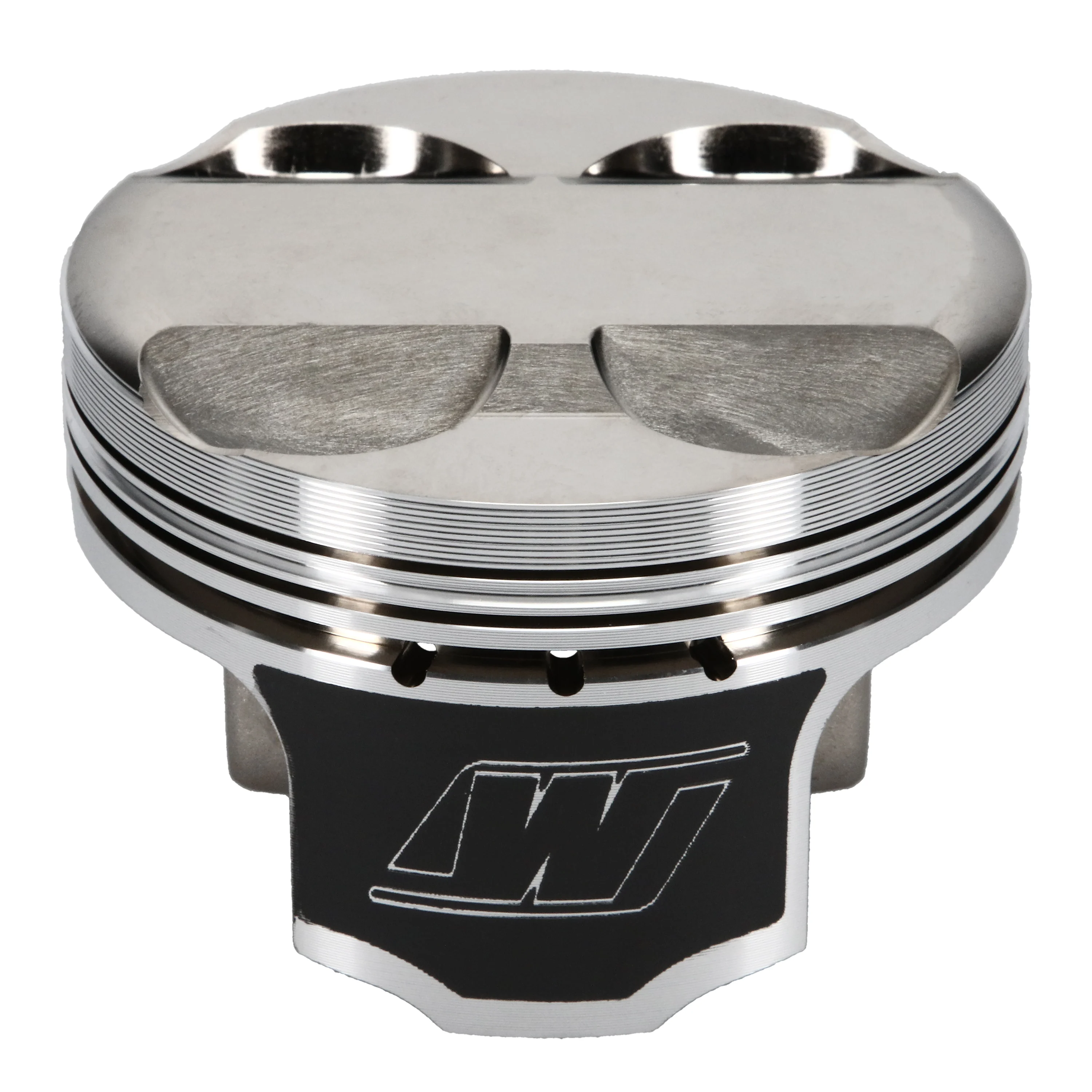

Wiseco K682M87AP Honda F20C/F22C S2000 +7cc Dome 11:1 CR Forged Piston Kit – 87mm Bore

Manufacturer

Part Number

K682M87AP
Black Friday Price

$766.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco K682M87AP is a Professional Series forged piston kit designed for the Honda F20C and F22C engines found in the S2000.

Key Features:

  • 87.00mm Bore Diameter with 1.141 in. (28.98mm) compression height

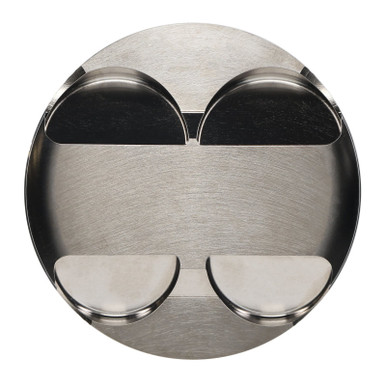

  • +7cc Dome Crown for elevated 11:1 compression ratio on F20C/F22C applications
  • Forged 2618 Aluminum Construction — aerospace-grade alloy for superior tensile strength, impact resistance, and fatigue durability
  • ArmorGlide® Skirt Coating — reduces friction, resists seizure, and quiets piston operation
  • Precision Ring Grooves with anti-detonation groove and advanced ring seal geometry
  • Forced Pin Oiling for enhanced lubrication at the wrist pin under high-RPM conditions
  • 0.9055 in. Pin Diameter — compatible with premium 4130 chrome moly wrist pins
  • Includes Premium Ring Set — gas nitrided piston rings included with each kit
  • Aftermarket Cylinder Sleeves Required — not compatible with OEM FRM cylinder bore; aftermarket iron or steel sleeves must be used
  • Engineered, forged, and machined in the USA at Wiseco's Mentor, Ohio facility

Wiseco's Professional Series pistons are purpose-built for heavy to severe-duty race applications. The forging process compresses the aluminum's grain structure, resulting in a denser, stronger billet that can withstand the stresses of forced induction, high compression, and sustained high-RPM use. Valve pocket designs maximize flow clearance and support oversized valves and high-lift camshafts. Each kit ships complete with four pistons and a matching ring set — everything needed for a full engine build.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

4

Second Ring Material

Ductile iron

Top Ring Material

Stainless steel

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Oil Ring Thickness

2.80

Make

Honda

Third Ring Material

Stainless Steel

Compression Height

1.141

Industry

Automotive

Product Market

Sport Compact

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.00

Engine Type

ICE

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Make - Web

Honda

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

7.00

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Wrist Pin Retainer Thickness

0.049

Bore Diameter

3.425

Ring Set Part Number

8700XX

Wrist Pin Outer Diameter

0.905

Wrist Pin Quantity

4

Wrist Pin Retainer Quantity

8

Cylinder Head

F22C

Engine

F22C

Rod Length

6.023

Stroke

3.307

Title

Professional - Honda, F22C, 3.425 in. Bore, Piston Set of 4

Ring Quantity

4

Engine - Web

F22C

Title - Web

Professional Piston Set of 4 Honda F22C - 3.425 in. Bore - 1.141 in. CH, 7.00 CC

Wrist Pin Part Number

S551

Wrist Pin Retainer Part Number

CW23
