Wiseco K554M78 Mazda 1.6L Turbo Forged Piston Kit 78mm -13cc

Manufacturer

Part Number

K554M78
Black Friday Price

$752.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

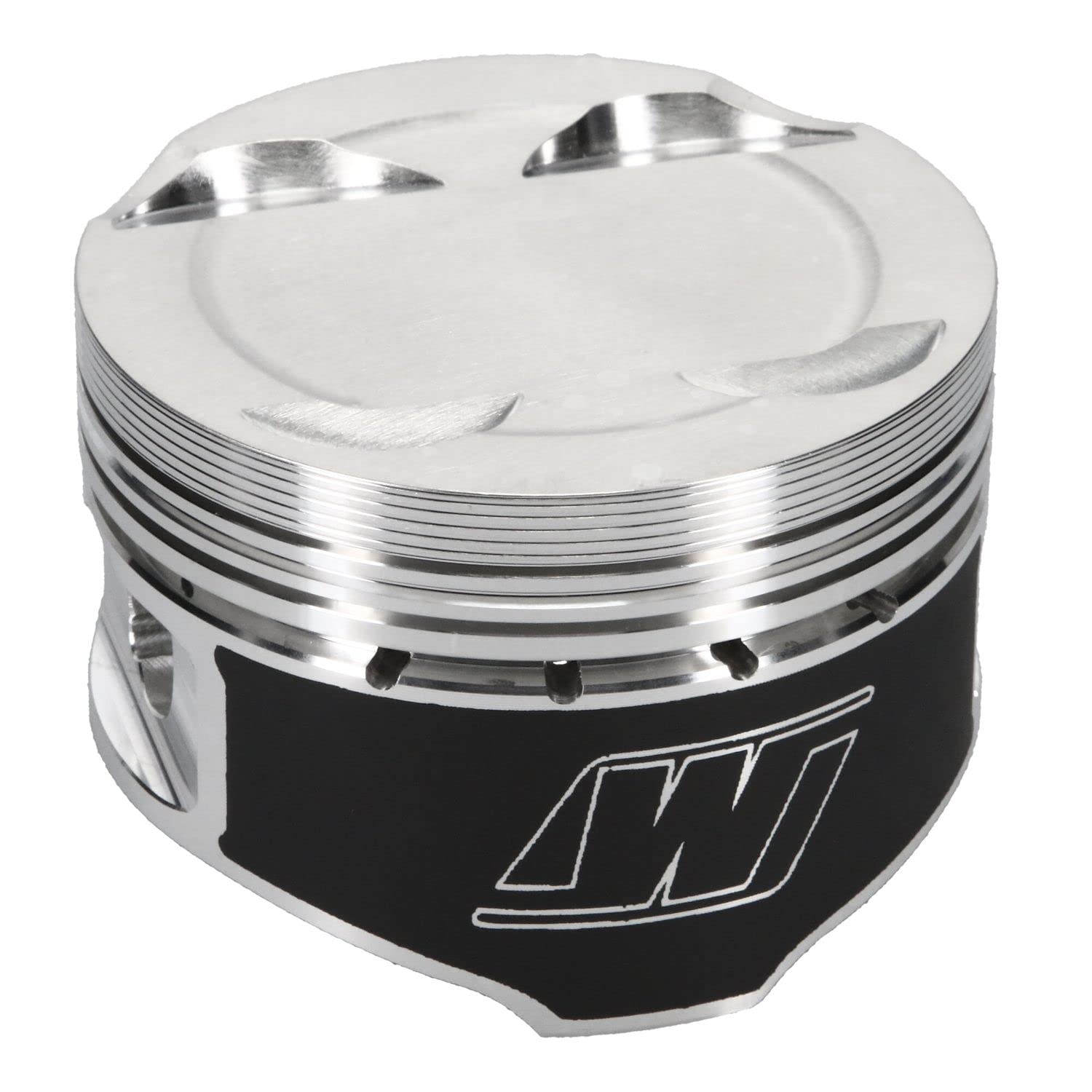

The Wiseco K554M78 is a forged aluminum piston kit engineered specifically for turbocharged Mazda 1.6L applications. Featuring a -13cc dish with four valve reliefs and a 1.258-inch (31.95mm) compression height, this piston is purpose-built for forced induction builds where reduced compression ratios are critical for engine reliability and power output under boost.

Part of Wiseco's Sport Compact Pro Tru series, the K554M78 is manufactured at Wiseco's state-of-the-art forging facility in Mentor, Ohio, USA. The forged aluminum construction delivers superior strength and improved heat transfer compared to cast alternatives, making it an ideal choice for high-performance turbo engine builds.

Key Features:

  • Bore: 78.00mm (3.071 in.) — standard bore
  • Compression Height: 1.258 in. (31.95mm)
  • Piston Head Volume: -13cc dish with four valve reliefs
  • Pin Diameter: 0.787 in. (20mm)
  • Piston Style: Dish with four valve reliefs — optimized for turbo applications
  • Top Ring: 1.0mm steel with gas nitride facing
  • Second Ring: 1.2mm cast iron with phosphate coating
  • Oil Ring: 2.8mm stainless steel with standard tension
  • ArmorGlide skirt coating reduces friction and improves ring seal
  • Forged and machined in the USA
  • Kit includes piston rings, wrist pin(s), and circlips

Wiseco's Pro Tru piston kits are available in multiple bore sizes to accommodate standard and overbore applications, giving engine builders the flexibility to select the exact compression ratio required for their specific forced induction setup. Professional installation by a qualified engine builder is recommended.

Products specifications

Oil Ring Tension

Standard

Piston Quantity

4

Second Ring Material

Ductile iron

Top Ring Material

Stainless steel

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Mazda

Piston Material

2618

Stroke

5.236

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Oil Ring Thickness

2.80

Third Ring Material

Stainless Steel

Industry

Automotive

Product Market

Sport Compact

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.00

Engine Type

ICE

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Wrist Pin Outer Diameter

0.787

Forging Type

Full Round

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-13.00

EBAY Category ID

33623

Make - Web

Mazda

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Wrist Pin Retainer Thickness

0.049

Engine

BP

Engine - Web

BP

Bore Diameter

3.071

Wrist Pin Quantity

4

Wrist Pin Retainer Quantity

8

Cylinder Head

BP

Rod Length

3.278

Title

Professional - Mazda, BP, 3.071 in. Bore, Piston Set of 4

Compression Height

1.258

Ring Quantity

4

Title - Web

Professional Piston Set of 4 Mazda BP - 3.071 in. Bore - 1.258 in. CH, -13.00 CC

Ring Set Part Number

7800XX

Wrist Pin Part Number

S623

Wrist Pin Retainer Part Number

CW20
