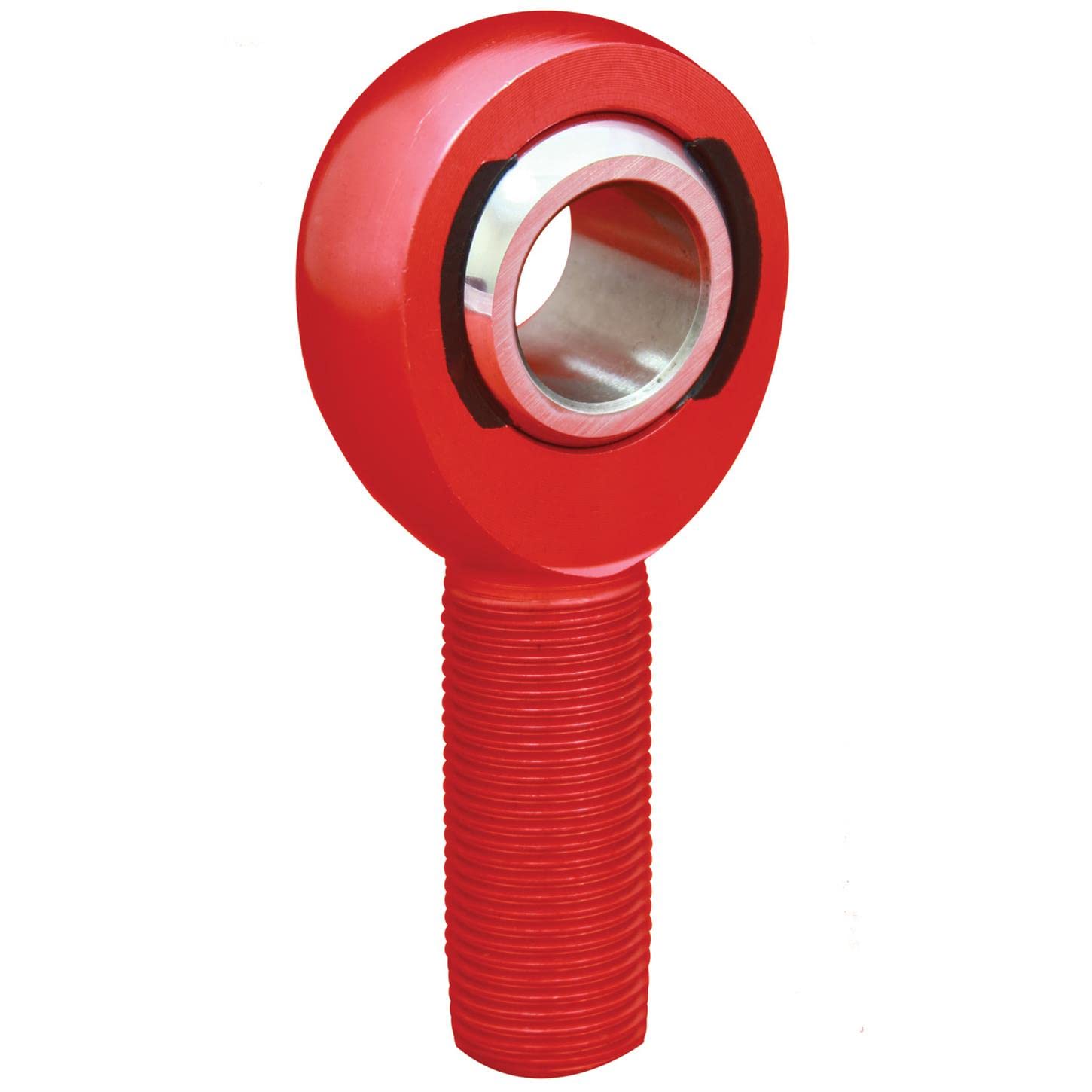

QA1 AMR5-6 AM Series Aluminum Male Rod End 5/16in Bore 3/8-24 RH Red Anodized

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

AMR5-6
11 reviews
Sale Price

$12.09

Estimated ship date Friday, November 20

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 AMR5-6 is an AM Series lightweight aluminum male rod end built for performance applications where minimizing weight is a priority. Featuring QA1's exclusive loader slot (Endura) design, this rod end uses a reinforced Nylon 12 race injected with self-lubricating PTFE to create a fully self-sealing, maintenance-free bearing. The 5/16 in. bore pairs with a 3/8-24 right-hand male thread, and the aircraft aluminum 7075-T6 body is finished with a red anodize coating as standard.

Unlike traditional three-piece aluminum rod ends, the AM Series loaded-slot construction delivers increased cross-sectional thickness for superior tensile strength and metal-to-metal support to handle heavy shock loads—making it an ideal choice for suspension links, steering, and other high-stress motorsports applications. The injection-molded race resists pounding out over time, significantly extending service life compared to conventional PTFE liner designs.

Ball:

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race:

  • Reinforced Nylon 12 with Self-Lubricating PTFE
  • Self-Sealing
  • Self-Lubricating — No Greasing Required

Body:

  • Aircraft Aluminum 7075-T6
  • Red Anodized Finish (Standard)

Key Features:

  • Loader Slot (Endura) Design — Exclusive to QA1
  • Metal-to-Metal Support for Heavy Shock Loads
  • Increased Cross-Sectional Thickness for Greater Tensile Strength
  • Over 10% Lighter Than Traditional Three-Piece Aluminum Rod Ends
  • Most Wear-Resistant Aluminum Rod End Design Available
  • 5/16 in. Bore | 3/8-24 Right-Hand Male Thread

Products specifications

A (+/-0.015)

1.938

Approx Bearing Weight

0.05

B (+0.0015/-0.0005)

0.3125

Ball Dia Ref

0.625

C (+0.062/-0.031)

1.25

D (+/-0.010)

1

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.437 in.

Rod End Centerline Length

1.938 in.

Rod End Construction

2-piece

Rod End Finish

Red anodized

Rod End Head Bore Size

0.313 in.

Rod End Head Diameter

1.000 in.

Rod End Head Width

0.437 in.

Rod End Material

Aluminum

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

3,457 lbs.

Rod End Static Load Capacity (lbs)

3,457 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

3/8-24 RH in.

T (+/-0.005)

0.343

Thread Length

1.250 in.

Thread Type

Right Hand

Thread UNF-3A

3/8 -24

UTL Radical Static

3457

W (+/-0.005)

0.437

Title

QA1 Suspension Rod End Bearing AMR5-6
