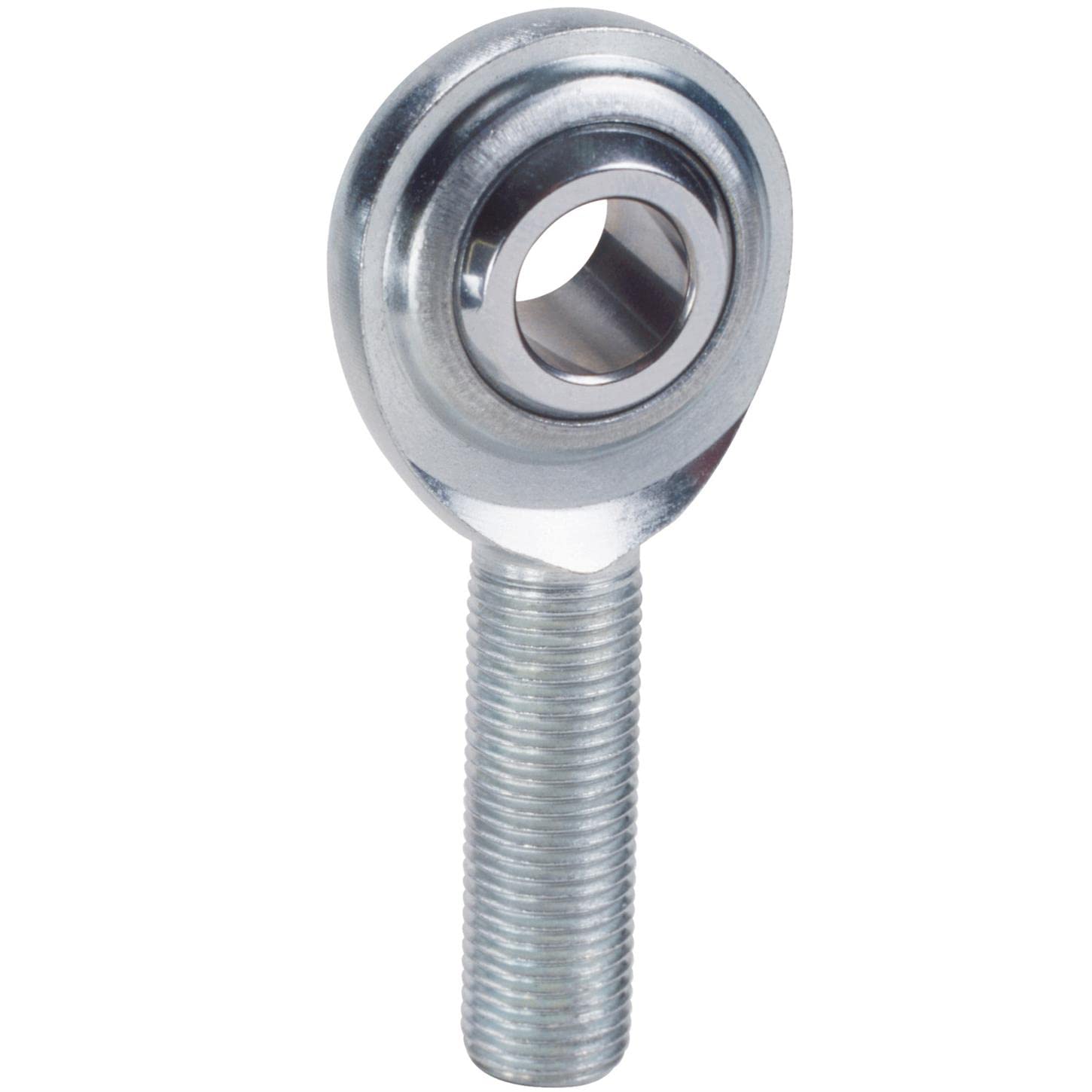

QA1 CML7T C Series Rod End 7/16in. Bore 7/16-20 LH Male Thread 2-Piece Carbon Steel PTFE Lined

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CML7T
11 reviews
Sale Price

$8.85

Estimated ship date Friday, November 20

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CML7T is a C Series two-piece carbon steel rod end featuring a male mounting configuration with left-hand (LH) threads. Designed for performance automotive, motorsports, and industrial applications, this self-lubricating rod end delivers smooth, reliable articulation in suspension systems, steering linkages, and other demanding environments.

Key Features:

  • Two-piece carbon steel body — protective coated for corrosion resistance
  • 7/16 in. bore with 7/16-20 left-hand male threads
  • PTFE race liner — provides maintenance-free, self-lubricating operation and reduces friction
  • 52100 bearing steel ball — heat treated, hard chrome plated, and precision ground for optimal load capacity and durability
  • Sold individually

QA1's C Series rod ends are an economical yet robust solution for builders seeking quality spherical rod ends in inch dimensions. The integrated PTFE liner eliminates the need for grease fittings, keeping maintenance demands low. Left-hand thread configuration makes this part ideal for use in applications requiring adjustment via opposing thread pairs, such as tie rods and suspension links.

Products specifications

A (+/-0.015)

2.125

Approx Bearing Weight

0.15

B (+0.0025/-0.0005)

0.4375

Ball Dia Ref

0.812

C (+0.062/-0.031)

1.375

D Ref

1.125

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

21

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.562 in.

Rod End Centerline Length

2.125 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.438 in.

Rod End Head Diameter

1.125 in.

Rod End Head Width

0.562 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

21 degrees

Rod End Static Load Capacity

7,897 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

7/16-20 LH in.

Thread Length

1.375 in.

Thread Type

Left Hand

Thread UNF-3A

7/16 -20

UTL Radical Static

5527

W (+/-0.005)

0.56

Title

QA1 Suspension Rod End Bearing CML7T
