JE Pistons 379432 Ultra Series Piston Kit 84mm Turbo

Manufacturer

Part Number

379432
Sale Price

$1,274.99

Estimated ship date Monday, November 16

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The JE Pistons 379432 Ultra Series Piston Kit is engineered for high-performance turbocharged motorcycle applications. This complete piston kit features advanced forging technology and premium coatings designed to withstand the extreme demands of forced induction engines.

Advanced Features:

  • Aligned Grain Flow Technology directs aluminum grain flow around critical stress areas for enhanced strength and durability
  • Lateral gas ports channel combustion gases behind the top ring groove, improving ring seal consistency in boosted applications
  • Ultra-thick ring lands maintain ring stability under forced induction and high-horsepower conditions
  • Thermal barrier crown coating reduces heat transfer into piston material, decreasing fatigue and extending service life
  • Proprietary moly-based dry film skirt coating reduces operating friction and improves wear resistance
  • Upgraded 9310 steel wrist pins provide additional strength to handle increased loads from turbo applications

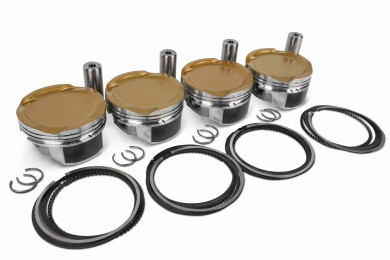

Complete Kit Includes:

  • All necessary pistons
  • Piston rings
  • Wrist pins
  • Wire locks

This kit features an 84mm bore diameter and is specifically designed for turbocharged builds with optimized compression ratios. JE Pistons uses fully CNC-machined 2618 low-silicon forged aluminum alloy for exceptional strength and reliability in demanding racing and performance applications.

Products specifications

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Piston Head Type

Inv Dome/Dish

Forging Type

FSR

Lateral Gas Ports

Yes

Piston Volume

-16.1

Engine Type

ICE

Product Type

Engine Piston Kit

Industry

Powersports

Bore Diameter

3.307

Wrist Pin Length

2.250

Piston Series

JE Pistons

2nd Groove Width

0.048

3D Undercrown Milling

No

Accumulator Groove

Yes

Anodize Top Ring Groove

No

Combo 2

No

Contact Reduction

No

Double Pin Oilers

No

DVGP

No

Econo Undercrown Milling

No

EN Plating

No

Gas Distribution

No

Mill Undercrown

No

Pin Fit

Yes

Skirt Coat

Yes

Smooth Crown Finish

No

Top Groove Width

0.04000

Tuff Skirt

No

Ultra Dome

No

Ultra Groove

No

Ultra Groove Plus Gas Port

No

Vertical Gas Ports

No

Cylinder Head

KAWASAKI 02

Wrist Pin Outer Diameter

.787

Engine Stroke

2.401

Product Market

Powersports

Compression Ratio Actual

9.5

Piston Average Weight

252

Exhaust Angle

13

Exhaust Depth

.146

Exhaust Diameter

1.215

Intake Angle

12

Intake Depth

.143

Intake Diameter

1.415

Oil Groove Width

0.14100

Piston To Wall Clearance

-0.003

Thermal Crown

Yes
