Cometic C8574 MLS Cylinder Head Gasket Bore Thickness - 74mm 0.030

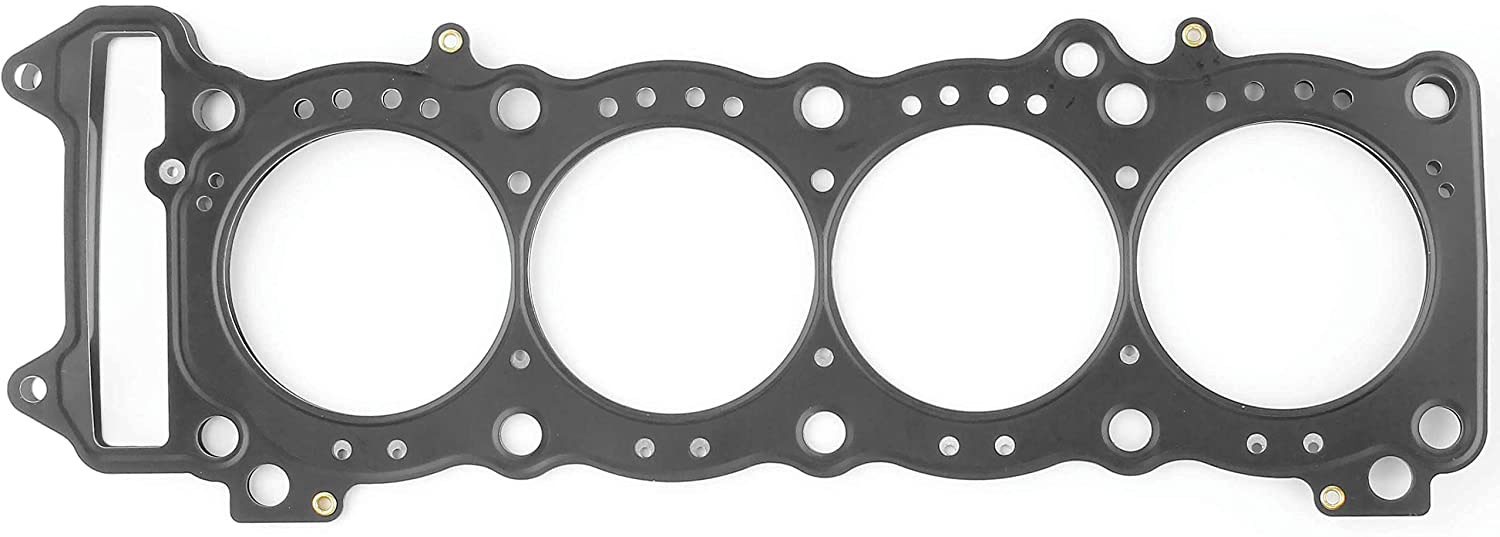

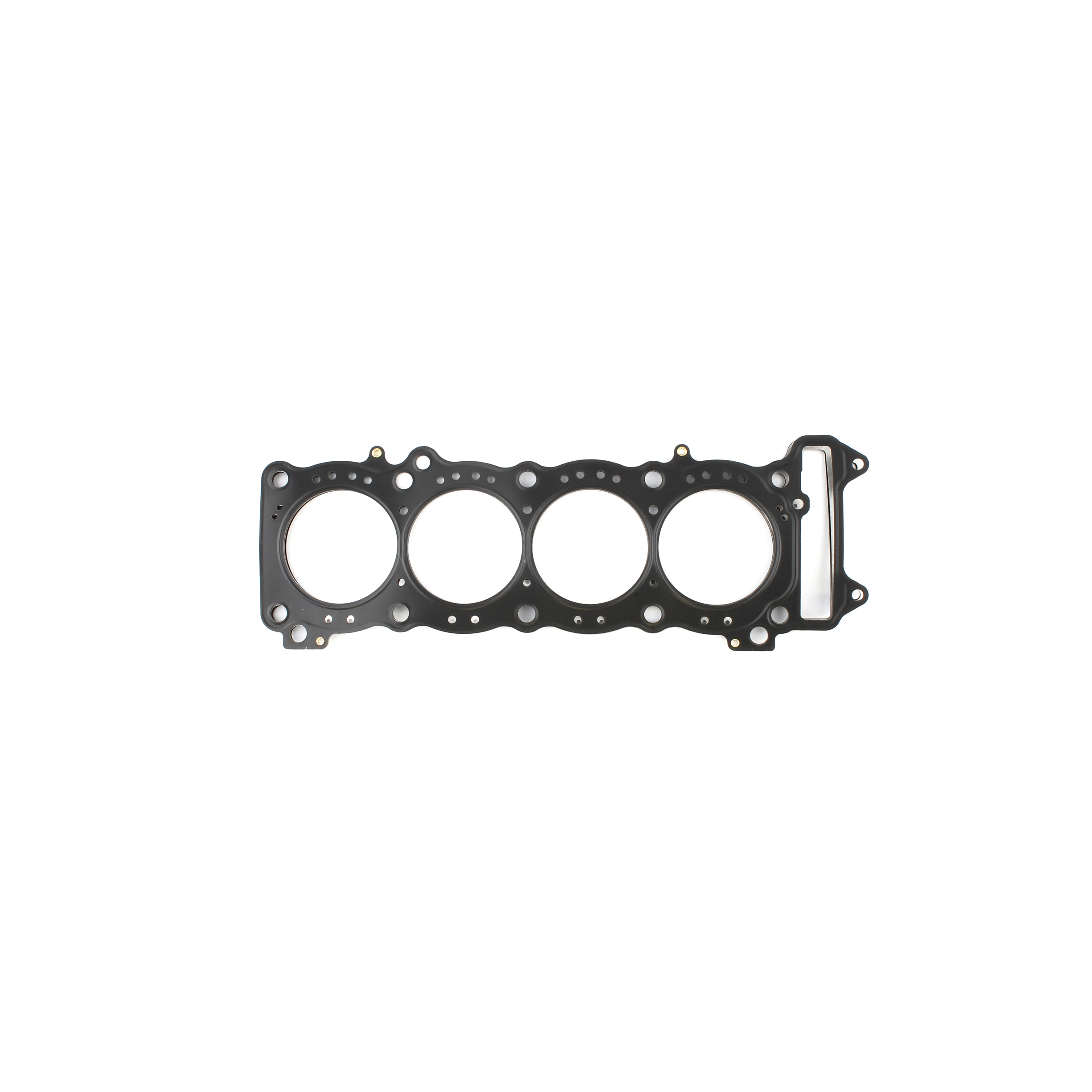

The Cometic C8574 is a high-performance Multi-Layer Steel (MLS) cylinder head gasket engineered for Suzuki GSX-R750 (2000-2005), GSX-R1000 (2001-2008), and GSX-S750 (2015-2020) motorcycles. This precision-manufactured gasket features a 74mm bore diameter and 0.030" (0.76mm) compressed thickness, providing superior sealing performance for both stock and modified engines.

Multi-Layer Steel Construction:

• Multiple embossed layers of stainless steel for maximum strength and durability
• Outer layers coated with Viton® rubber on both sides for heat resistance up to 482°F
• Center uncoated stainless steel shim layer provides flexibility for varying compression requirements
• LCE (Load Control Embossments) technology promotes even torque distribution
• Reduces bore distortion and improves piston ring seal for increased power

Key Features:

• 74mm bore diameter for precision fitment
• 0.030" compressed thickness (standard replacement specification)
• Requires no additional sealants - installs dry
• Resists corrosion and maintains gasket integrity under extreme conditions
• Made in the USA with premium materials
• Replaces OEM part numbers: 11141-35F00, 11141-40F00, 11141-21H00

Cometic MLS gaskets are the preferred choice of professional engine builders and racers worldwide. The advanced Viton coating withstands harsh sealing environments while the multi-layer design allows the gasket to rebound and maintain compression seal even after repeated heat cycles. Installation is straightforward - simply torque to manufacturer specifications without applying any additional sealant products.
