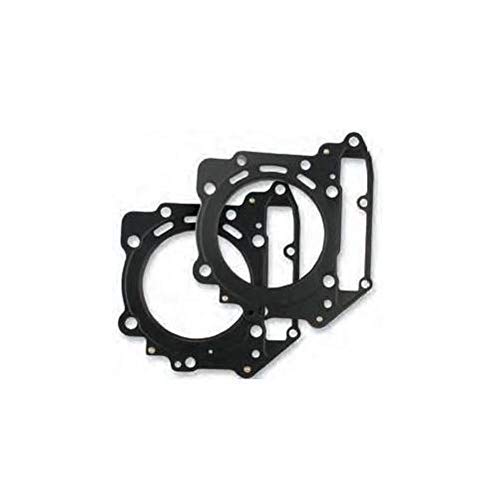

Cometic C8326 Head Gasket Bore Kawasaki - CFM-20 76mm 1197cc

The Cometic C8326 is a high-performance CFM-20 head gasket engineered for Kawasaki KZ1000J and GPZ1100 motorcycles (1981-1983) with 1197cc engines. This 2-piece gasket design features a 76mm bore diameter and 0.043-inch compressed thickness for reliable sealing in demanding powersports applications.

CFM-20 Construction:

• Perforated galvanized steel core with asbestos-free fiber material applied to both sides
• Steel fire rings at each bore to seal off the combustion chamber
• Reinforced gasket material with armor-clad, graphite, and galvanized steel
• Designed for sealing irregular surfaces commonly found in air-cooled engines
• Excellent oil passage sealing capabilities for multi-cylinder applications

Specifications:

• Bore: 76mm (2.99 inches)
• Compressed Thickness: 0.043 inches
• Material: CFM-20 Graphite
• Configuration: 2-piece gasket set
• Engine Displacement: 1197cc

Cometic gaskets are manufactured in the USA and engineered to withstand extreme conditions. The CFM-20 material is specifically designed for air-cooled single or multi-cylinder powersports applications where traditional MLS gaskets may not be suitable.
