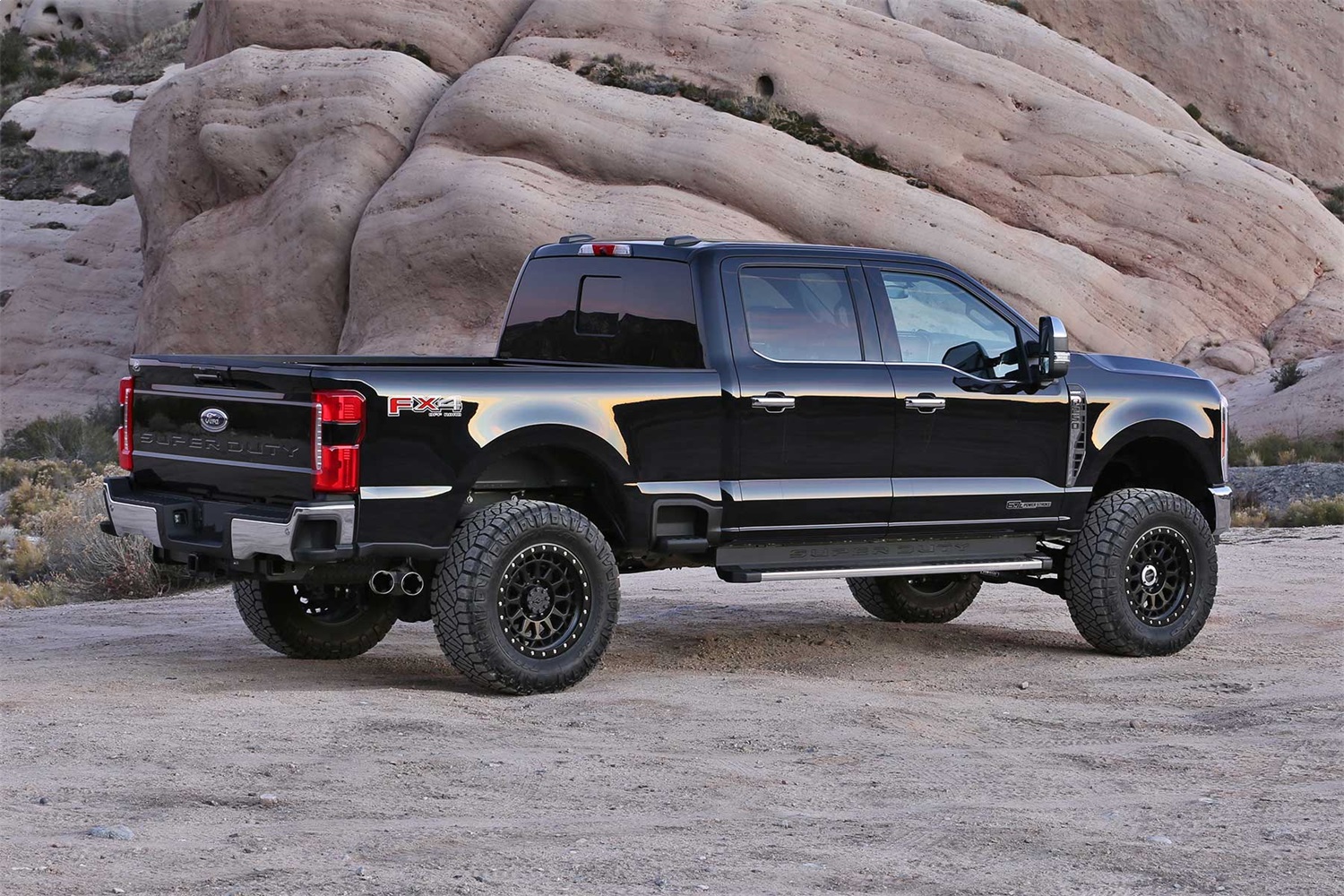

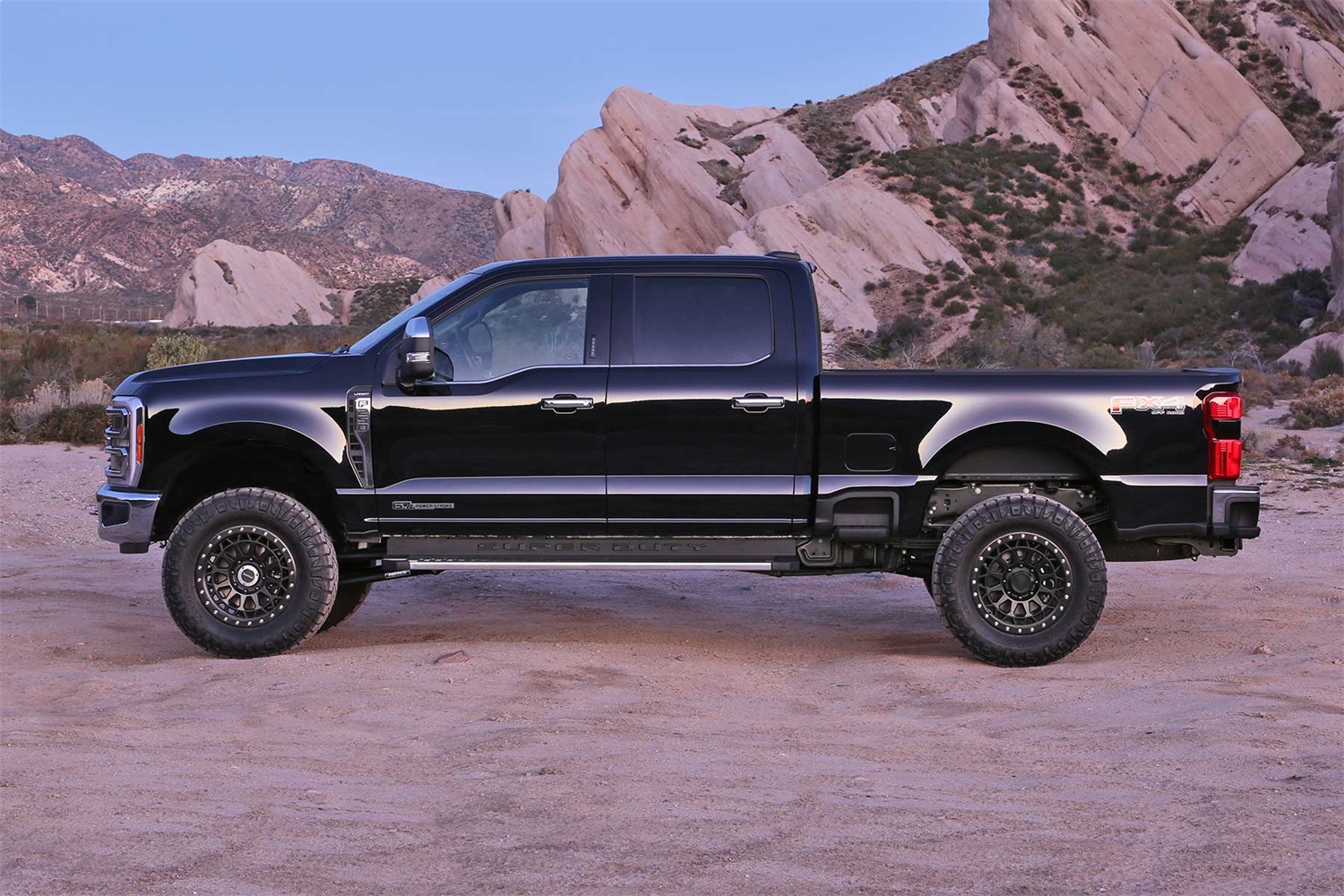

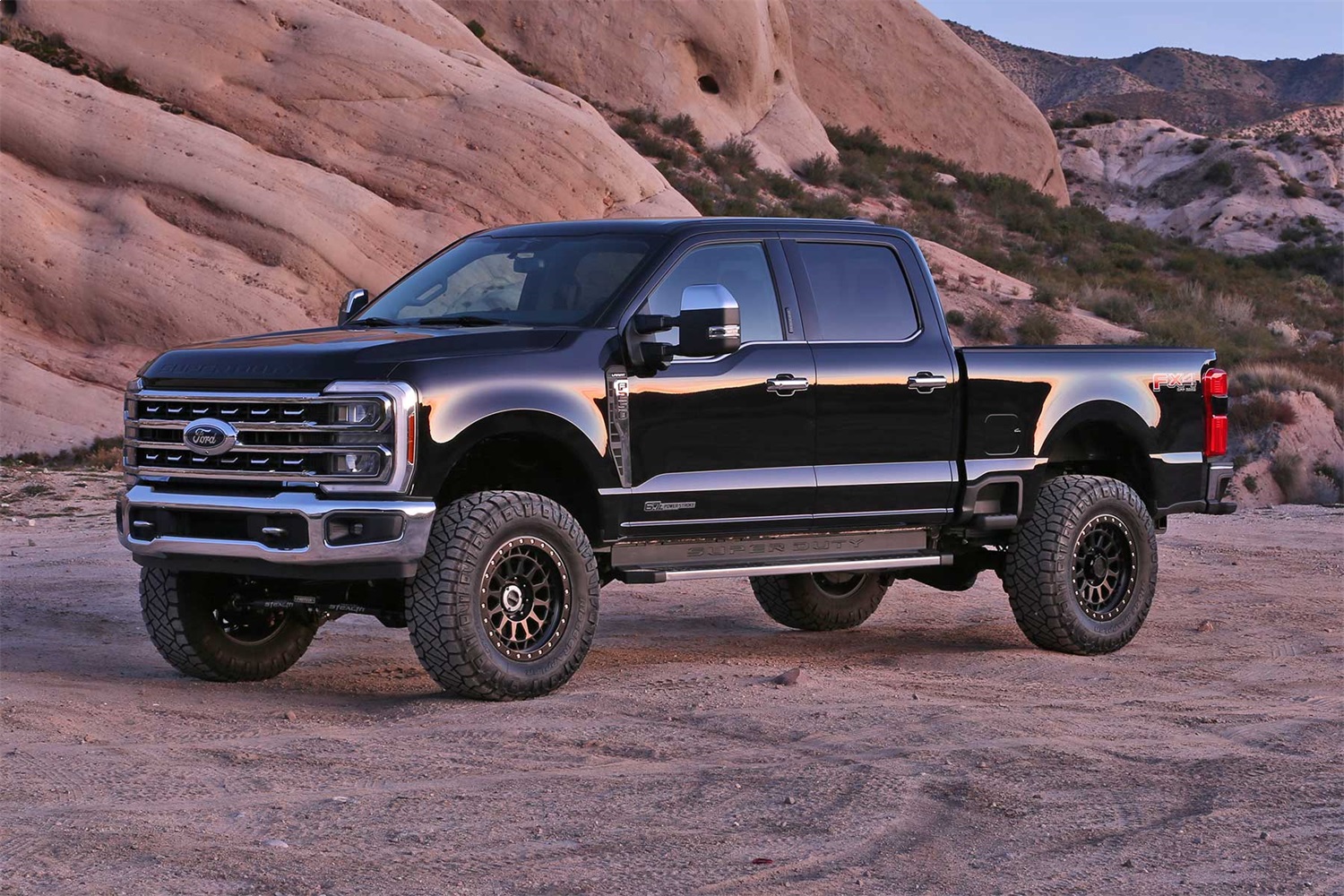

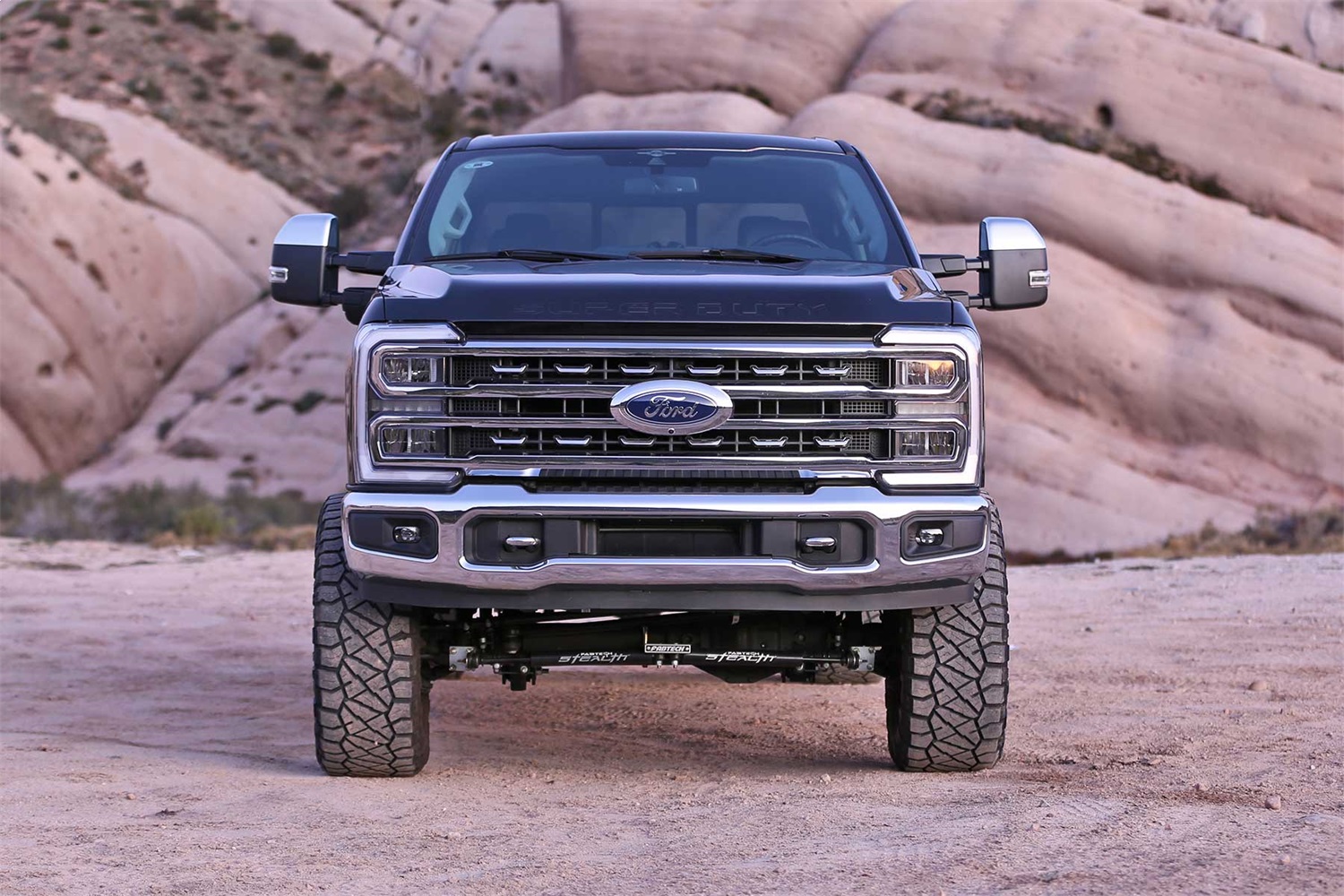

The Fabtech K2409DL is a premium 4-inch 4-Link suspension system with Dirt Logic 2.25 shocks designed for 2023-2025 Ford F250/F350 4WD diesel trucks, providing unsurpassed articulation and wheel travel for improved on-road performance and rugged off-road capability.

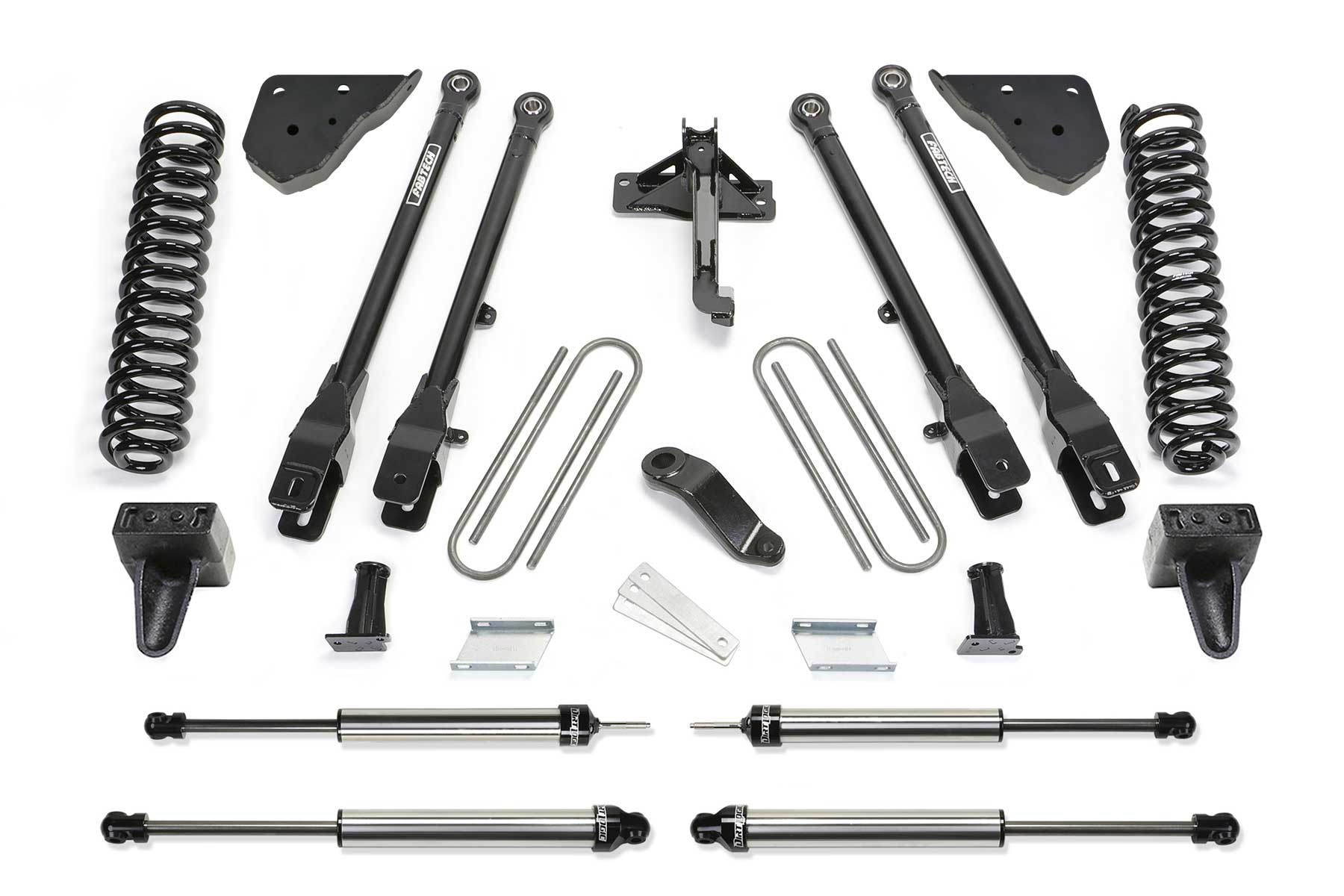

Complete 4-Link Conversion System:
This high-end system is a bolt-on replacement for the factory radius arm suspension and comes with everything needed to convert to a 4-Link front suspension, including replacement coil springs, billet sway bar links, track bar relocation bracket, pitman arm, and more. The rear lift utilizes a block and u-bolt kit.
Key Features:
- 2-inch OD heavy wall link arms with 1/4-inch thick steel brackets on the axle side featuring adjustable alignment cams to dial in caster for the new ride height
- Fabtech's legendary 5 Ton joints used on the frame pivot side for superior strength, proven in military use for over 10 years with a lifetime warranty against wearing out
- Preset coil springs manufactured to ensure no ride height settling over time
- Allows for a 2-inch increase in wheel travel over stock when used with Fabtech shock absorbers
- 1/4-inch thick steel track bar bracket repositions the factory track bar to center the axle, with super stout box-style design to eliminate deflection
- Forged steel pitman arm with high-strength material exceeding factory specifications, designed specifically for the Ford Super Duty
Dirt Logic 2.25 Shocks:
The included Dirt Logic 2.25 shocks feature a larger, more robust configuration that separates them from other replacement shocks, and are pretuned for each Fabtech suspension to account for larger tires, providing superior damping both on and off-road.
Performance Benefits:
The 4-Link design provides less caster change throughout the travel range which benefits on-road driving, while off-road it delivers more articulation than a radius arm suspension for increased terrain traversing at all speeds. This proven design has been tested in over 10 years of military applications.
Tire Fitment:
Accommodates up to 37x13.50R20 tires with proper wheel specifications and minor trimming. Note: Does not fit vehicles equipped with Ford onboard scale system.
