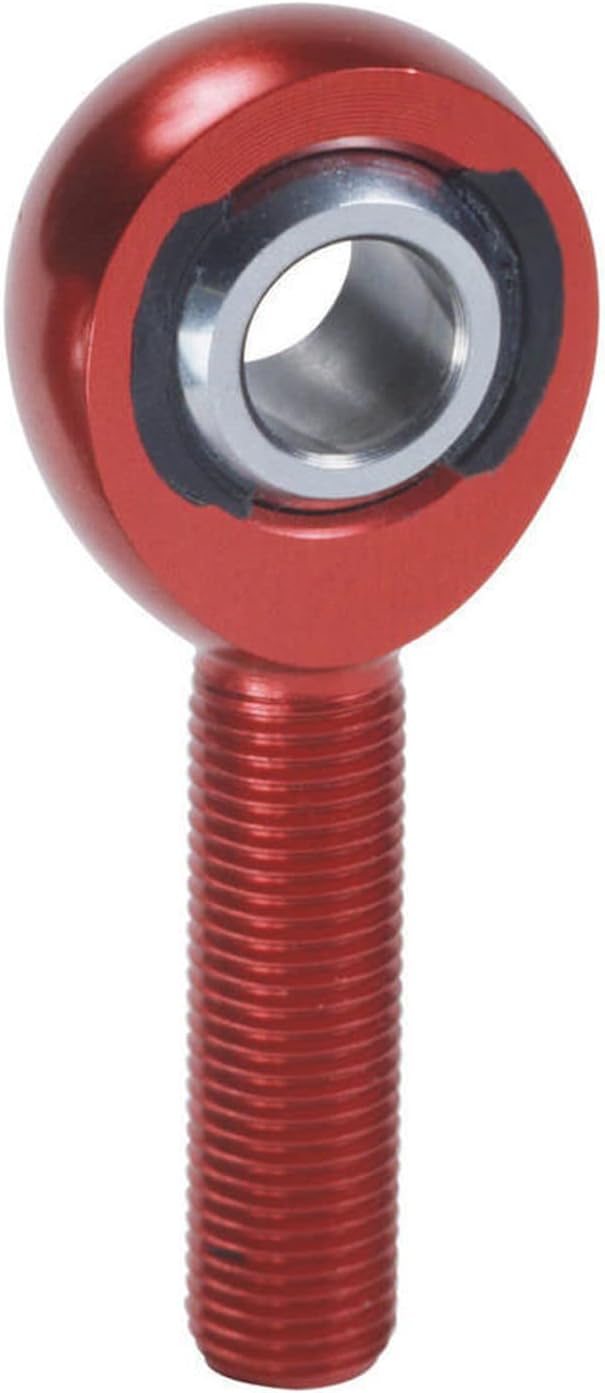

QA1 AMR10 Endura Aluminum Male Rod End 5/8 Bore Red

Part of: QA1 Endura Aluminum Male Rod End

Other options in this family: QA1 Precision Products AMR12

Manufacturer

Part Number

AMR10
Sale Price

$19.07

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 AMR10 is a high-performance aluminum male rod end from the Endura Racing Series, featuring QA1's innovative loaded slot design. This lightweight yet durable rod end is engineered specifically for motorsports applications where weight reduction is critical without sacrificing strength or reliability.

Endura Loaded Slot Technology:

QA1's exclusive Endura design features a machined groove around the interior body into which a Nylon/PTFE material is injection molded. This advanced race design provides self-lubrication and self-sealing protection against dirt and debris, while the injection molded material won't pound out like traditional PTFE liners, significantly extending rod end life.

AM Series Aluminum Construction:

The AMR10 features an aircraft-grade aluminum body with red anodized finish as standard. Over 10% lighter than traditional three-piece aluminum rod ends, the AM Series delivers the most wear-resistant aluminum rod end design available. The male threaded shank provides 5/8 inch threading for secure installation.

Component Specifications:

  • Ball: 52100 bearing steel, heat treated, hard chrome plated, and precision ground for smooth articulation
  • Race: Injection molded Nylon/PTFE compound that is self-lubricating and self-sealing
  • Body: Aircraft aluminum with red anodized coating
  • Bore Size: 5/8 inch
  • Thread Size: 5/8 inch male

Exclusive Performance Features:

  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • Maintenance-free operation with integrated sealing
  • Superior wear resistance compared to traditional designs

Ideal for suspension linkages, control arms, trailing arms, and other racing applications where aluminum construction offers the perfect balance of strength and weight savings.

Products specifications

A (+/-0.015)

2.625

Approx Bearing Weight

0.18

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.625

D (+/-0.010)

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

16

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.750 in.

Rod End Centerline Length

2.625 in.

Rod End Construction

2-piece

Rod End Finish

Red anodized

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.750 in.

Rod End Material

Aluminum

Rod End Misalign Angle (degrees)

16 degrees

Rod End Static Load Capacity

8,600 lbs.

Rod End Static Load Capacity (lbs)

8,600 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

5/8-18 RH in.

T (+/-0.005)

0.562

Thread Length

1.562 in.

Thread Type

Right Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

8600

W (+/-0.005)

0.75

Title

QA1 Suspension Rod End Bearing AMR10
