Wiseco 4513M06700 High-Compression Forged Piston Kit 67mm 13:1 Honda CBR600F2 CBR600F3

(2001-2004 Honda CBR600F F4I; 1999-2000 Honda CBR600F F4; 1995-1998 Honda CBR600F F3; 2004 Honda CB600F 599; 1990 Honda CBR600F; 1991-1994 Honda CBR600F F2)

Manufacturer

Part Number

4513M06700
Black Friday Price

$197.99

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 4513M06700 is a high-performance forged piston kit designed for Honda CBR600F2 and CBR600F3 motorcycles. Featuring a 67mm bore diameter (+2mm oversize) and a 13.0:1 high-compression ratio, this Pro-Lite piston kit is engineered to deliver increased displacement of 637cc and a meaningful boost in power output over the stock configuration.

Wiseco pistons are forged from high-silicon aluminum alloy, providing superior strength, reduced expansion at operating temperatures, and exceptional durability under high-stress racing and performance conditions. The innovative forging design and optimized piston skirt geometry work together to maximize horsepower and torque throughout the RPM range.

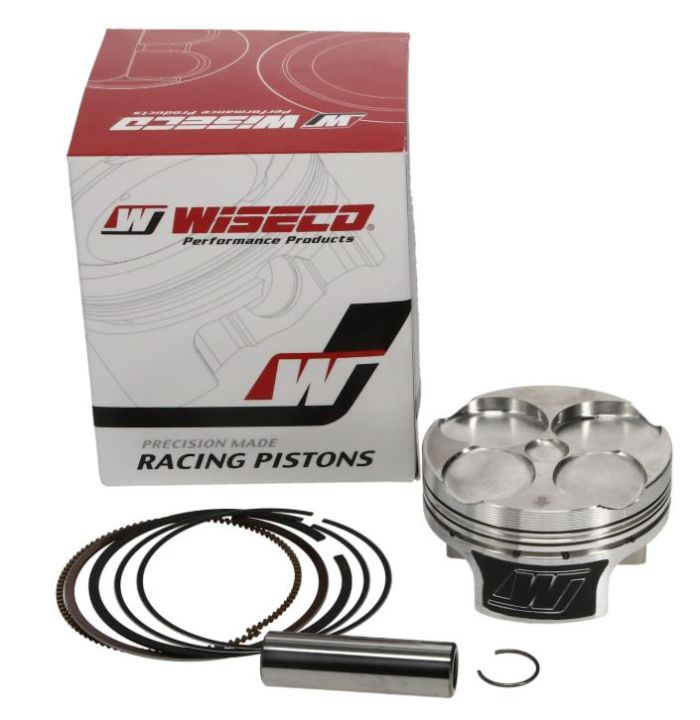

Kit Includes:

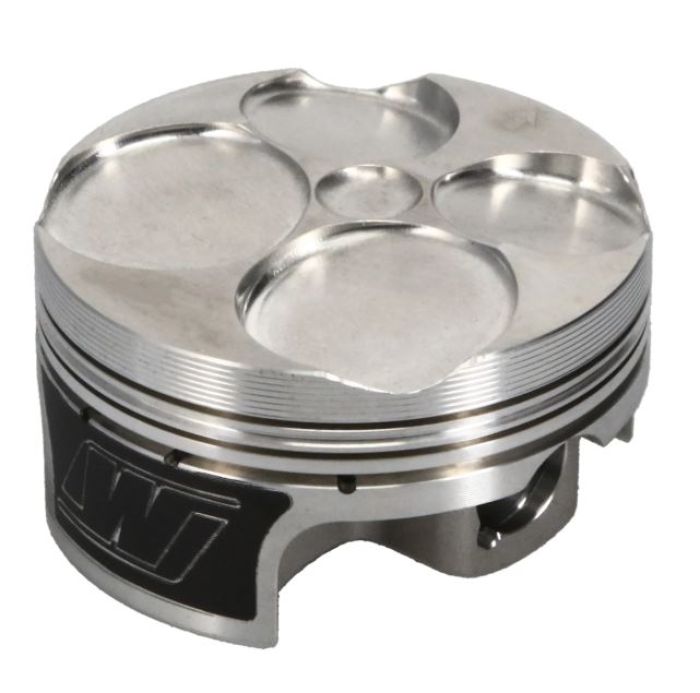

  • 1 Forged aluminum piston (67.00mm / +2mm oversize)
  • 1 Piston ring set
  • 1 Wrist pin
  • 2 Wrist pin circlips

Key Specifications:

  • Bore Diameter: 67.00mm (+2mm oversize)
  • Compression Ratio: 13.0:1 (High Compression)
  • Displacement: 637cc
  • Wiseco Part Number: 4513M06700
  • Kit Reference: R637 / 2638XA

Important Installation Note: This is an oversize piston. Cylinder boring or sleeving to the appropriate 67mm specification is required prior to installation. Gaskets, cylinder sleeves, and top-end bearings are not included unless otherwise stated.

Products specifications

Fits

2001-2004 Honda CBR600F F4I; 1999-2000 Honda CBR600F F4; 1995-1998 Honda CBR600F F3; 2004 Honda CB600F 599; 1990 Honda CBR600F; 1991-1994 Honda CBR600F F2

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Engine Type

ICE

Product Type

Engine Piston Kit

Industry

Powersports

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

177976

Product Series

4 Stroke Forged Series

Product Market

Street

Skirt Coating

No

Bore Diameter

67.00

Piston Diameter

66.95

Piston oversize

2.00

Compression Ratio Actual

13:1

Title - Web

Honda Wiseco Piston Kit - 67.00 mm Bore

Title

Wiseco 4 Stroke Forged Series Piston Kit, 67.00 MM Bore, 13:1 CR

Included Components

Ring Set #2638XA, Wrist Pin #S532, CirClip #CW17
