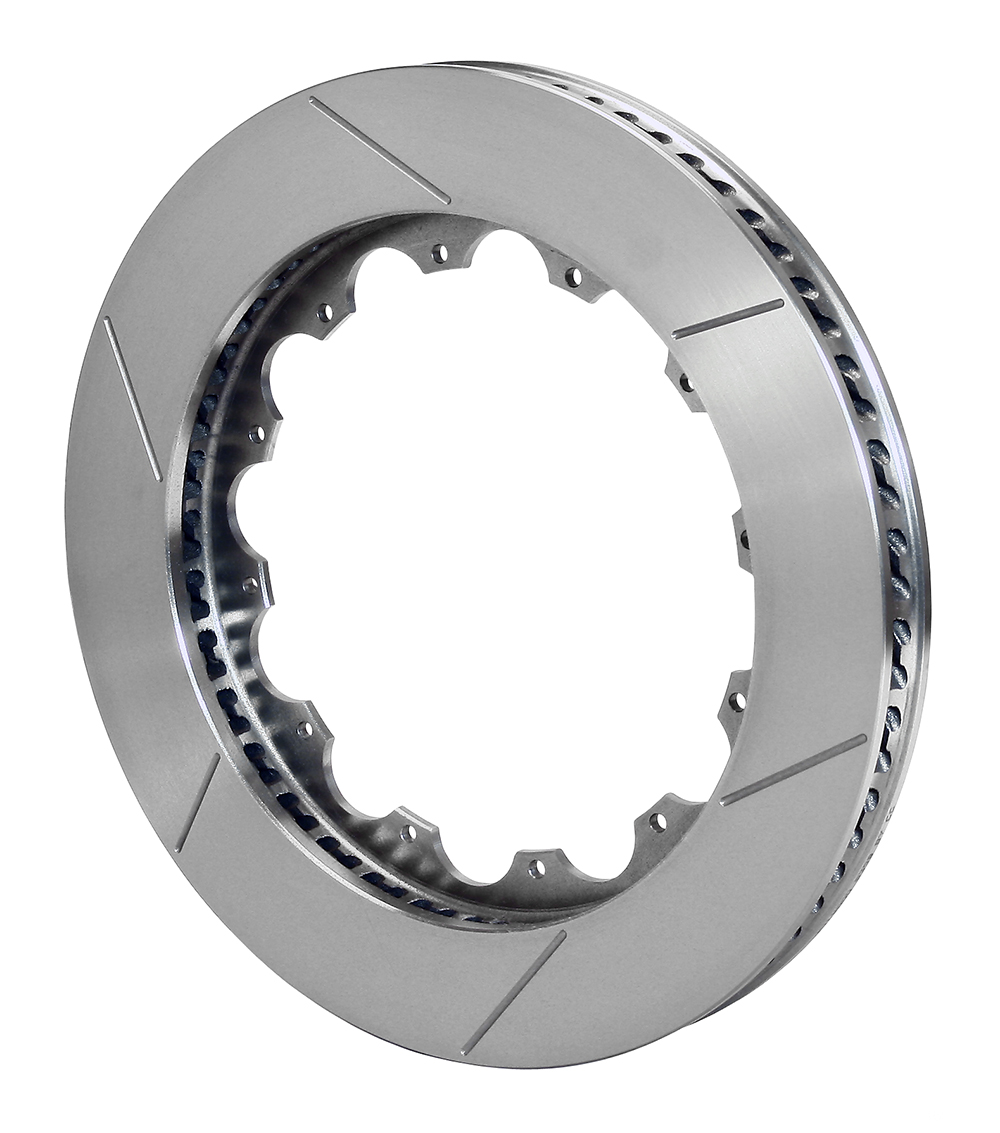

Wilwood 160-9788 GT 72 Curved Vane Spec-37 Disc Brake Rotor Left Hand

Manufacturer

Part Number

160-9788
Black Friday Price

$269.95

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 160-9788 is a GT Series SV 72 Curved Vane Spec-37 disc brake rotor (Left Hand) engineered for high-performance and extreme-duty braking applications. This rotor is manufactured from a proprietary iron alloy developed specifically by Wilwood to endure extreme thermal stress while providing superior resistance against distortion, warping, cracking, and premature wear.

The alloy formulation draws on technology and materials originally developed for Wilwood's extreme-duty military-specification rotors, ensuring a level of metallurgical quality rarely found in street and competition brake components.

Key Features:

  • Proprietary Iron Alloy Construction – Developed for maximum heat resistance and long-term dimensional stability
  • 72 Curved Vane Ventilation – Spec-37 vane configuration promotes efficient heat dissipation for consistent fade-free performance
  • GT Series Asymmetrical Face Slot Pattern – Proven slot design helps clear gas, dust, and debris from the rotor face for improved bite and pad conditioning
  • Individual Dynamic Balancing – Each rotor is individually balanced to eliminate vibration and deliver the smoothest possible braking feel
  • Left-Hand (LH) Designation – Directional curved vane design requires correct side-specific installation for optimal airflow and cooling
  • Military-Derived Technology – Alloy formulation is a derivative of materials used in Wilwood's extreme-duty military-spec rotor program

The Wilwood 160-9788 is the left-hand application of the GT SV Spec-37 rotor family and is designed to pair with the corresponding right-hand rotor for a matched, balanced brake system. Whether used on the track or in demanding street performance builds, this rotor delivers the thermal durability and precision braking feel that Wilwood is known for.

Products specifications

Balanced

Yes

Bedded

No

Diameter (in.)

14.25

Far Side Inside Diameter (in.)

10

Lug ID / Registration (in.)

8.63

Mount Side

L/H

Rotor Bolt Circle (in.)

12 x 9.19

Rotor Mount Hole Size (in.)

0.251

Rotor Size

14.25x1.25in

Style

GT Slotted

Surface Finish

Plain

Type

GT

Vane Count

72 CV

Weight(Lbs)

18.7

Width (in.)

1.25
