Maxtrac Suspension K947585FL 8" MaxPro Elite Lift Kit with Forged 4-Link Arms and FOX Shocks

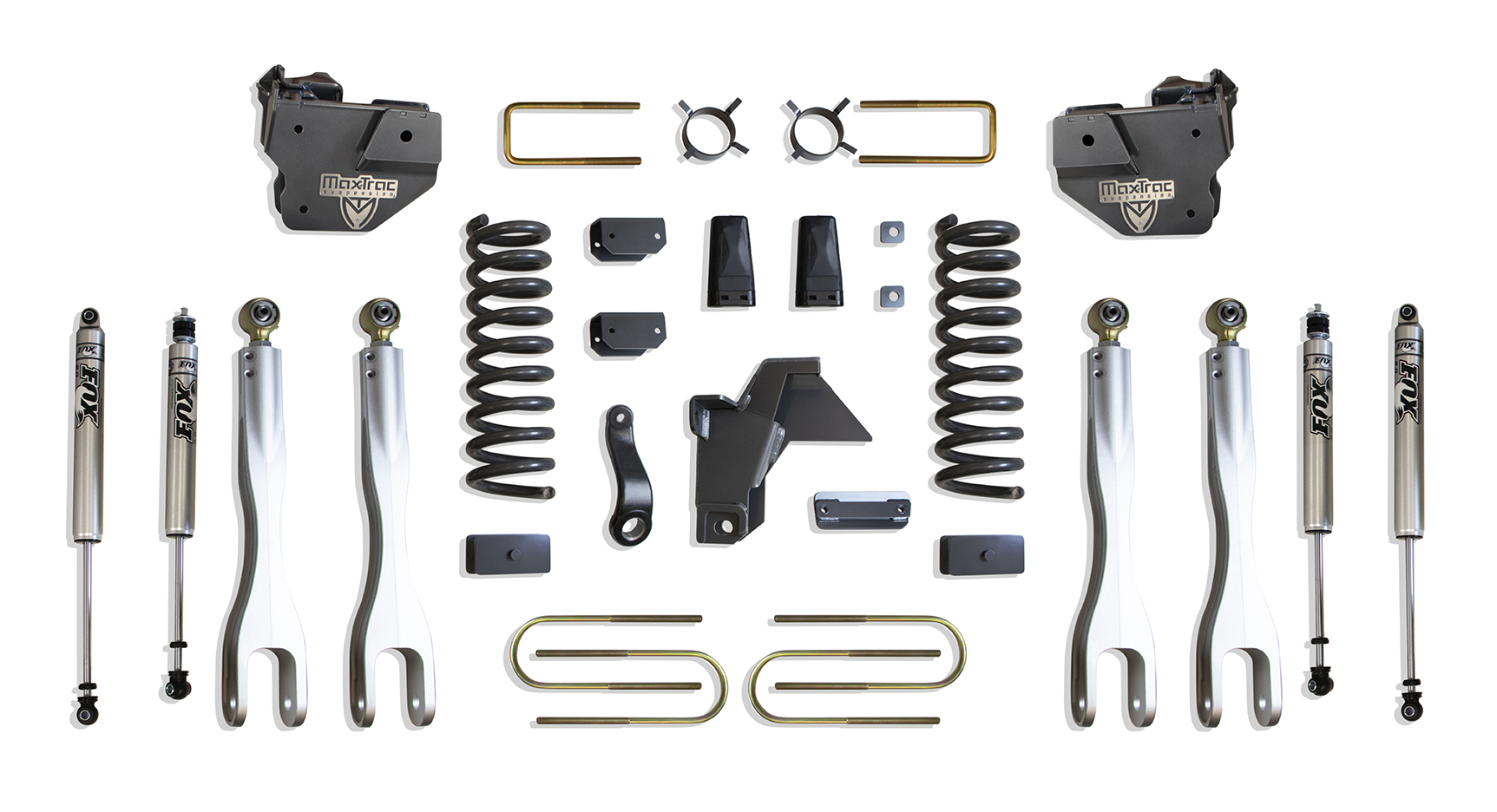

The Maxtrac Suspension K947585FL is a complete 8-inch MaxPro Elite lift kit featuring a premium 4-link suspension system with FOX 2.0 Performance Series shocks, designed specifically for 2019-2025 Dodge Ram 3500 4WD diesel trucks. This comprehensive lift kit delivers superior off-road performance and enhanced ground clearance for running larger tires up to 40 inches.

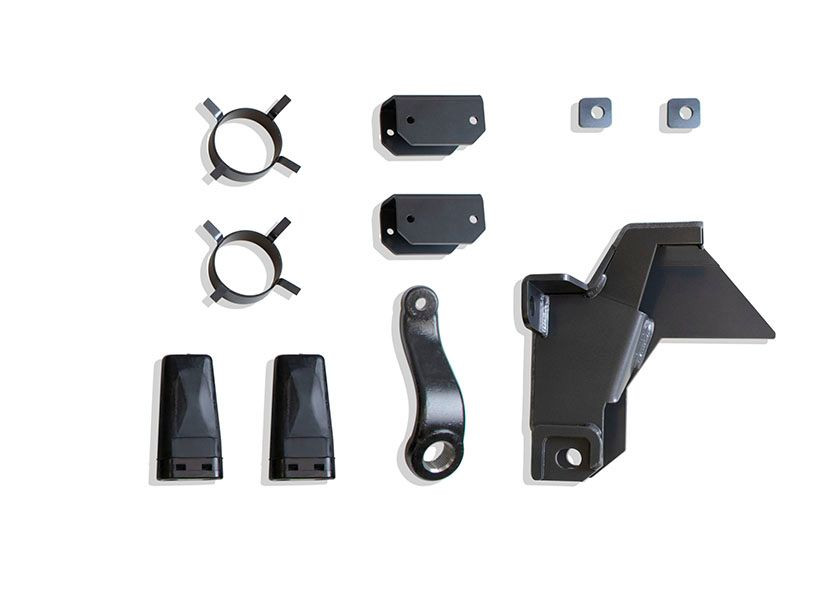

Front Suspension Components:

• 8-inch diesel-rated lift coils engineered for heavy-duty applications
• Forged aluminum 4-link arms constructed from 6082 T-6 aircraft-grade material with adjustable caster settings, chromoly sleeves at axle end, and spherical rod ends at bracket end
• Track bar bracket and hardware for proper axle alignment
• Pitman arm for correct steering geometry
• Sway bar brackets and extended bump stops
• FOX 2.0 Performance Series front shocks

Rear Suspension Components:

• 5.5-inch coil spacers for balanced lift height
• Lift blocks and U-bolts
• Brake line brackets for safe brake line relocation
• FOX 2.0 Performance Series rear shocks

Key Performance Benefits:

• Controls axle wrap, improves departure angles, and delivers superior power transfer to the ground
• Steel mounting brackets made from 1/6-inch plate steel install without modifications
• 100% bolt-on installation with vehicle-specific engineering for precise fitment
• Clears up to 40" x 13.50" tires on 8-9 inch wide rims
• Requires 18-inch wheels or larger with 5.5-inch backspacing or less

The MaxPro Elite 4-link system provides adjustable caster correction and improved suspension articulation compared to traditional radius arm designs. All components are backed by a limited lifetime warranty against defects in materials and workmanship. Note: Fender trimming may be required depending on wheel and tire combination. Does not fit 2WD models or cab/chassis fleet trucks.
