Maxtrac Suspension K947585F 8" MaxPro Lift Kit with FOX 2.0 Shocks

The Maxtrac Suspension K947585F is a complete 8-inch MaxPro Elite lift kit engineered specifically for 2019-2025 Dodge RAM 3500 4WD diesel trucks. This comprehensive suspension system delivers exceptional off-road performance and capability while maintaining excellent on-road ride quality.

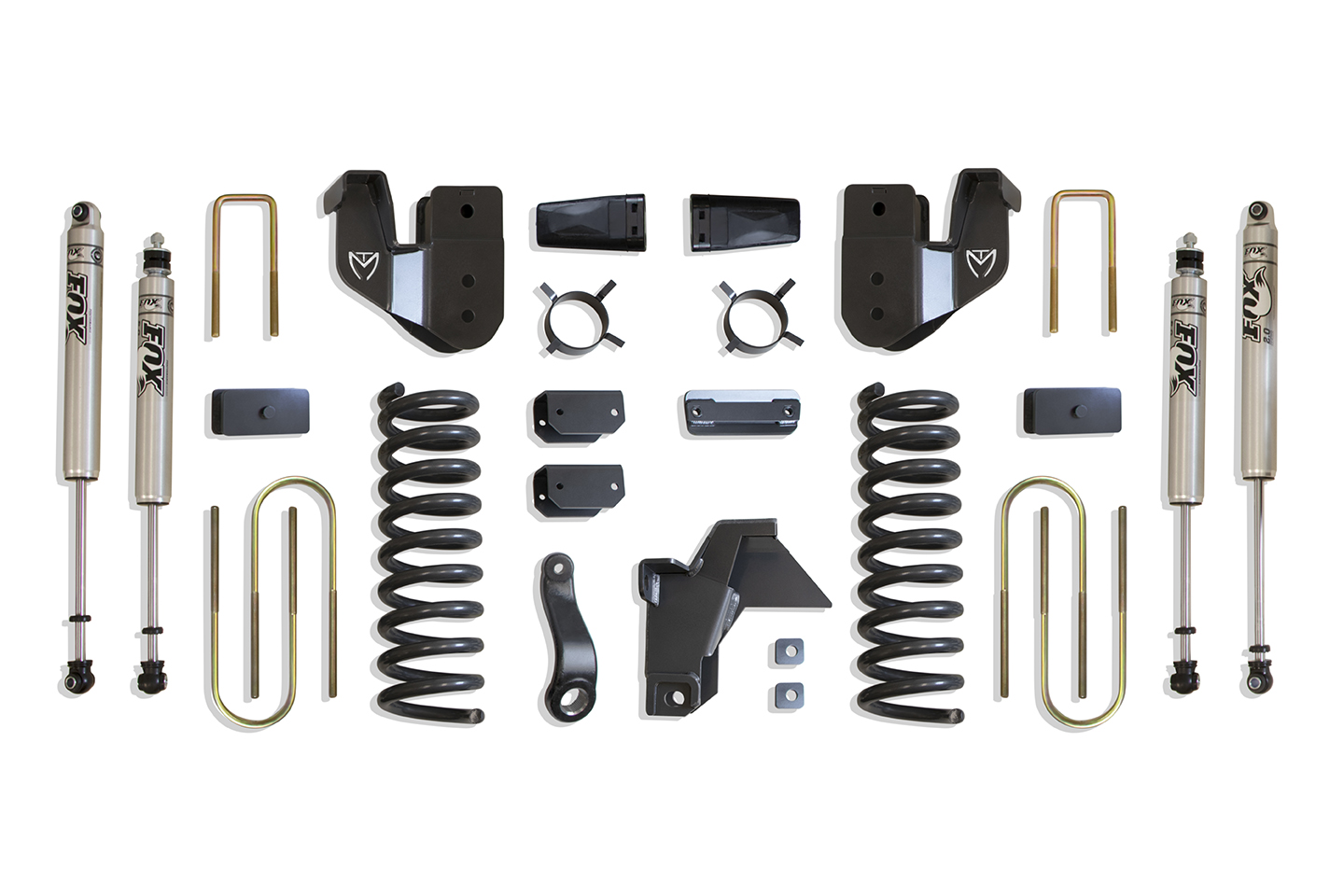

Complete Kit Includes:

• Heavy-duty diesel coil springs for proper load support
• Radius arm brackets for improved suspension geometry
• Track bar bracket for proper alignment
• Drop pitman arm for corrected steering angles
• Sway bar brackets and hardware
• Rear coil spacers providing 5.5 inches of rear lift
• Bump stops and bump stop extensions
• Front and rear FOX 2.0 Performance Series shocks
• All necessary hardware for installation

Performance Specifications:

• Front lift height: 8 inches
• Rear lift height: 5.5 inches
• Accommodates up to 38-inch tires with proper wheel selection
• Factory wheels and tires can be reinstalled
• Brackets manufactured from 1/6-inch plate steel
• No permanent modifications required

This radius arm system maintains factory-style suspension geometry while providing significant ground clearance for larger tires and aggressive off-road use. The included FOX 2.0 Performance Series shocks deliver superior damping and control both on and off the pavement. All components are custom-engineered for precise fitment and are backed by a limited lifetime warranty against defects in materials and workmanship.

Important Installation Notes: Requires 18-inch or larger wheels. Maxtrac Suspension does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing, as doing so may void the manufacturer warranty. Professional installation is recommended for proper alignment and safety.
