Maxtrac Suspension K947585 8" Lift Kit with Max Trac Shocks for Ram 3500 4WD Diesel

The Maxtrac Suspension K947585 is a complete 8-inch lift kit engineered specifically for 2019-2024 Ram 3500 4WD diesel trucks. This comprehensive suspension lift system delivers exceptional off-road performance and increased ground clearance at an outstanding value.

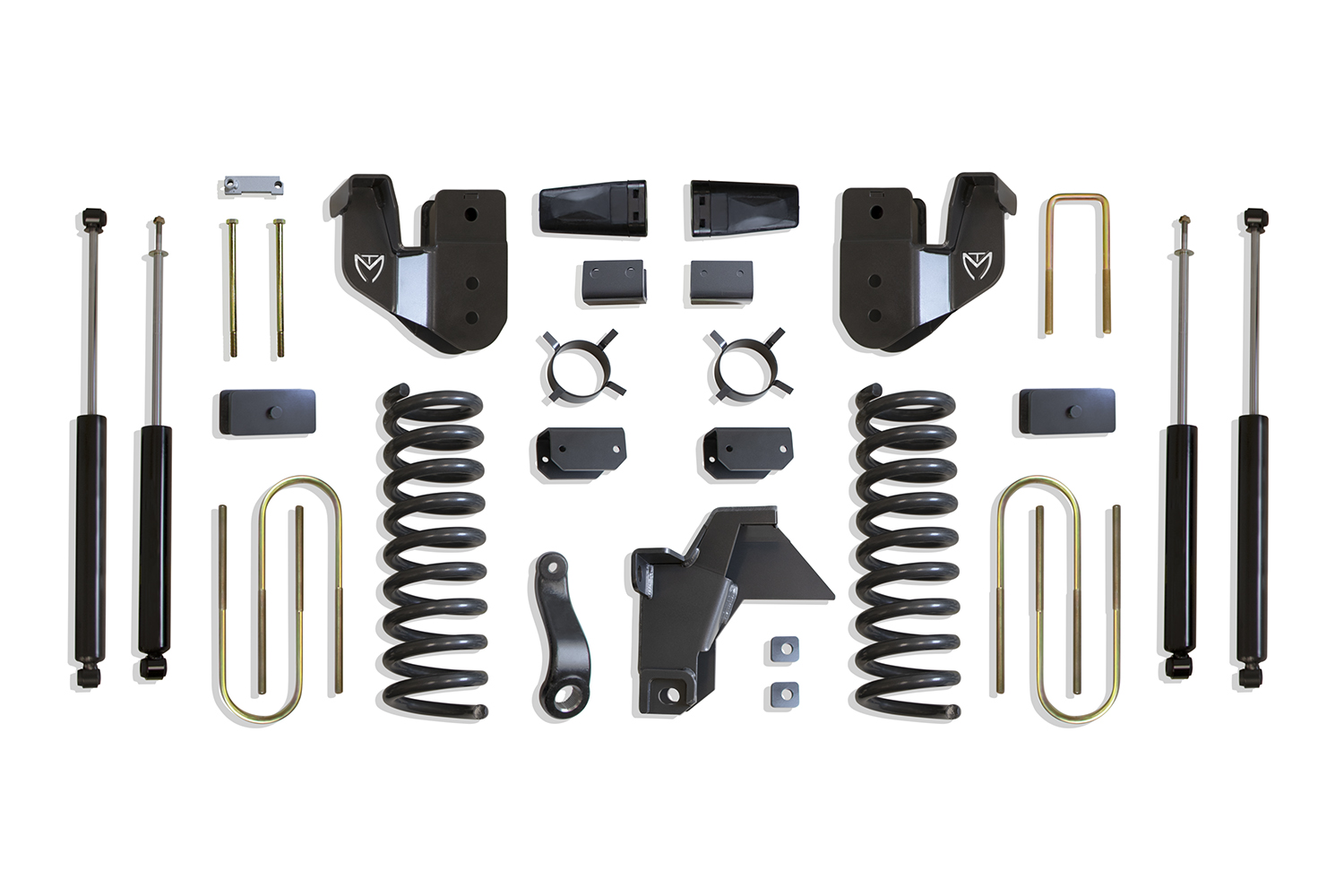

Front Lift Components:

• 8-inch front lift coil springs - approximately 15% firmer than factory springs for improved stability with a higher center of gravity
• Radius arm brackets designed for use with factory radius arms
• Track bar brackets for proper suspension geometry
• Front Max Trac performance shocks
• Pitman arm for correct steering alignment
• Sway bar brackets and bump stops

Rear Lift Components:

• 5.5-inch rear coil spacers
• Lift blocks and U-bolts
• Rear Max Trac performance shocks
• Brake line brackets for safe operation

Tire Fitment:

• Accommodates up to 40" x 13.50" tires on 8"-9" wide rims
• Requires 18" rims or larger with 5.5" backspacing or less
• Fender trimming may be required for maximum tire size
• Factory wheels and tires can be reinstalled

Important Notes:

• Designed for 4WD models only - does not fit 2WD
• Does not fit cab/chassis fleet model trucks or Power Wagon models
• Kits may fit gas models but have not been tested on them
• Estimated installation time: 7 hours

All components are backed by MaxTrac's limited lifetime warranty against defects in materials or workmanship. This lift kit maintains the Ram HD's towing and hauling capability while providing the clearance needed for serious off-road adventures.
