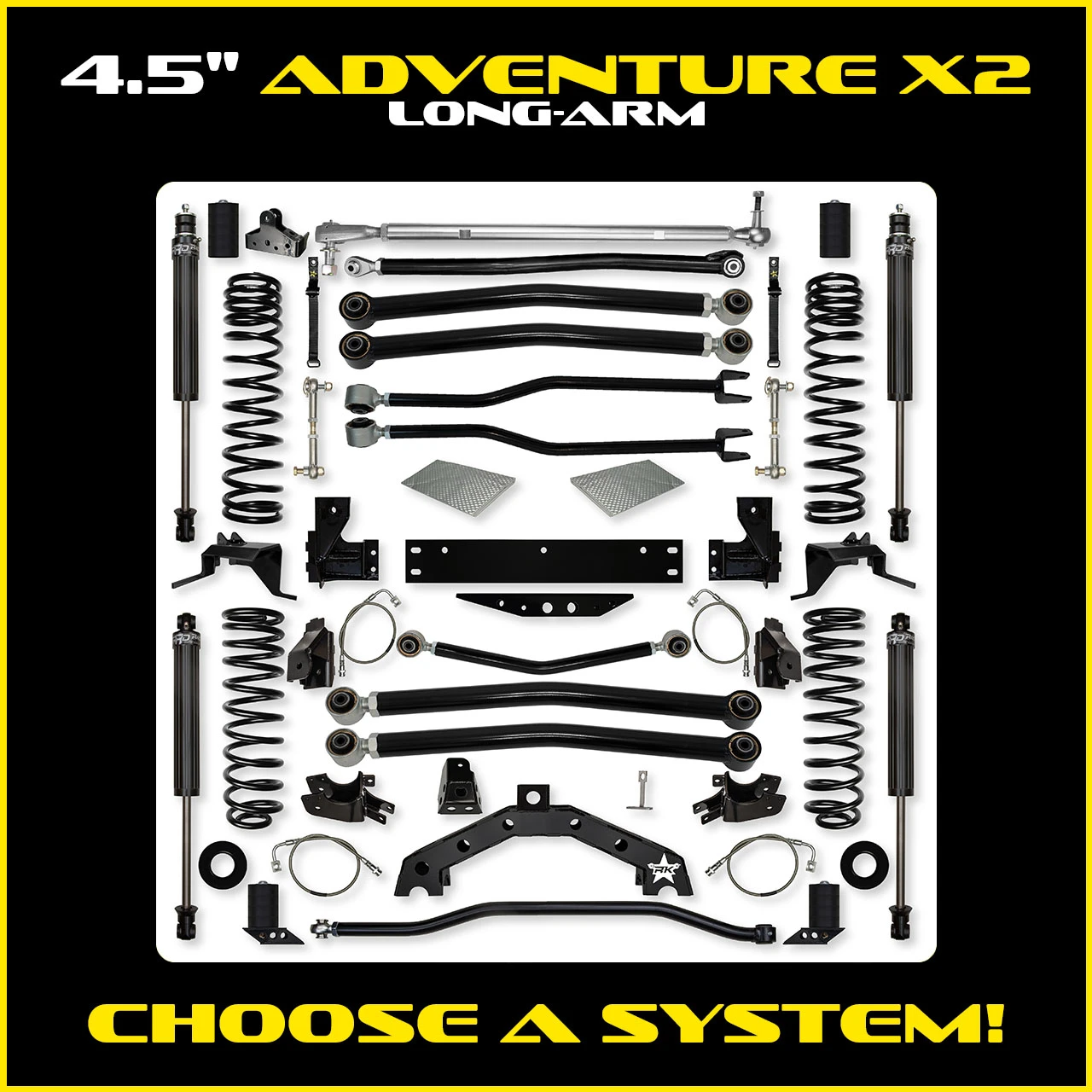

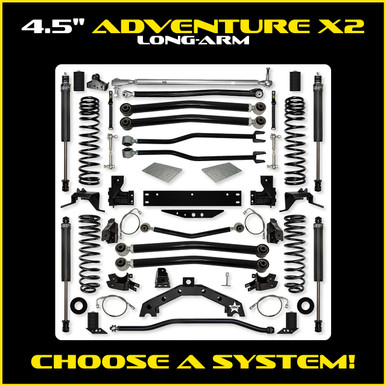

Rock Krawler JK45AX2LA-2 4.5-Inch Adventure-X2 Long-Arm Suspension Lift System 2-Door

Manufacturer

Part Number

JK45AX2LA-2
Sale Price

$4,270.80

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Rock Krawler JK45AX2LA-2 is a 4.5-inch Adventure-X2 Long-Arm Suspension Lift System engineered for the 2-door Jeep Wrangler JK. Designed to deliver the ideal balance between daily-driver comfort and hardcore off-road performance, this complete long-arm suspension system transforms the capability of your Wrangler without compromising on-road drivability.

Adventure-X2 Suspension Architecture:

  • High Clearance 4-Link Long-Arm Front Suspension — full high-clearance 4-link geometry for maximum front-end articulation and ground clearance
  • Independent High Clearance 3-Link Long-Arm Rear Suspension — enhanced rear instant centers and roll centers deliver the smoothest-riding 3-link setup available
  • 3.5" Rear Axle Ground Clearance Gain — new high-clearance X2 axle bracket system provides 3.5 inches of added clearance under the rear axle versus stock
  • Rear Upper Shock Relocation Brackets — repositioned mounts ensure no loss of shock or suspension travel
  • Service-Free Adventure Series Joints — Teflon-lined inner sleeves with steel bolt-through sleeves eliminate the need for greasing while resisting chafing, twisting, and bushing deformation
  • Weld-On Long-Arm Mounting Brackets — OEM-style weld scheduling for a clean, precision installation
  • Heat Shield Thermal Barrier Products — OEM-style thermal protection for front control arm joints at the frame
  • Adjustable Rear Anti-Squat with X2 Geometry — tunable rear suspension behavior for on-road and off-road driving preferences
  • Lifetime Warranty Coverage on all hard parts

System Includes:

  • (2) Front frame-side weld-on long-arm mounts
  • (1) Weld-on raised trackbar mount
  • (1) Top Mount Pro-X drag link
  • (2) Heat Shield Products thermal barriers
  • (1) 1/4" thick laser-cut steel cross member
  • (2) Front high-clearance adjustable lower control arms
  • (2) Front adjustable upper control arms
  • (1) Front adjustable anti-wobble track bar

Installation Notes: Minor exhaust rerouting is required on the driver's side before the collector, and should be completed prior to installation. Rear installation requires removal of OEM axle-side brackets and welding of the provided rear axle-side control arm, shock, sway bar link bracket, track bar bracket, and rear axle truss. OEM frame-side rear shock mount must be removed and replaced with the supplied weld-on mount. Installing limiting straps after setup is recommended to prevent over-extension of suspension components. This system also allows the rear axle to be repositioned up to 1" rearward of stock, centering it under typical aftermarket flat fenders for improved tire clearance.
