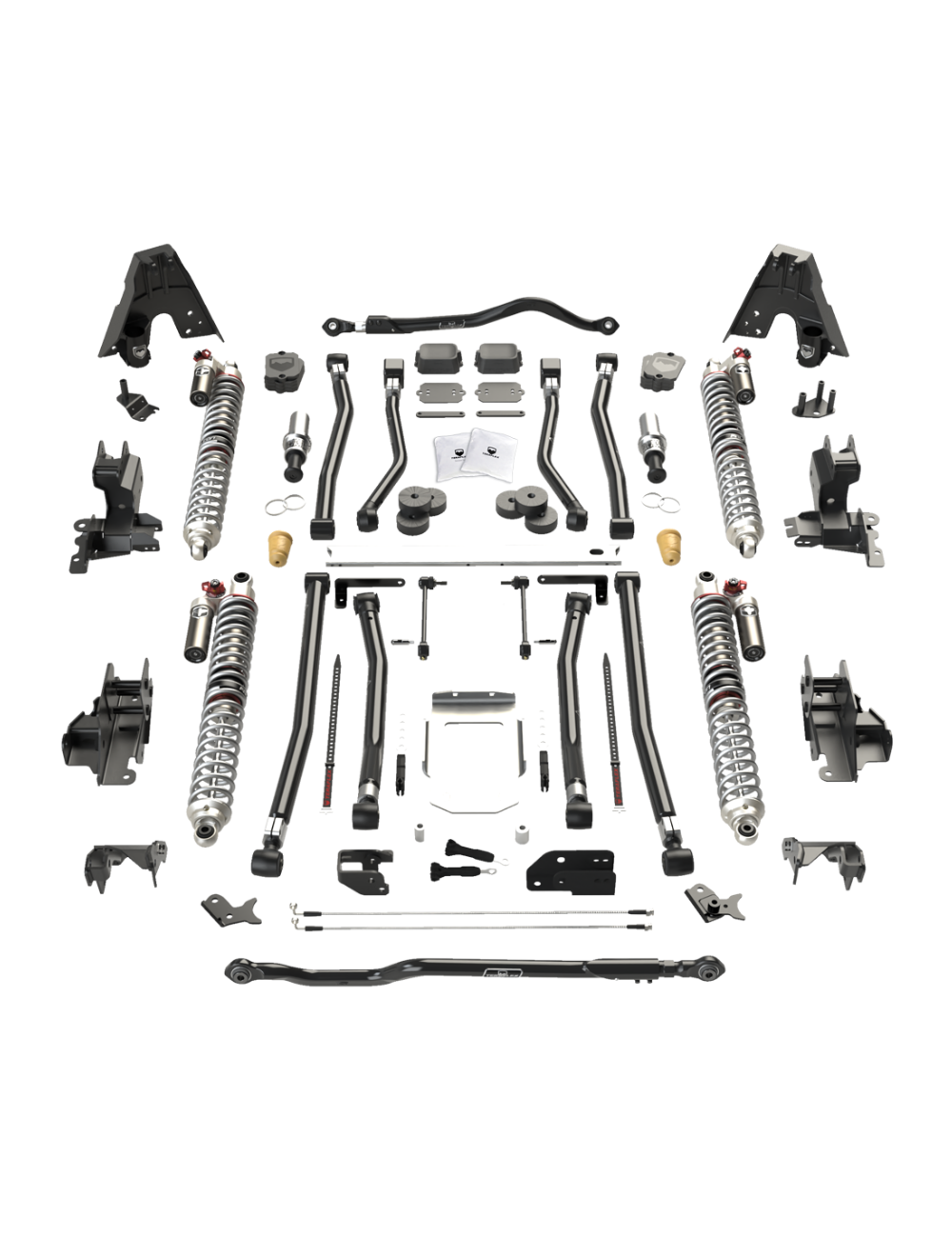

The TeraFlex Alpine RT Coilover Suspension System is a purpose-built long-arm coilover lift system engineered specifically for the 4-door JL Wrangler, with powertrain-specific tuning for every available engine option. MPN 1357021 is configured for the 3.0L Diesel with Front HD 3.25-inch diameter axle and Rear HD 3.25-inch diameter axle (F60/R60), delivering a 4.5-inch lift with ±1.25-inch adjustability via quick-adjust snap rings.
At the core of this system are Falcon 3.3 Series coilover shocks — designed from the ground up for silent, high-performance operation. Unlike conventional coilover shocks that suffer from spring twang, slider zipping, and slider slap, the Falcon 3.3 shocks feature a hard-anodized shock body that acts as a precision bearing surface for sealed, lubricated spring sliders with roller-bearing spring seats. Sealed Gimbal Bearing shock mounts, combined with TeraFlex's proprietary coilover mount design, allow full suspension cycling without component contact or unwanted noise.
The RT4 Long Arm Suspension platform provides superior control, articulation, and stability both on- and off-road. Bolt-on 1/4-inch laser-cut reinforced coilover brackets simplify installation, while JL-specific spring rates and shock tuning ensure the system is optimized for the JL Wrangler's weight distribution and geometry.
Key Features:
- 4.5-inch lift with ±1.25-inch adjustability using quick-adjust snap rings
- Falcon 3.3 Series coilovers with Quick Adjust tuning
- 13-inch stroke, front and rear
- True Dual-Rate performance via adjustable crossover
- Designed for standard 3.0-inch springs
- Sealed Gimbal Lock Bearings — coated, booted, and sealed for silent shock orientation control
- Roller-bearing spring seats for noiseless compression and extension
- Refreshed Speed Bumps provide 4x the bottoming resistance, silently
- RT4 Long Arm Suspension for enhanced control, flex, and stability
- Bolt-on 1/4-inch laser-cut reinforced coilover brackets
- Race-inspired performance with improved dynamic roll control and low-speed damping
- JL-specific spring rates and powertrain-matched shock tuning
- Compatible with Tera60 or other HD axles with 3.25-inch axle tube diameter (front and rear)
Installation Notes:
- Requires wheels with 4.75-inch backspacing or less — or 1.75-inch Wheel Offset Adapter Pair (#1057000 x2, not included) for stock wheels
- Requires front driveline double cardan upgrade due to increased suspension travel
- Requires cutting and removal of factory control arm bracketry and spring buckets
- Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards
- Some light inner fender liner trimming required
- Professional alignment required after installation
- Not compatible with 2-door JL Wrangler models
Axle Configuration — SKU 1357021: Front HD 3.25-inch Diameter Axle / Rear HD 3.25-inch Diameter Axle — 3.0L Diesel
Related SKUs by Powertrain (Front HD 3.25" / Rear HD 3.25"):
- 1357021 — 3.0L Diesel
- 1357022 — 2.0L e-Torque
- 1357023 — 3.6L e-Torque
- 1357024 — 2.0L / 3.6L
- 1357025 — 4XE
- 1357026 — 392
