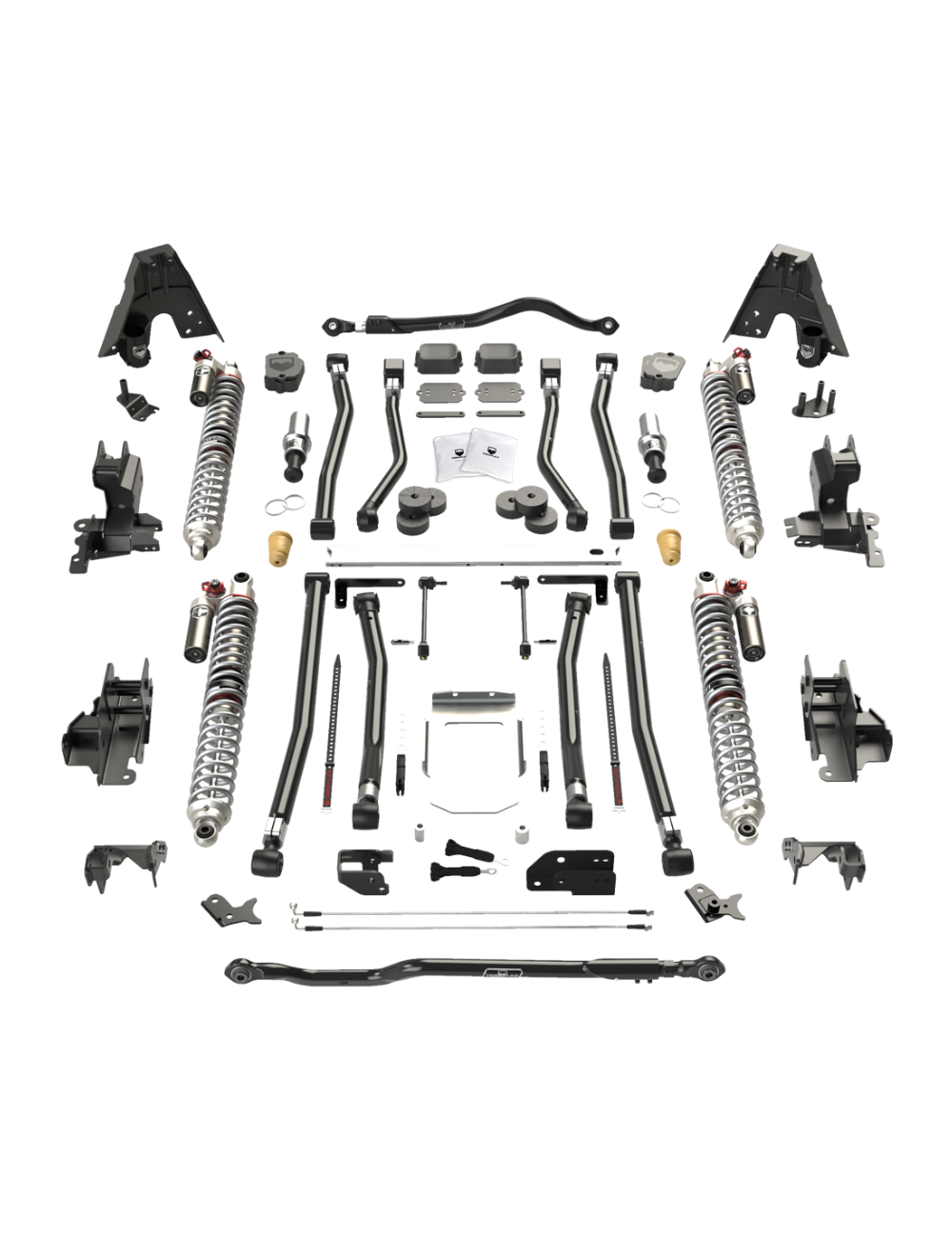

The TeraFlex Alpine RT Coilover Suspension System (PN 1357011) is an engineering-forward long-arm coilover system purpose-built for the 4-door 2018-and-up Jeep Wrangler JL Rubicon. This specific variant is configured for a Front JL Rubicon axle paired with a Rear HD 3.25-inch diameter axle, and is tuned for the 3.0L Diesel powertrain — ensuring optimal spring rates and damping calibration matched to that drivetrain's unique weight and torque characteristics.
At the heart of this system are Falcon 3.3 Series coilover shocks, designed from the ground up to eliminate the noise issues that plague conventional coilover setups. TeraFlex engineers specifically addressed Spring Twang, Slider Zipping, Slider Slap, internal bypass clicking, and shock mount bushing squeak through a series of innovative design solutions — including sealed Gimbal Bearing shock mounts, hard-anodized shock bodies used as precision bearing surfaces, and roller-bearing spring seats that allow noiseless spring movement even under torsional load.
The RT4 Long Arm Suspension geometry delivers superior control, flex, and stability compared to short-arm configurations, while bolt-on 1/4-inch laser-cut reinforced coilover brackets simplify installation. Quick-adjust snap rings allow ride height to be dialed in within a +/- 1.25-inch range around the nominal 4.5-inch lift. Refreshed Speed Bumps provide 4X the bottoming resistance of traditional designs — silently.
Key Features:
- 4.5-inch lift with +/- 1.25-inch adjustability via quick-adjust snap rings
- 13-inch stroke, front and rear
- Falcon 3.3 Series Quick Adjust shock tuning
- Designed for standard 3.0-inch diameter springs
- Adjustable crossover for True Dual-Rate spring performance
- Sealed, coated, and booted oversized Gimbal Lock Bearings for silent, precise shock orientation
- JL-specific spring rates and shock valving for each available powertrain
- RT4 Long Arm geometry for maximum articulation, control, and stability
- Bolt-on 1/4-inch laser-cut reinforced coilover brackets
- Refreshed Speed Bumps — 4X bottoming resistance, silent operation
- Race-inspired performance for improved dynamic roll control and low-speed damping
- Dramatic improvement in both on-road comfort and off-road capability
Installation Notes:
- Requires wheels with 4.75-inch backspacing or less — or 1.75-inch Wheel Offset Adapter Pair (PN 1057000 x2, sold separately) for use with stock wheels
- Requires front driveline double cardan upgrade due to increased suspension travel
- Requires cutting/removal of factory control arm bracketry and spring buckets
- Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards
- Some light inner fender liner trimming required
- Alignment required after installation
- Not compatible with 2-door JL Wrangler models
SKU Variants — Front JL Rubicon Axle / Rear HD 3.25-inch Diameter Axle:
- 1357011 — 3.0L Diesel
- 1357012 — 2.0L e-Torque
- 1357013 — 3.6L e-Torque
- 1357014 — 2.0L / 3.6L
- 1357015 — 4XE
- 1357016 — 392
For front and rear JL Rubicon axle configurations, see SKUs 1357001–1357006. For dual HD 3.25-inch axle configurations, see SKUs 1357021–1357026.
