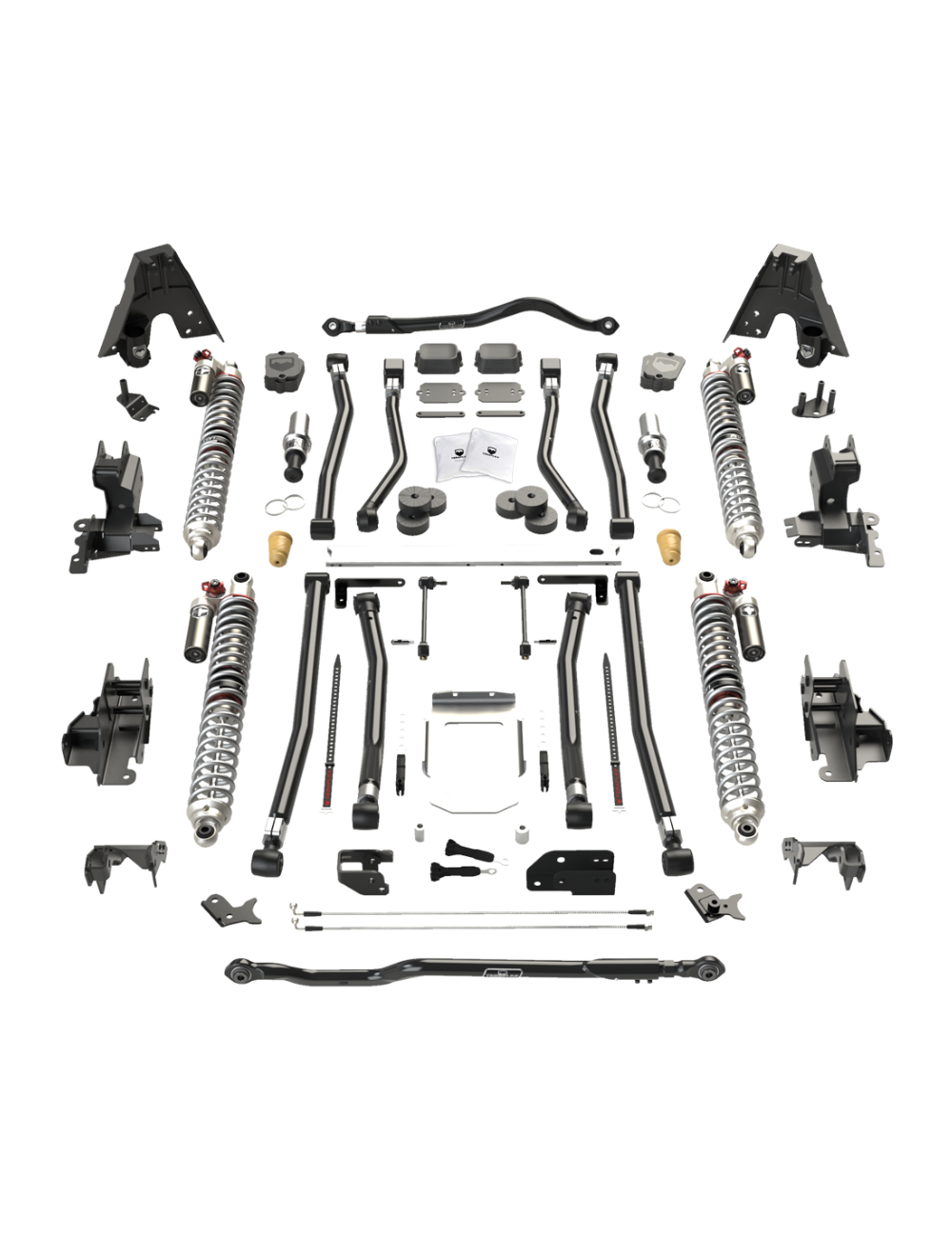

The TeraFlex Alpine RT Coilover Suspension System delivers race-inspired performance engineered specifically for 2018+ Jeep Wrangler JL Rubicon 4-door models. This comprehensive 4.5-inch lift system features Falcon 3.3 series coilover shocks with Quick Adjust tuning, providing exceptional on-road comfort and off-road capability while maintaining whisper-quiet operation.
Engineered for Silent Performance:
Unlike generic coilover systems plagued by spring twang, zipping, slider slap, and squeaking bushings, the Alpine RT system utilizes sealed gimbal bearing shock mounts and hard-anodized shock bodies with sealed, lubricated spring sliders. Roller-bearing spring seats ensure completely silent spring movement during compression, extension, and twisting.
Key Features:
- 13-inch stroke front and rear coilover shocks with Falcon 3.3 series Quick Adjust tuning
- 4.5-inch lift height with +/- 1.25-inch adjustability using quick-adjust snap rings
- Adjustable crossover for true dual-rate spring performance
- RT4 Long Arm suspension system for superior control, flex, and stability
- Refreshed speed bumps provide 4X the bottoming resistance
- Coated, booted, and sealed oversized gimbal lock bearings maintain shock orientation
- Bolt-on 1/4-inch laser-cut reinforced coilover brackets
- JL-specific spring rates and shock tuning optimized for 2.0L, 3.6L, and 392 engines
- Designed for standard 3.0-inch coil springs
- Race-inspired performance with improved dynamic roll control and low-speed damping
- Optimized fitment for unobstructed suspension travel and articulation
Axle Configuration:
This part number (1357004) is designed for vehicles with front JL Rubicon factory axle and rear JL Rubicon factory axle (44/44 configuration), compatible with 2.0L, 3.6L, and 392 powertrains without e-Torque.
Installation Requirements:
- Requires wheels with 4.75-inch backspacing or less, or 1.75-inch wheel offset adapters (TeraFlex #1057000 x 2, sold separately) for stock wheels
- Front driveline double cardon upgrade required due to increased suspension travel
- Requires cutting and removal of factory control arm brackets and spring buckets
- Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards
- Light inner fender liner trimming required
- Professional alignment required after installation
- Not compatible with 2-door Wrangler models
Related Part Numbers by Powertrain:
- 1357001 - 3.0L Diesel
- 1357002 - 2.0L e-Torque
- 1357003 - 3.6L e-Torque
- 1357004 - 2.0L/3.6L/392 (this part)
- 1357005 - 4XE Hybrid
TeraFlex offers additional configurations for HD 3.25-inch diameter aftermarket axles. Contact your retailer for part numbers 1357011-1357026 series for custom axle configurations.
