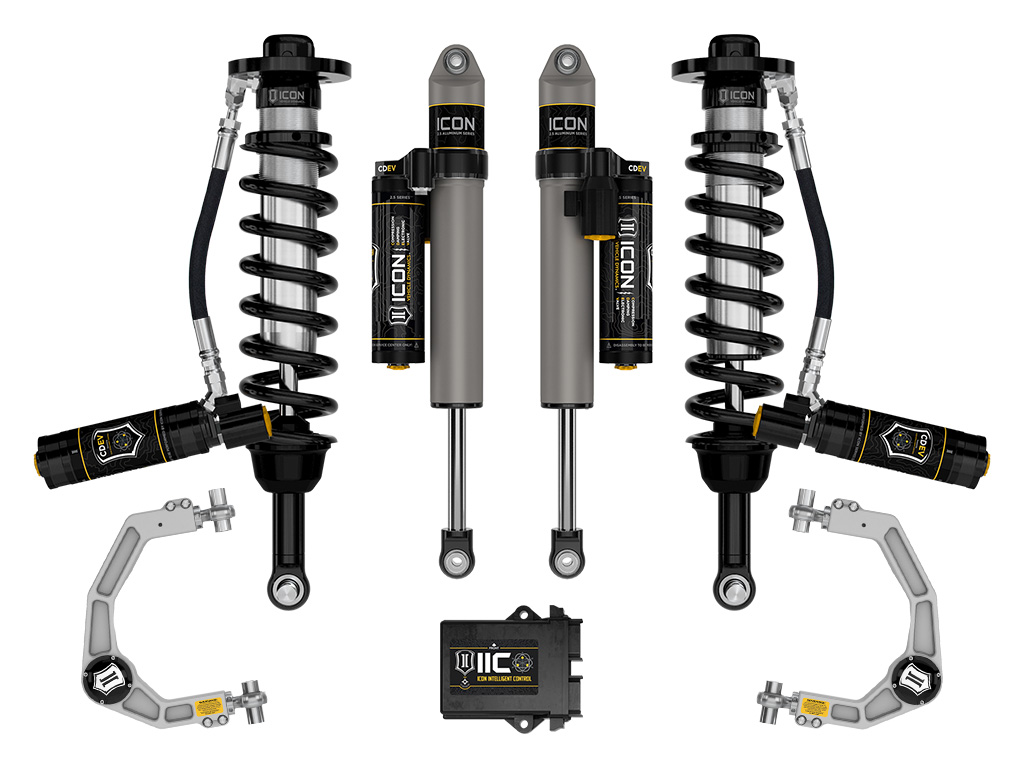

ICON Vehicle Dynamics K93165 Stage Suspension System Ford Tremor Lift Billet UCA - 5 2021-2023 F-150 2.5-3

The ICON Vehicle Dynamics Stage 5 Suspension System is engineered specifically for 2021-2023 Ford F-150 Tremor models, delivering maximum performance for serious drivers who demand superior on-road handling and off-road capability. This comprehensive system provides 2.5-3 inches of front lift height while increasing front wheel travel by 20% over stock for exceptional vehicle control in any terrain.

Key Features:

• 2.5 Series Front Coilovers: Tremor-specific length adjustable coilovers with remote reservoirs provide improved shock cooling and precise height adjustment from 2.5-3 inches of lift, enabling fitment of larger, more aggressive wheel and tire combinations
• Billet Aluminum Upper Control Arms: Feature ICON's patented Delta Joint PRO ball joints with 90 degrees of total articulation for superior strength, durability, and bind-free suspension movement through the complete range of travel
• CDEV Technology: Compression Damping Electronic Valve technology enables in-vehicle adjustment of compression damping settings and active control via ICON Intelligent Control (IIC) system
• Vehicle-Specific Tuning: Custom-tuned front and rear shocks with ICON-engineered coil springs deliver superior damping characteristics and balanced performance from front to rear
• 2.5 Aluminum Series Rear Shocks: CDEV-equipped piggyback reservoir shocks offer increased damping ability and heat dissipation for consistent performance
• ICON Intelligent Control (IIC): Wireless app-based control system reads terrain conditions and makes near-instant automatic adjustments at each individual shock without driver input

Delta Joint PRO Technology:

The included upper control arms feature ICON's innovative Delta Joint PRO, which combines factory-style durability with motorsports-level performance. This rebuildable, serviceable design uses a larger ball with 56% more bearing surface than standard Delta Joints, along with improved lubrication sealing for extended longevity. The chromoly ball and shaft feature a Rockwell C 55 hardened bearing surface, while replaceable graphite-impregnated sintered metal races provide a flawless metal-to-metal bearing interface. The Delta Joint PRO offers full 90-degree articulation range—a 14% improvement over the original Delta Joint—ensuring maximum bind-free suspension movement. The Delta Joint PRO design also provides on-vehicle caster and camber adjustability while maintaining factory alignment specification range.

This Stage 5 system is the ultimate choice for F-150 Tremor owners seeking to enhance both road manners and off-road capabilities with a complete, engineered suspension solution.
