ICON Vehicle Dynamics K93163 Stage Suspension System Lift Billet UCA - 3 2.5-3

The ICON Vehicle Dynamics K93163 Stage 3 Suspension System is engineered specifically for 2021-2023 Ford F-150 Tremor models, delivering exceptional on-road comfort and off-road capability with 2.5-3" of front lift height. This complete performance suspension upgrade is designed for serious drivers seeking maximum wheel travel, superior damping, and enhanced vehicle control in all conditions.

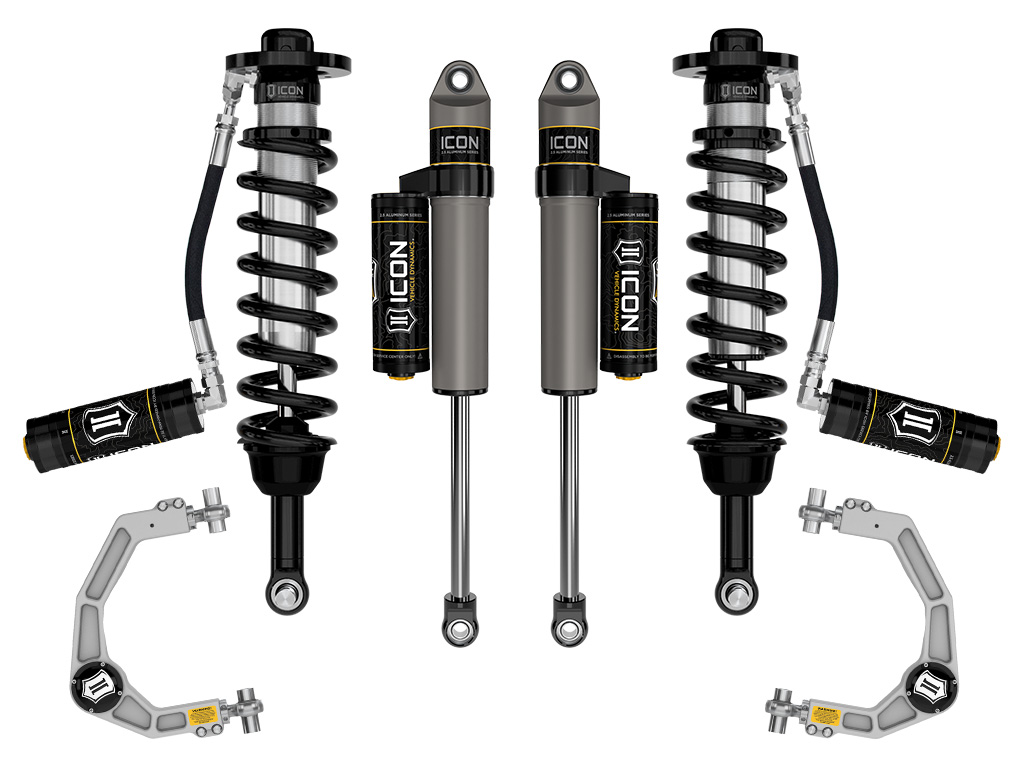

Complete Stage 3 System Includes:

• 2.5 Series front coilover shocks with remote reservoirs in F-150 Tremor-specific length
• Billet aluminum upper control arms with Delta Joint PRO ball joints
• 2.5 Aluminum Series piggyback reservoir rear shocks with vehicle-specific valving
• ICON-engineered coil springs optimized for superior vehicle feel through full range of travel

Key Performance Features:

• 20% increase in front wheel travel over stock for improved off-road performance
• Height-adjustable coilovers provide 2.5-3" front lift to accommodate larger, more aggressive wheel and tire combinations
• Remote reservoir design delivers exceptional shock cooling properties for sustained performance
• Corrosion-resistant CAD-plated coilover bodies with durable 7/8" shafts
• Balanced front-to-rear performance with vehicle-specific tuned damping

Delta Joint PRO Technology:

The included billet upper control arms feature ICON's patented Delta Joint PRO, an innovative suspension articulation joint that combines the durability of factory-style ball joints with motorsports-level performance. The Delta Joint PRO offers a full 90 degrees of articulation (14% improvement over the original Delta Joint) for maximum bind-free suspension movement. Built with a chromoly ball and shaft hardened to Rockwell C 55, with graphite-impregnated sintered metal races, this rebuildable design provides 56% more bearing surface than standard Delta Joints. The system includes on-vehicle caster and camber adjustability while maintaining factory alignment specification range, adding both strength and versatility.

This comprehensive Stage 3 system is the ideal choice for F-150 Tremor owners looking to significantly enhance their truck's capabilities both on pavement and in challenging off-road terrain.
