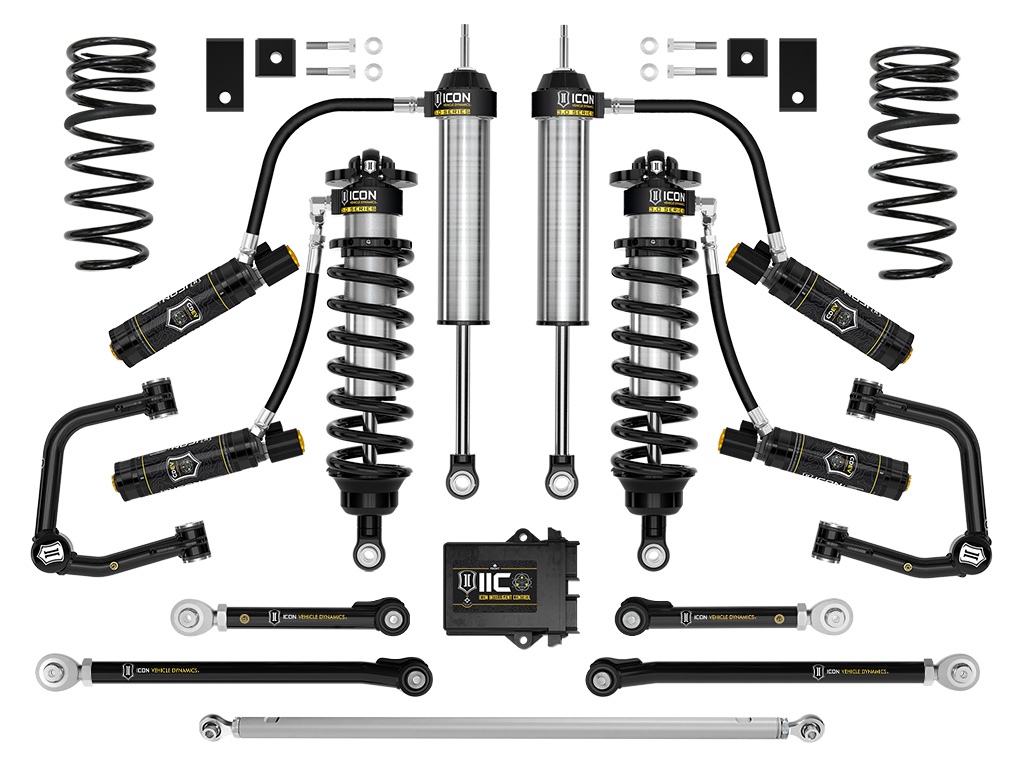

ICON Vehicle Dynamics K53254T Stage 4 3.0 Suspension System 3-4.25" Lift Kit for 2023-2024 Toyota Sequoia Tubular

The ICON Vehicle Dynamics Stage 4 3.0 complete suspension system transforms your 2023-2024 Toyota Sequoia with an advanced electronically-controlled lift kit engineered for superior on-road comfort and extreme off-road capability. This comprehensive system delivers 3-4.25" of adjustable front lift and 2" of rear lift, allowing fitment of up to 35" tires while maintaining proper alignment geometry and maximizing suspension travel.

ICON Intelligent Control (IIC) Technology:

The centerpiece of this system is the 3.0 Series CDEV front coilovers with remote reservoirs, featuring ICON's Intelligent Control system. Using onboard sensors to monitor G-forces and chassis movement, IIC actively makes near-instantaneous compression damping adjustments through Compression Damping Electronic Valves (CDEV) at each shock. Control the system wirelessly through the smartphone app—once configured, the system functions autonomously, reading terrain and adjusting damping on the fly without driver input.

Front Suspension Components:

• 3.0 Series remote reservoir coilovers with 50% more piston surface area in the ride zone and 100% more in the bump zone compared to 2.5 Series shocks
• Multi-stage hydraulic bump zone exponentially increases bottom-out resistance through the last 40% of travel
• Vehicle-specific shock length provides up to 40% increase in travel over stock for maximum wheel articulation
• Tubular upper control arms with corrected geometry, built-in additional caster, and improved component clearance
• Serviceable and rebuildable ICON Delta Joint PRO ball joints eliminate bind through full suspension travel
• Sway bar drop brackets minimize link bind and allow full range of wheel travel

Rear Suspension Components:

• 3.0 Series remote reservoir shocks with CDEV for active compression damping adjustment, paired perfectly with front coilovers for balanced vehicle control
• Dual-rate coil springs with softer ride height rate and firmer overload rate for on-road comfort with excellent bottoming resistance
• Tubular steel adjustable upper and lower links made from 1-3/4" x .313" wall DOM tubing with multi-stage black powder coat finish
• PTFE-lined FK rod ends for increased articulation, reduced deflection, and adjustable link arm length
• Multi-durometer bushings for noise-free operation and maximum angularity without periodic greasing
• Billet aluminum adjustable track bar with double adjuster rod end threads for easy on-vehicle fine-tuning to center the axle

Performance Benefits:

• Increased internal oil volume and external surface area with remote reservoirs provide superior heat dissipation and resistance to shock fade
• Improved alignment specifications and suspension geometry for better drivability
• Enhanced rear articulation for extreme off-road terrain
• Level stance front to rear with proper tire clearance for aggressive wheel and tire combinations
• Active electronic damping adjustment from soft to hard for adaptable performance

This complete Stage 4 system is vehicle-specific for the 2023-2024 Toyota Sequoia and represents ICON's most advanced suspension package, building upon the Stage 1/2 systems with the upgrade to electronically-controlled 3.0 Series technology throughout. The result is a transformed driving experience with unmatched capability both on the highway and in the most demanding off-road conditions.
