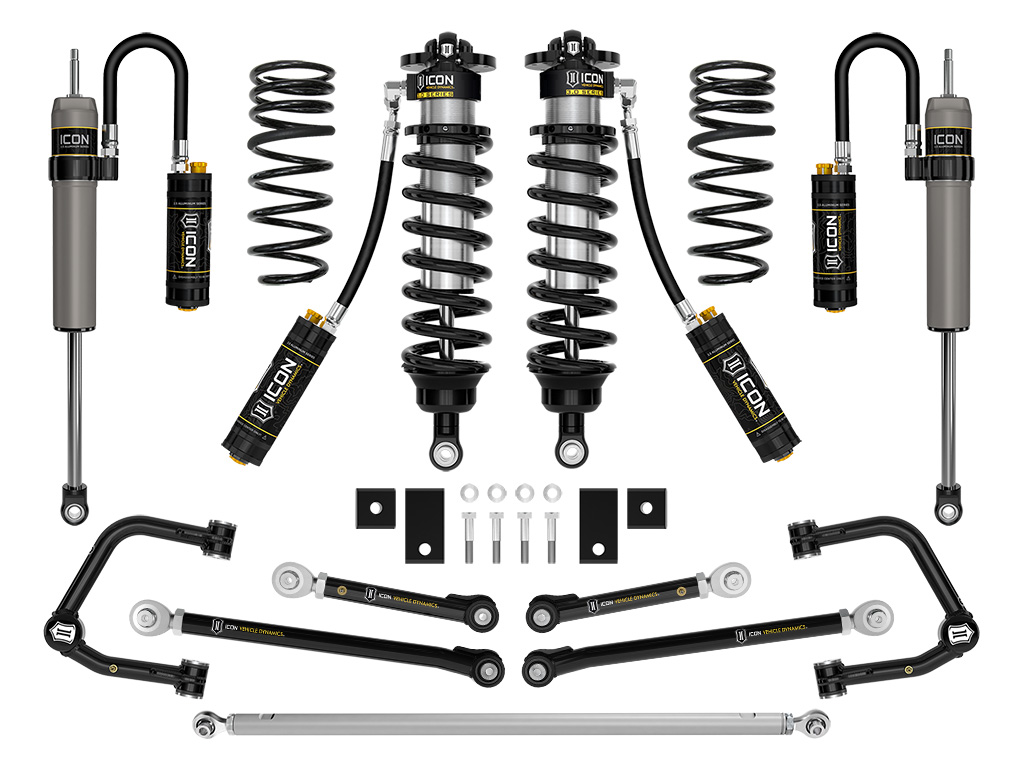

ICON Vehicle Dynamics K53251T Stage Suspension System Toyota Sequoia Lift Tubular - 1 3.0 2023-2024 3-4.25

(2023 Toyota Sequoia)

Manufacturer

Part Number

K53251T
Black Friday Price

$7,162.87

$8,426.90 Save 15%

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 1 3.0 Complete Suspension System transforms your 2023-2024 Toyota Sequoia with premium off-road capability and adjustable performance. This comprehensive system delivers 3-4.25 inches of adjustable front lift and 2 inches of rear lift, providing a level stance and clearance for up to 35-inch tires while maintaining excellent on-road manners.

Key Components and Features:

  • 3.0 Series Front Coilovers: Remote reservoir design with CDC (Compression Damping Control) valves offering 10 levels of adjustable compression damping. Features 50% more piston surface area in the ride zone and 100% more in the bump zone compared to 2.5 Series shocks, plus up to 40% more travel than stock
  • Tubular Upper Control Arms: High-strength construction with patented Delta Joint Pro (U.S. Pat. 10,731,700) providing 90 degrees of total articulation, improved caster, corrected geometry, and eliminated binding through full suspension travel
  • 2.5 Aluminum Series Rear Shocks: Remote reservoir design with CDC valves for 10 compression settings, internal bump zone providing 20% additional damping force, and superior heat dissipation during heavy use
  • Billet Aluminum Rear Upper/Lower Links: CNC-machined from 6061 aluminum with anodized finish, featuring PTFE-lined FK rod ends for increased articulation and reduced deflection
  • Tubular Steel Adjustable Track Bar: Double adjuster design allows on-vehicle fine-tuning to properly center the rear axle after lifting
  • Dual-Rate Rear Coil Springs: Progressive spring design provides comfortable on-road ride quality with firm overload rate for excellent bottoming resistance and load-carrying capability
  • Front Sway Bar Drop Kit: Minimizes sway bar link bind throughout suspension travel, allowing components to move freely without overstressing OE parts

Performance Benefits:

  • Multi-stage hydraulic bump zone exponentially increases bottom-out resistance through the last 40% of shock travel for superior control over harsh terrain
  • Remote reservoirs on front and rear shocks maintain consistent damping performance and cooler operating temperatures during extended off-road use
  • Vehicle-specific valving and geometry deliver balanced control front-to-rear for confident handling both on and off-road
  • Serviceable and rebuildable Delta Joint Pro eliminates the need for replacement ball joints
  • Multi-durometer bushings provide quiet operation with maximum angularity and no maintenance required

This complete bolt-on system is engineered specifically for the 2023-2024 Toyota Sequoia platform, ensuring proper fitment and optimal performance. The combination of adjustable damping, increased suspension travel, corrected geometry, and premium components makes this Stage 1 system ideal for enthusiasts seeking serious off-road capability without sacrificing daily drivability.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
