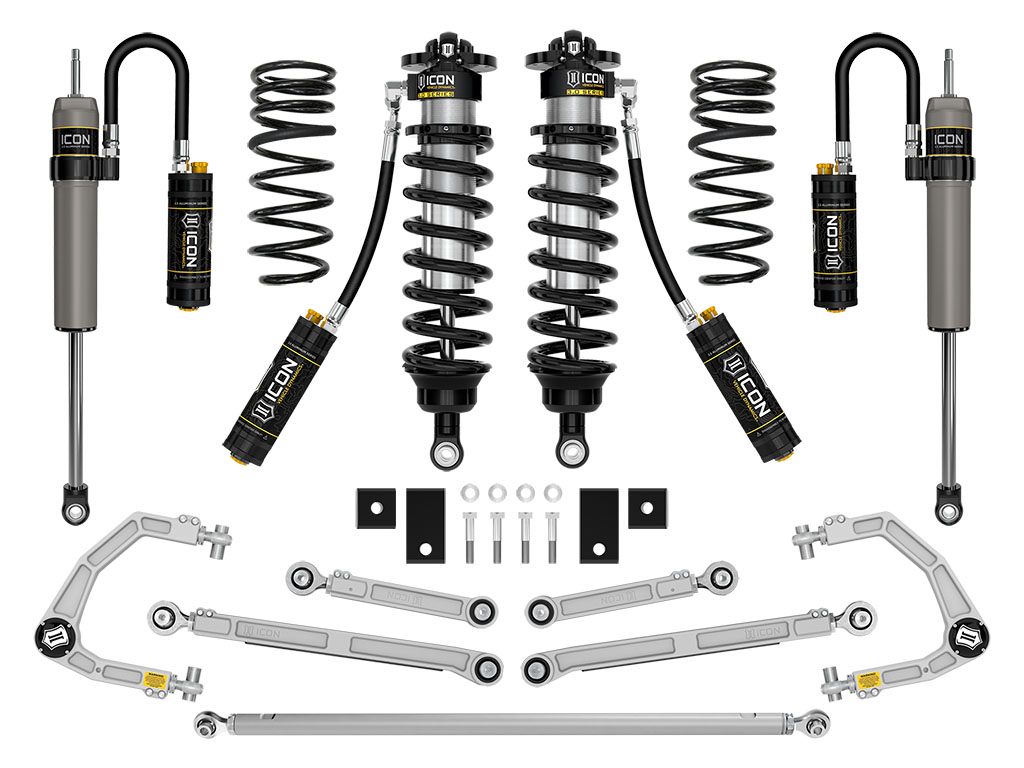

The ICON Vehicle Dynamics Stage 1 3.0 Complete Suspension System transforms your 2023-2024 Toyota Sequoia with a premium lift kit engineered for serious off-road performance and improved on-road handling. This comprehensive system delivers 3-4.25" of adjustable front lift and 2" of rear lift, providing the clearance needed for up to 35" tires while maintaining proper vehicle geometry and alignment.
3.0 Series Front Coilovers with Remote Reservoirs:
The heart of this system features vehicle-specific 3.0 Series coilovers that offer 50% more piston surface area in the ride zone compared to 2.5 Series shocks, and 100% more in the bump zone. These remote reservoir coilovers provide superior damping performance and enhanced shock cooling during demanding use. The multi-stage hydraulic bump zone exponentially increases bottom-out resistance through the last 40% of travel, keeping your Sequoia composed over harsh terrain. External CDC (Compression Damping Control) valves provide 10 levels of adjustable compression damping, allowing you to fine-tune performance for different driving conditions. Vehicle-specific shock length maximizes travel up to 40% over stock for exceptional control and stability.
Billet Aluminum Front Upper Control Arms:
CNC-machined billet aluminum upper control arms correct front-end geometry while providing on-vehicle caster and camber adjustment for optimized alignment and tire wear. These UCAs feature the patented Delta Joint Pro (U.S. Patent 10,731,700) with an impressive 90 degrees of total articulation, eliminating bind through full suspension travel. The serviceable and rebuildable design ensures long-term durability and performance.
Rear Suspension Components:
- 2.5 Aluminum Series remote reservoir rear shocks with CDC valves offering 10 compression damping settings
- Dual-rate rear coil springs combining soft ride-height spring rates with firmer overload rates for comfort and bottoming resistance
- Billet aluminum adjustable upper and lower link arms with PTFE-lined FK rod ends for increased articulation and reduced deflection
- Adjustable billet aluminum track bar with double adjuster design for easy on-vehicle length adjustment to center the rear axle
- Multi-durometer bushings providing quiet operation and maximum angularity without maintenance
Additional Components:
- Front sway bar drop brackets minimize link bind and allow full suspension travel without overstressing OE components
- All billet aluminum components are CNC-machined from 6061 aluminum and anodized for corrosion resistance
This complete Stage 1 system delivers balanced front-to-rear vehicle control with adjustable damping at all four corners, corrected suspension geometry, and the lift height needed for aggressive tire fitments. The combination of advanced damping technology, precision-engineered components, and vehicle-specific design makes this the ultimate suspension upgrade for the 2023-2024 Toyota Sequoia.
