ICON Vehicle Dynamics K53240 Stage Suspension System Lift Kit Toyota Sequoia - 10 3-4.5 2023-2024

(2023 Toyota Sequoia)

Manufacturer

Part Number

K53240
Black Friday Price

$7,678.77

$9,033.85 Save 15%

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

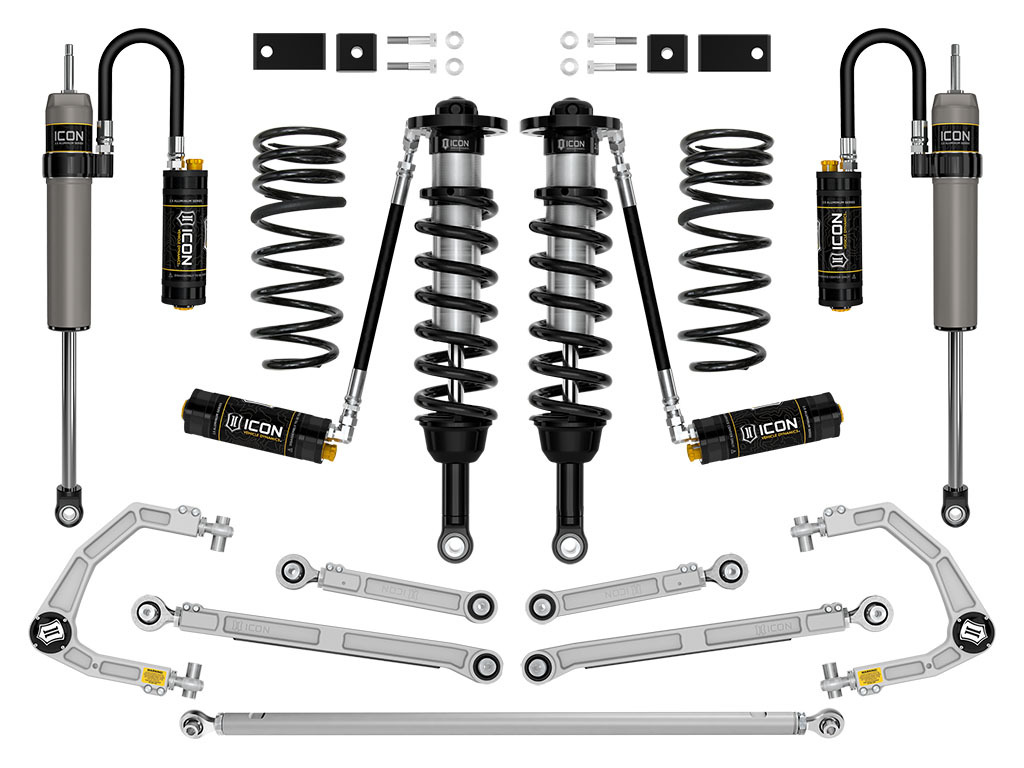

The ICON Vehicle Dynamics Stage 10 complete suspension system is a premium, vehicle-specific upgrade designed exclusively for the 2023-2024 Toyota Sequoia. This comprehensive system delivers exceptional on-road comfort and off-road capability with adjustable lift heights from 3-4.5" in the front and 3" in the rear, allowing fitment of up to 35" tires while maintaining optimal geometry and drivability.

Front Suspension Components:

  • 2.5 Series front coilovers with remote reservoirs and CDC Valves providing 10 levels of adjustable compression damping
  • Up to 40% increase in wheel travel over stock components
  • Billet aluminum upper control arms with patented Delta Joint Pro (U.S. Pat. 10,731,700) offering 90 degrees of total articulation
  • On-vehicle caster and camber adjustment for precise alignment
  • Front sway bar drop brackets to minimize binding and maximize suspension travel

Rear Suspension Components:

  • 2.5 Aluminum Series rear shocks with remote reservoirs and CDC Valves for adjustable damping
  • Dual-rate coil springs providing 3" of rear lift with soft initial rate and firmer overload rate
  • CNC machined billet aluminum adjustable upper and lower rear links with PTFE-lined FK rod ends
  • Adjustable rear track bar for proper axle centering
  • Multi-durometer bushings for quiet operation and maximum articulation

Key Performance Features:

  • Remote reservoirs on front and rear shocks increase oil capacity and heat dissipation to prevent damper fade
  • Unique internal Bump Zone creates 20% additional damping force to control hard bottom-outs
  • Double adjuster system allows easy on-vehicle length adjustment without disassembly
  • All billet components CNC machined from 6061 aluminum and anodized for corrosion resistance
  • Serviceable and rebuildable Delta Joint Pro eliminates suspension bind through full travel range

This Stage 10 system represents ICON's most comprehensive suspension package for the 2023-2024 Sequoia, building upon the Stage 9 platform with the addition of premium billet rear links and adjustable track bar. Vehicle-specific shock lengths and valving ensure optimal performance, while the fully adjustable design allows fine-tuning for any driving condition from daily commuting to aggressive off-road use.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2023 Toyota Sequoia
