ICON Vehicle Dynamics K53239 Stage Suspension System Lift Kit Toyota Sequoia - 9 3-4.5 2023-2024

The ICON Vehicle Dynamics Stage 9 Complete Suspension System transforms your 2023-2024 Toyota Sequoia with a comprehensive upgrade featuring adjustable 3-4.5" front lift, remote reservoir coilovers, and Compression Damping Control Valves (CDCV) for precision tuning. This vehicle-specific system delivers exceptional on-road comfort and extreme off-road capability while accommodating up to 35" tires with a level stance.

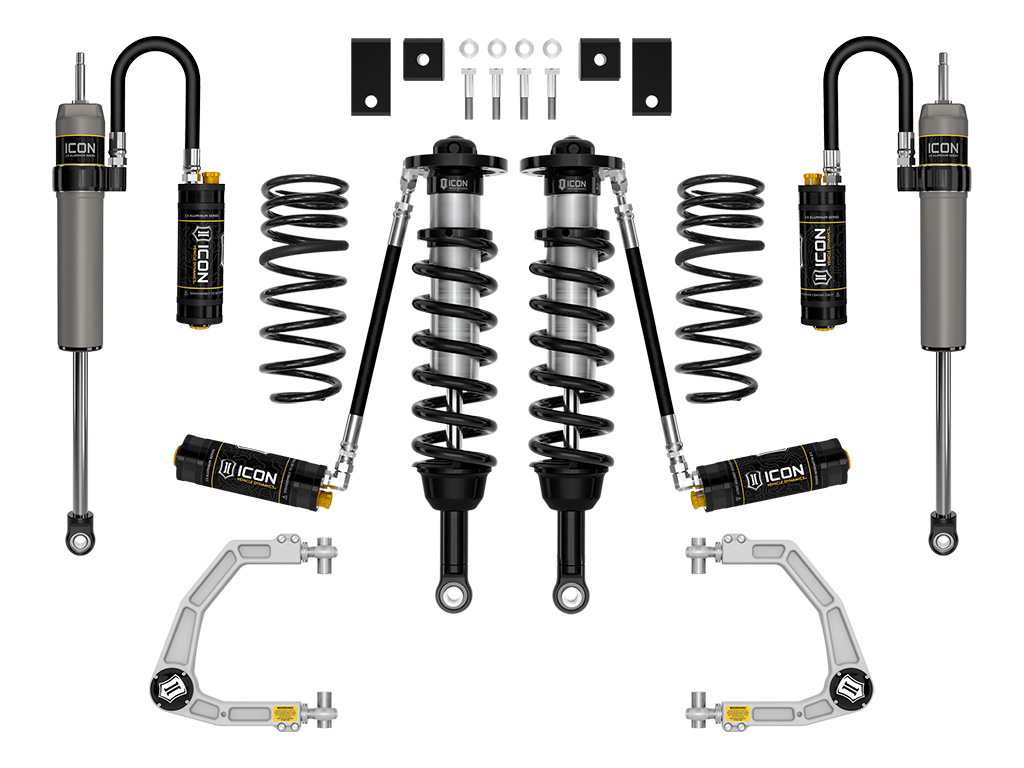

Front Suspension Components:

• 2.5 Series coilovers with remote reservoirs and CDCV for 10 levels of compression damping adjustment
• Up to 40% more wheel travel compared to stock with larger 2.5" shock body and increased piston area
• Adjustable lift height from 3-4.5" for custom stance and tire clearance
• Billet aluminum upper control arms with on-vehicle caster and camber adjustment
• Patented Delta Joint PRO ball joints (U.S. Pat. 10,731,700) with 90 degrees of total articulation
• Sway bar drop brackets to minimize link bind and maximize suspension travel

Rear Suspension Components:

• 2.5 Aluminum Series remote reservoir shocks with CDCV and 10-position compression damping adjustment
• Dual-rate coil springs providing 3" of lift for a level front-to-rear stance
• Internal Bump Zone technology adds 20% damping force to control hard bottom-outs
• Enhanced heat dissipation for consistent performance during extended off-road use

Key Performance Features:

• CDCV technology allows precise tuning for street driving, rock crawling, or high-speed desert running
• Remote reservoirs increase shock oil volume and cooling surface area to prevent fade and cavitation
• Corrected front-end geometry improves handling and component clearance
• Serviceable and rebuildable Delta Joint PRO eliminates suspension bind through full travel range
• Balanced front-to-rear damping for superior vehicle control in all conditions

This complete bolt-on system provides everything needed to dramatically improve your Sequoia's suspension performance, from the billet upper control arms and coil springs to the advanced damping technology found in both front and rear shocks. The result is a suspension system that excels on the highway, conquers challenging terrain, and looks aggressive with larger wheel and tire combinations.
