ICON Vehicle Dynamics K53238T Stage 8 Suspension System 3-4.5" Lift Kit Tubular for 2023-2024 Toyota Sequoia

The ICON Vehicle Dynamics Stage 8 complete suspension system transforms the 2023-2024 Toyota Sequoia with a comprehensive lift kit engineered for superior on-road comfort and aggressive off-road performance. This system delivers 3-4.5" of adjustable front lift and 3" of rear lift, providing a level stance and the capability to fit up to 35" tires while significantly improving suspension articulation, ground clearance, and overall vehicle control.

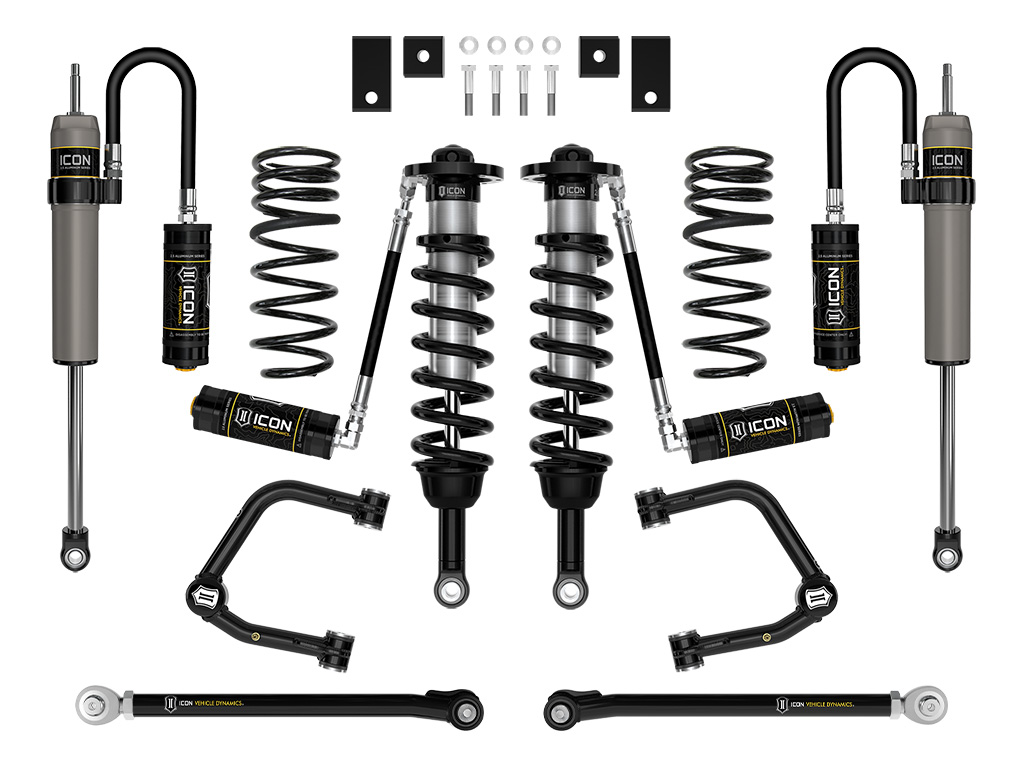

Front Suspension Components:

• 2.5 Series remote reservoir coilovers with vehicle-specific valving deliver up to 40% more travel than stock with adjustable lift height from 3-4.5"
• Remote reservoirs increase shock oil volume and heat dissipation surface area to prevent damper fade during hard use
• Tubular steel upper control arms with built-in additional caster for corrected front-end geometry and improved component clearance
• Patented Delta Joint PRO ball joint replacement (U.S. Pat. 10,731,700) with 90 degrees of total articulation eliminates bind through full suspension travel
• Sway bar drop brackets minimize link bind and allow full range of wheel travel

Rear Suspension Components:

• Billet aluminum adjustable rear lower links constructed from 1-3/4" x .313" wall DOM tubing with multi-stage black powder coat finish
• PTFE-lined FK rod ends provide increased articulation, reduced deflection, and length adjustability
• Multi-durometer bushings deliver quiet operation and maximum angularity without periodic maintenance
• Dual-rate coil springs combine softer ride height spring rates with firmer overload rates for on-road comfort and excellent bottoming resistance
• 2.5 Aluminum Series remote reservoir shocks with unique internal Bump Zone create 20% additional damping force to control hard bottom outs

This complete Stage 8 system is vehicle-specific for the 2023-2024 Toyota Sequoia, ensuring proper fitment and optimized performance. The combination of matched front coilovers and rear shocks delivers balanced vehicle control from front to rear for an exceptional driving experience on any terrain.
