ICON Vehicle Dynamics K53215T Stage Suspension System Lift for Toyota Tundra - 5 3.0 2-3.25 2022-2023

(2022-2023 Toyota Tundra)

Manufacturer

Part Number

K53215T
Black Friday Price

$8,245.56

$9,700.66 Save 15%

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

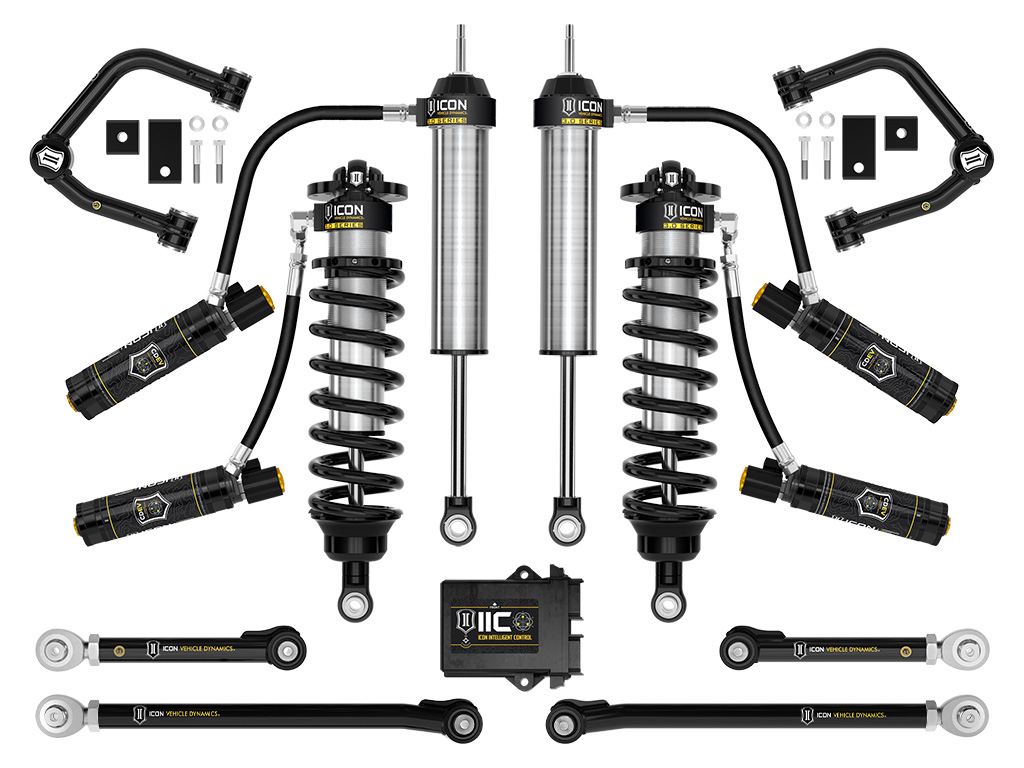

The ICON Vehicle Dynamics Stage 5 3.0 complete suspension system transforms the 2022-2023 Toyota Tundra with a comprehensive upgrade featuring 3.0 Series front coilovers with CDEV technology, 3.0 Series rear remote reservoir shocks, tubular upper control arms, rear link arms, and front sway bar drop brackets. This premium system delivers 2-3.25 inches of adjustable front lift height, allowing fitment of up to 35-inch tires while dramatically improving both on-road comfort and off-road capability.

ICON Intelligent Control (IIC) System:

The revolutionary IIC system uses onboard sensors to monitor G-forces and chassis movement, making near-instantaneous compression damping adjustments through the Compression Damping Electronic Valve (CDEV) at each shock. Control the system wirelessly through the IIC smartphone app, and once configured, the system functions autonomously without driver input, constantly adapting to terrain conditions.

3.0 Series Front Coilovers:

  • 50% more piston surface area in the ride zone compared to 2.5 Series shocks
  • 100% more surface area in the multi-stage hydraulic "Bump Zone"
  • Adjustable lift height from 2-3.25 inches over stock with included tubular UCAs
  • Up to 40% increase in travel over stock suspension
  • Vehicle-specific shock length maximizes travel potential
  • Multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance through the last 40% of travel

Tubular Upper Control Arms:

  • Corrects front-end geometry with built-in additional caster
  • Features the serviceable and rebuildable ICON Delta Joint PRO
  • Eliminates ball joint bind for full bump and droop travel
  • Improves suspension component clearance
  • Enhanced strength and durability over OE arms

Rear Suspension Components:

  • 3.0 Series remote reservoir shocks with CDEV for active compression damping adjustment
  • Tubular steel adjustable rear upper and lower links constructed from 1-3/4 x .313 wall DOM tubing
  • PTFE-lined FK rod ends for increased articulation and reduced deflection
  • Multi-durometer bushings for noise-free operation and maximum angularity
  • Multi-stage black powder coat finish for corrosion resistance
  • Maintenance-free design with no periodic greasing required

Additional Components:

  • Front sway bar drop brackets minimize link bind through suspension travel
  • Allows full range of wheel travel without overstressing OE components
  • Helps suspension move more freely for improved articulation

Performance Benefits:

  • Balanced vehicle control from front to rear
  • Increased internal oil volume and external surface area for superior heat dissipation
  • Resistance to shock fade under hard use
  • Outstanding off-road performance with smooth on-road ride quality
  • Increased stability and vehicle control at extremes of off-road use

Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
