ICON Vehicle Dynamics K53215 Stage Suspension System Toyota Tundra Lift Billet - 5 3.0 2022-2023 1.25-3.25

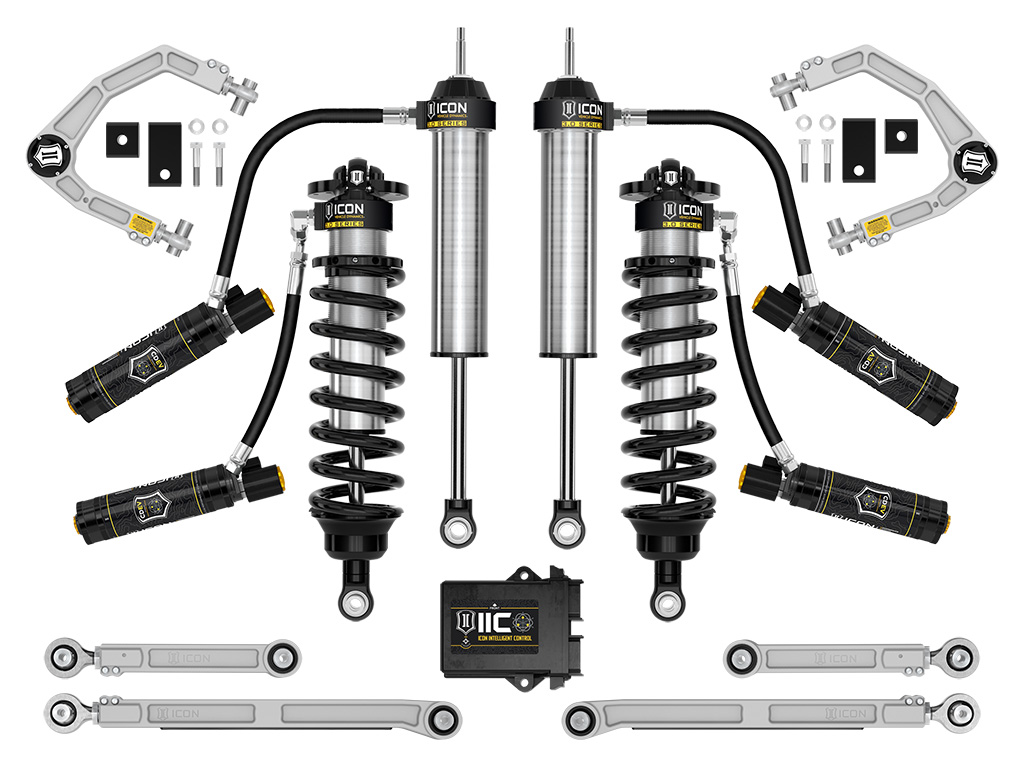

The ICON Vehicle Dynamics Stage 5 3.0 complete suspension system for the 2022-2023 Toyota Tundra delivers premium on- and off-road performance with intelligent electronic damping control. This comprehensive system includes 3.0 Series CDEV front coilovers, 3.0 Series rear remote reservoir shocks, billet aluminum upper control arms, adjustable rear links, and a front sway bar drop kit, providing adjustable lift from 1.25-3.25 inches and clearance for up to 35-inch tires.

ICON Intelligent Control (IIC) Technology:

The system features Compression Damping Electronic Valves (CDEV) at all four corners, working with ICON Intelligent Control to monitor G-forces and chassis movement through onboard sensors. The IIC system makes near-instantaneous compression damping adjustments based on terrain and user-defined settings, controlled wirelessly through a smartphone app. Once configured, the system operates automatically without driver input.

3.0 Series Front Coilovers:

• Vehicle-specific shock length maximizes travel up to 40% over stock
• 50% more piston surface area in ride zone, 100% more in Bump Zone compared to 2.5 Series

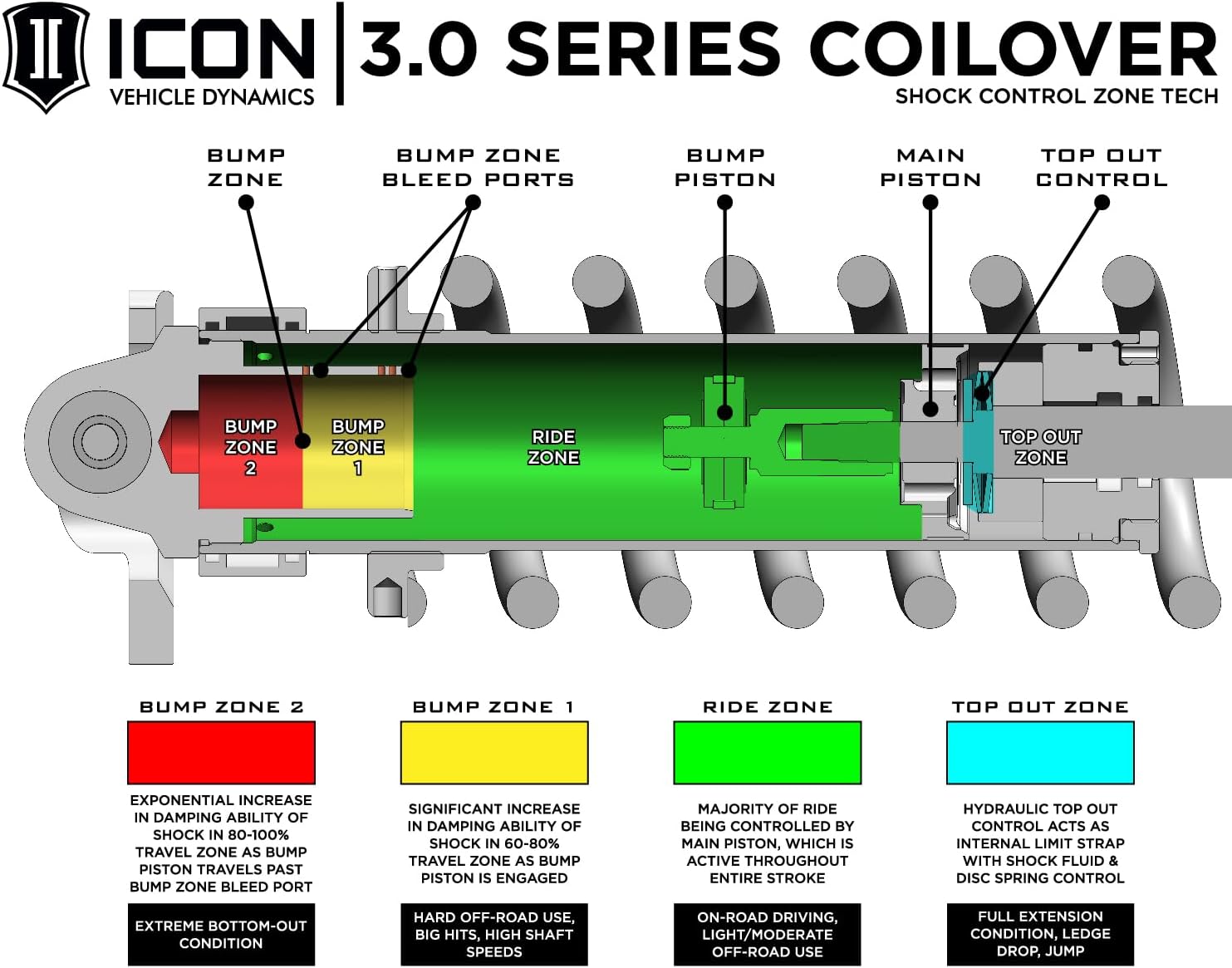

• Multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance through the last 40% of travel
• Adjustable lift height from 1.25-3.25 inches when paired with included billet UCAs
• Electronic compression damping adjustment via CDEV technology

Billet Aluminum Upper Control Arms:

CNC-machined billet aluminum construction provides exceptional strength and durability while correcting front-end geometry. Features on-vehicle caster and camber adjustment for optimized alignment and improved suspension component clearance. The serviceable and rebuildable ICON Delta Joint PRO replaces the OE ball joint, eliminating bind and allowing full bump and droop travel of the front suspension.

Adjustable Rear Upper and Lower Links:

Manufactured from CNC-machined 6061 aluminum with anodized finish for corrosion resistance. PTFE-lined FK rod ends deliver increased articulation and reduced deflection, while ICON's double adjuster system enables on-vehicle length adjustment. Multi-durometer bushings provide noise-free operation and maximum angularity without requiring periodic greasing or maintenance.

3.0 Series Rear Remote Reservoir Shocks:

• 50% more piston surface area compared to 2.5 Series for superior performance
• Increased internal oil volume and external surface area for enhanced heat dissipation
• Remote reservoirs resist shock fade under demanding conditions
• CDEV technology provides active compression damping adjustment
• Balanced performance with front coilovers for optimal vehicle control

Additional Components:

Front sway bar drop brackets minimize sway bar link bind throughout the suspension travel range, allowing the suspension to move freely and preventing overstress of OE components while maintaining full wheel travel capability.
