ICON Vehicle Dynamics K53214 Stage Suspension System Toyota Tundra Lift Billet - 4 3.0 22-23 1.25-3.25

(2022-2023 Toyota Tundra)

Manufacturer

Part Number

K53214
Black Friday Price

$9,397.91

$11,056.36 Save 15%

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 4 3.0 complete suspension system transforms the 2022-2023 Toyota Tundra with advanced active damping technology and premium billet components. This comprehensive system delivers adjustable lift heights from 1.25" to 3.25" while providing exceptional on-road comfort and extreme off-road capability through intelligent electronic control.

ICON Intelligent Control (IIC) Technology:

The system features ICON Intelligent Control, which uses onboard sensors to monitor G-forces and chassis movement in real-time. The system actively adjusts compression damping nearly instantaneously through Compression Damping Electronic Valves (CDEV) at each shock. Control everything wirelessly through the IIC smartphone app, and once configured, the system functions automatically without driver input.

3.0 Series Front Coilovers:

Vehicle-specific 3.0 Series remote reservoir coilovers provide 50% more piston surface area in the ride zone compared to 2.5 Series shocks, and 100% more in the Bump Zone. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance during the last 40% of travel, maintaining control during hard impacts. These coilovers offer up to 40% more travel than stock, supporting up to 35" tires with proper stance and fitment.

2.5 Aluminum Series Rear Shocks:

Remote reservoir rear shocks are specifically tuned for the Tundra platform and equipped with CDEV technology for active compression damping adjustment. The remote reservoirs maintain consistent damping performance by keeping operating temperatures lower during heavy use. The internal Bump Zone creates an additional 20% of damping force to control hard bottom-outs, providing balanced front-to-rear vehicle control.

Billet Aluminum Upper Control Arms:

CNC-machined billet aluminum UCAs correct front-end geometry while providing increased on-vehicle camber and caster adjustment. The all-new serviceable and rebuildable ICON Delta Joint PRO replaces the OE ball joint, allowing full bump and droop travel while eliminating bind. These arms improve suspension component clearance and enable the full lift range of the system.

Adjustable Rear Links:

Billet aluminum adjustable rear upper and lower links are CNC-machined from 6061 aluminum and anodized for corrosion resistance. PTFE-lined FK rod ends increase suspension articulation and reduce deflection, while ICON's double adjuster system enables on-vehicle length adjustment. Multi-durometer bushings provide noise-free operation and maximum angularity without requiring periodic greasing or maintenance.

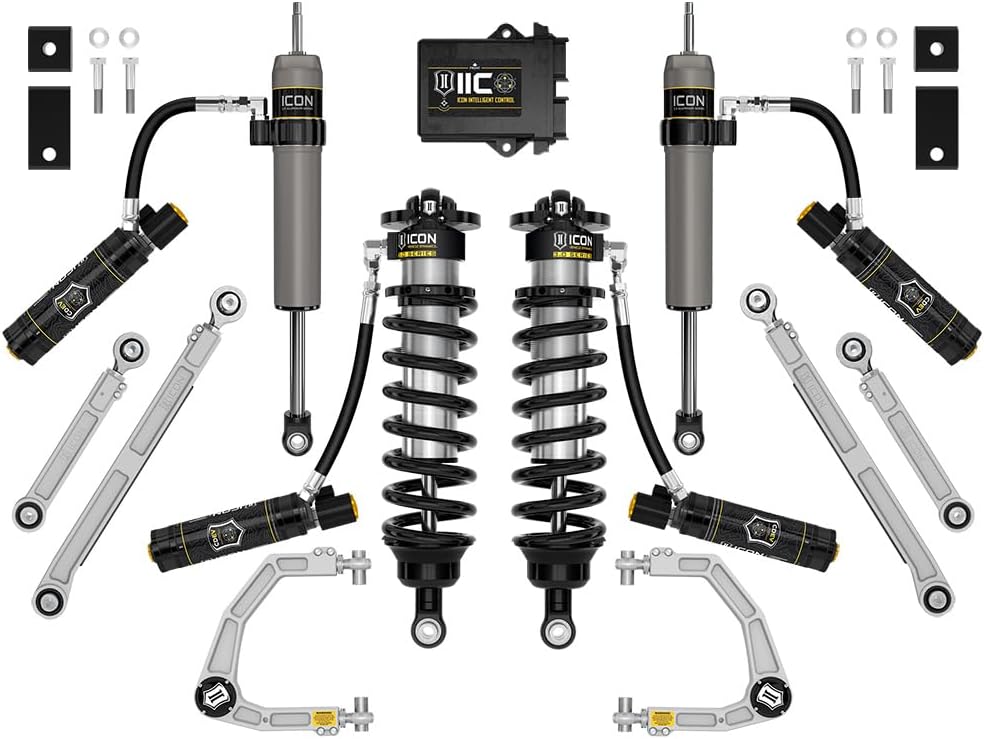

Complete System Includes:

  • 3.0 Series CDEV front coilovers with remote reservoirs and IIC compatibility
  • 2.5 Aluminum Series CDEV rear remote reservoir shocks
  • Billet aluminum front upper control arms with Delta Joint PRO
  • Billet aluminum adjustable rear upper and lower links
  • Front sway bar drop brackets to minimize bind and maximize travel
  • ICON Intelligent Control system with smartphone app control

This Stage 4 system delivers professional-grade suspension performance with the convenience of active electronic damping control, making it ideal for Tundra owners who demand the ultimate in versatility and capability both on and off the highway.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
