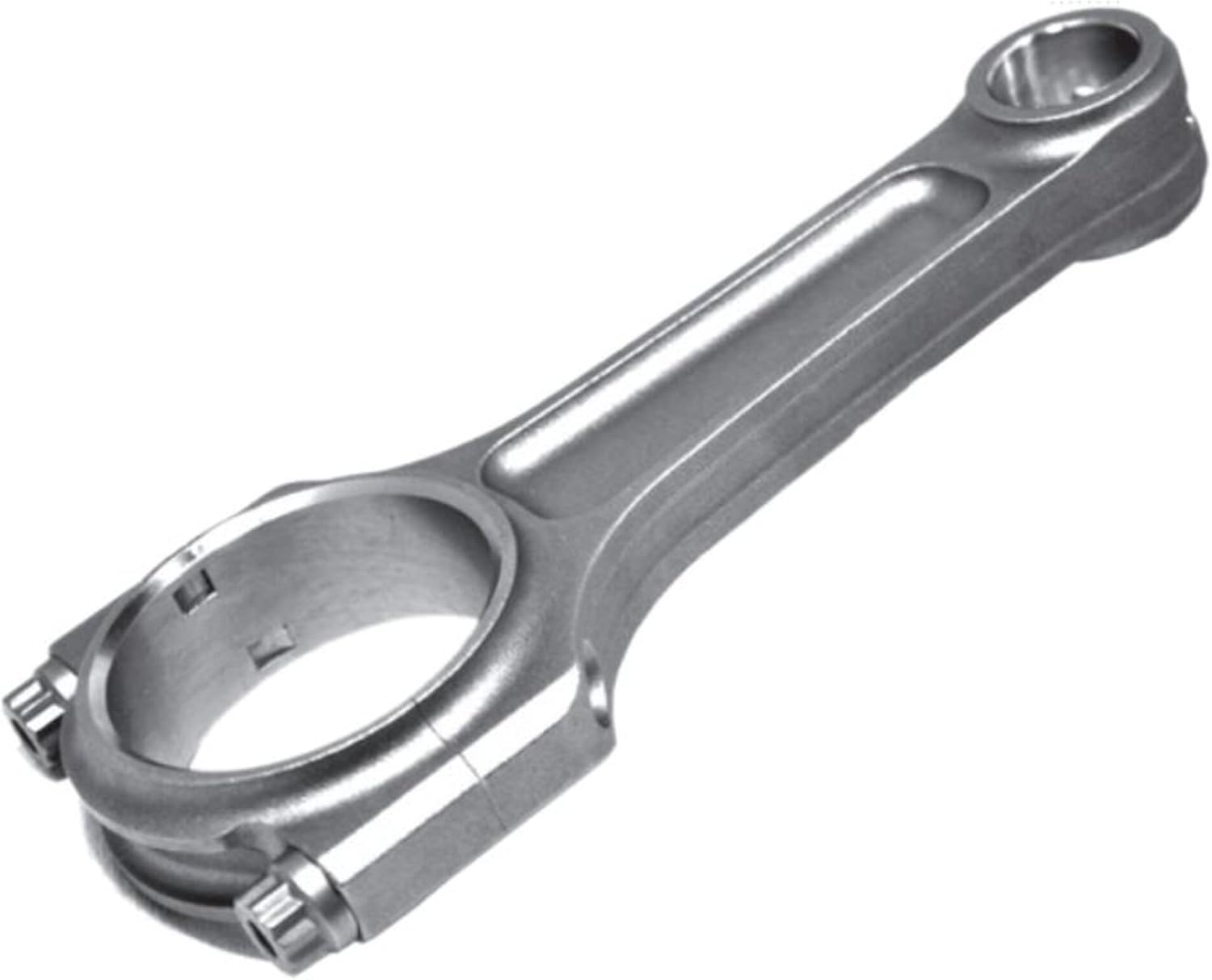

Manley 14402R6-1 Turbo Tuff I-Beam Connecting Rod Toyota 2JZ with ARP 625+ Bolts

The Manley 14402R6-1 is a single Pro Series Turbo Tuff I-Beam connecting rod designed specifically for Toyota 2JZ-GE and 2JZ-GTE engines. This premium connecting rod is forged from aircraft quality 4340 vacuum degassed steel, providing exceptional strength and durability for high-horsepower turbocharged applications.

Key Features:

• Forged from 4340 aircraft quality vacuum degassed material for maximum strength
• I-Beam Turbo Tuff design optimized for weight and rugged strength
• Equipped with 3/8" ARP Custom Age 625+ rod bolts for superior clamping force
• 5.886 inch center-to-center length (stock 2JZ specification)
• Fully machined in Manley's Lakewood, NJ facility to the highest standards
• Shot peened after machining and 100% magnafluxed for quality assurance
• Precision big and small end bores finished to ±.0002" tolerance

Quality Construction:

• Tapered I-Beam design with undercut beam profile for optimal strength-to-weight ratio
• Ribbed pin end surround helps maintain pin bore circularity under load
• Generous radius on cap corners with shallow bolt spotface improves fatigue strength
• Heat treated and stress relieved for dimensional stability

Manley Pro Series connecting rods are trusted by professional engine builders and tuners worldwide for building reliable high-performance 2JZ engines. The Turbo Tuff series is specifically engineered to handle extreme boost levels and power outputs in turbocharged applications. Recommended torque specification: 55 ft-lbs using ARP lubricant.

Note: This is sold as a single connecting rod (14402R6-1).
