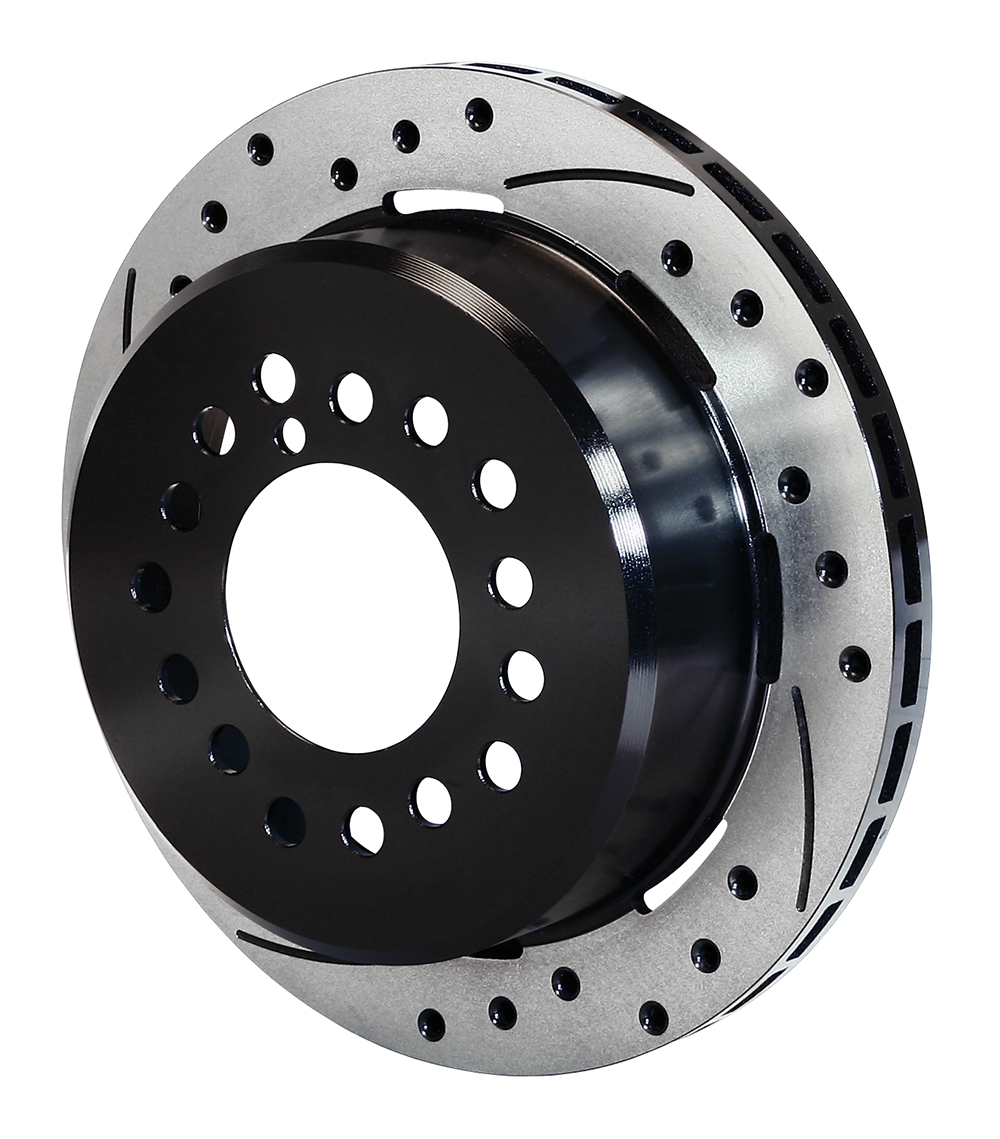

Wilwood 160-10051-BK SRP Drilled Slotted Brake Rotor Offset Black - 2.32

Manufacturer

Part Number

160-10051-BK
Sale Price

$345.09

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 160-10051-BK SRP (Spec-37) brake rotor delivers high-performance stopping power with a distinctive directional cross-drilled and face-slotted design. Engineered for custom, show, and high-performance sport driving applications, this rotor combines aggressive aesthetics with functional performance enhancements.

Key Features:

  • Directional cross-drilled and face-slotted pattern for improved heat dissipation and pad cleaning
  • 2.32-inch offset configuration for specific brake kit applications
  • Precision machined to less than 0.001" tolerance for flatness, parallelism, and radial run-out
  • Long grain carbon iron casting for superior strength and thermal stability
  • Black electro-coat finish provides corrosion resistance and show-quality appearance
  • Venting and cleaning action reduces pad glaze and minimizes irregular pad buildup

The cross-drilled and slotted design not only enhances the visual appeal but also improves braking performance by promoting consistent pad contact and reducing brake fade. The holes and slots help evacuate gases, dust, and debris from the rotor surface, resulting in smoother pedal engagement and more consistent pad response. Wilwood's precision manufacturing ensures optimal balance and minimal vibration for reliable, repeatable braking performance.

Products specifications

Balanced

No

Bedded

No

Clearance Inside Diameter (in.)

7.16

Diameter (in.)

12.19

Far Side Inside Diameter (in.)

7.24

Lug ID / Registration (in.)

2.78

Mount Side

L/H

Offset Dimension (in.)

2.32

Rotor Size

12.19x0.81in

Shoe Inside Dimension (in.)

7.24

Stud Diameter (in.)

.45/.48/.52

Style

SRP Drilled & Slotted

Surface Finish

Black Electro Coat

Type

SRP-BLK

Vane Count

32 V

Weight(Lbs)

14.4

Wheel Bolt Circle (in.)

5 x 4.75

Width (in.)

0.81
