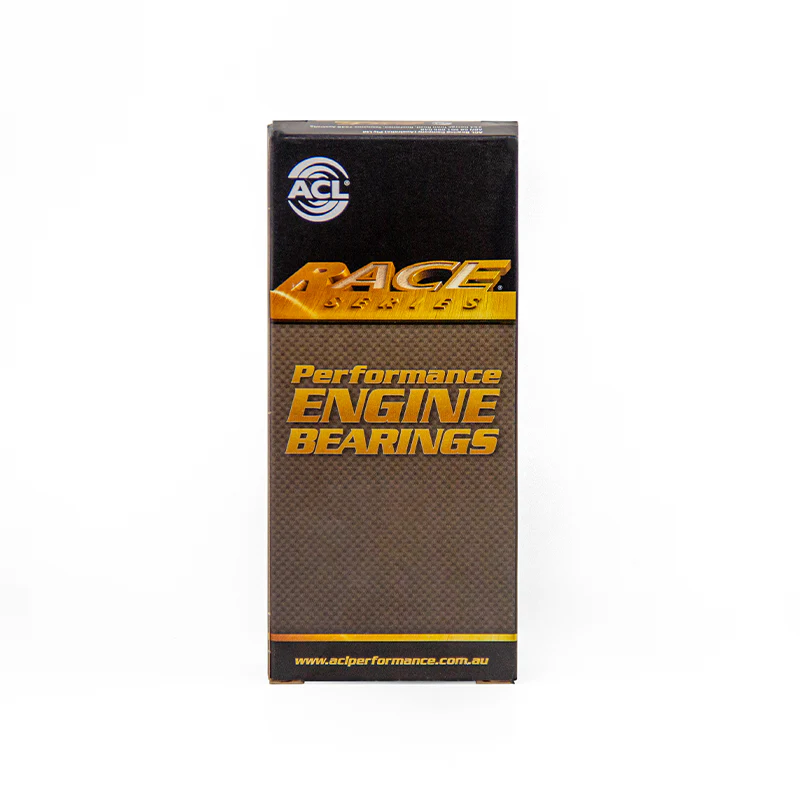

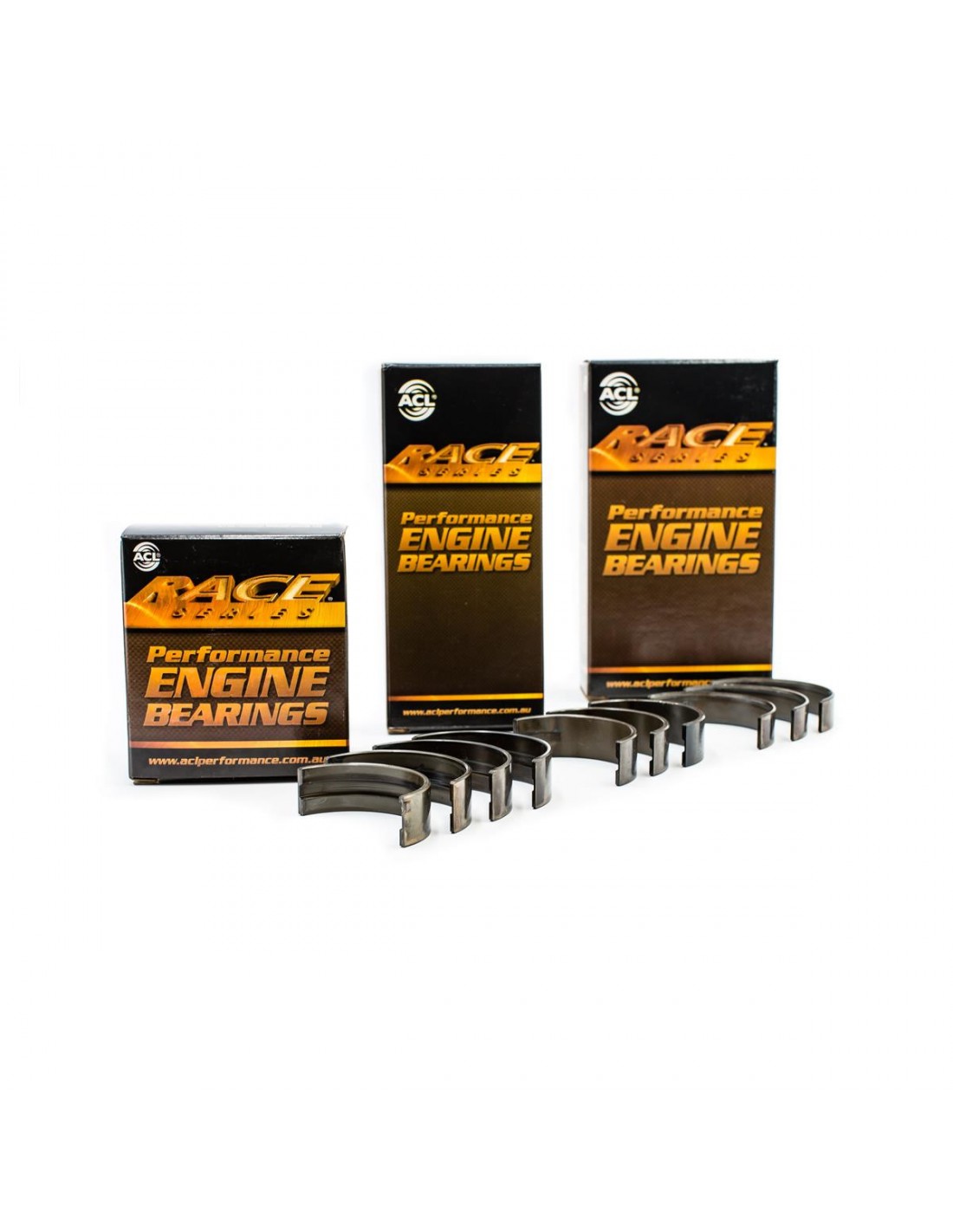

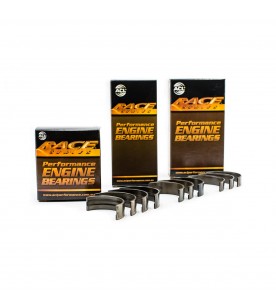

ACL Bearings 5M1644H-.025 Race Series Main Bearing Set Oversize - 025mm

Manufacturer

Part Number

5M1644H-.025
Black Friday Price

$92.40

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 5M1644H-.025 is a high-performance Race Series main bearing set designed for demanding motorsport and racing applications. This bearing set is engineered for VW and Audi 4-cylinder engines including 1.6L, 1.8L, and 2.0L variants, featuring a .025mm (.001 inch) oversize specification for precision engine rebuilds.

Advanced Trimetal Construction:

  • Trimetal design with lead, tin, copper, and nickel for superior strength and seizure resistance
  • High-strength overlay plate with reduced thickness for improved fatigue resistance
  • Hardened steel backing for enhanced support and retention under extreme conditions
  • Constructed with F780 bearing material for race-grade performance

Race-Engineered Features:

  • Designed to withstand higher RPM conditions
  • Increased crush for improved bearing retention
  • Increased eccentricity to compensate for bore distortion at high RPM
  • 3/4 grooved main bearings to optimize load carrying surface area and oil flow
  • Elimination of flash plating on bearing backs to improve heat transfer

ACL bearings feature improvements in material composition, dynamic thickness, heat conduction, oil grooves, and oil distribution, making them ideal for engine builds requiring performance beyond OEM specifications. The "H" designation indicates standard oil clearance in the ACL Race Series lineup.

Manufactured by ACL Bearing Company in Australia, these precision bearings are exported to more than 55 countries and deliver proven reliability on the street, strip, or racetrack.
