Davies Craig DC-0409 Temperature Sensor Inline Adapter Kit 35mm

The Davies Craig DC-0409 Temperature Sensor Inline Adapter Kit provides a clean, reliable solution for mounting temperature sensor probes directly into the radiator hose. No more squeezing the probe of a Mechanical Thermatic Switch or EWP Controller between the radiator inlet and hose — this kit installs inline for accurate, leak-free temperature sensing.

Key Features:

• Installs directly into the top radiator hose for precise coolant temperature measurement
• Fits radiator hose sizes from 32mm to 40mm (1¼" to 1½") in diameter using included rubber sleeves
• Adaptor ends are 35mm in size for hose fitting
• Accepts temperature sensors with 5mm (3/16") or 6mm (1/4") outside diameter
• Accommodates temperature gauge senders with 1/4" NPT thread
• Two 1/4" NPT ports allow fitment of both a sensor and an air bleed; includes a bung if only one port is needed
• Extra rubber sleeves included for fitment to various hose sizes

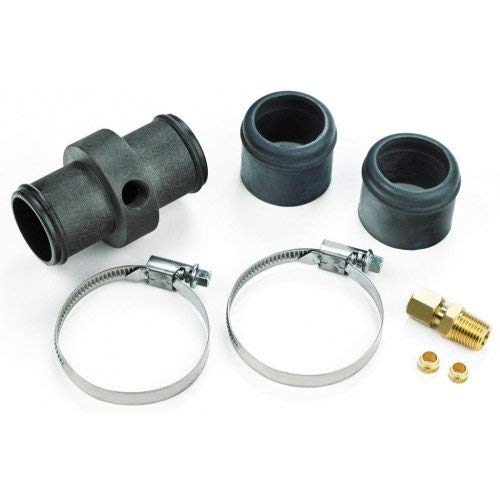

• Kit comes complete for a watertight, secure probe installation

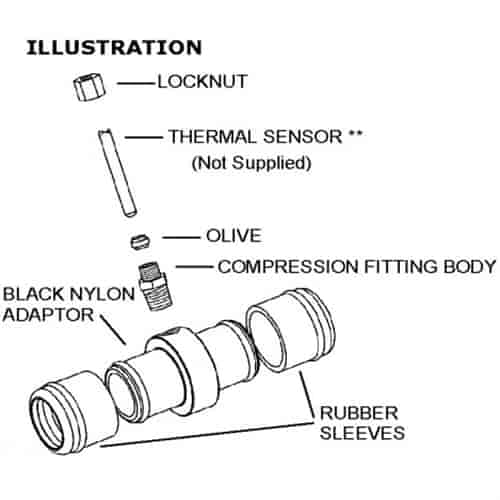

Installation Overview: Fit the probe into the compression fitting, remove approximately 17mm (2/3") of radiator hose, fit the adaptor between each hose section, and secure with hose clamps.

Compatibility Notes:

• Use the included 6mm olive for Davies Craig Thermal Switches Part #0400, #0401, and #0404
• Use the included 5mm olive for #0444 and #0455 sensors
• Designed as an accessory for Davies Craig Thermatic® Switches: #0401, #0404, #0444, and #0455
